Quick Details
-
Coil Weight (T):
-
25
-
Leveling Precision(±mm/m):
-
0.5 ±mm/m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HRF
-
Voltage:
-
450v
-
Rated Power:
-
300kw
-
Dimension(L*W*H):
-
28mx8mx2m
-
Weight:
-
5000
-
Year:
-
2020
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Cut to length Machine
-
Coil thickness:
-
0.5mm~3mm
-
Control System:
-
PLC Automatic
-
Decoiler:
-
Hydraulic
-
Function:
-
Metal Processing
-
Material:
-
Steel
-
Cutting length:
-
500mm---4000mm
-
Total power:
-
120kw
-
name:
-
cut to length roll forming machine
Quick Details
-
Cutting Width (mm):
-
1000 - 6000 mm
-
Material Thickness(mm):
-
0.5 - 3 mm
-
Cutting Speed(m/min):
-
1 - 110 m/min
-
Coil Weight (T):
-
25
-
Leveling Precision(±mm/m):
-
0.5 ±mm/m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HRF
-
Voltage:
-
450v
-
Rated Power:
-
300kw
-
Dimension(L*W*H):
-
28mx8mx2m
-
Weight:
-
5000
-
Year:
-
2020
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Cut to length Machine
-
Coil thickness:
-
0.5mm~3mm
-
Control System:
-
PLC Automatic
-
Decoiler:
-
Hydraulic
-
Function:
-
Metal Processing
-
Material:
-
Steel
-
Cutting length:
-
500mm---4000mm
-
Total power:
-
120kw
-
name:
-
cut to length roll forming machine
This series line is used for HR coil(0.5mm-28mm) with different specifications, through uncoiling-leveling-cut to length to flattened plate as needed length.

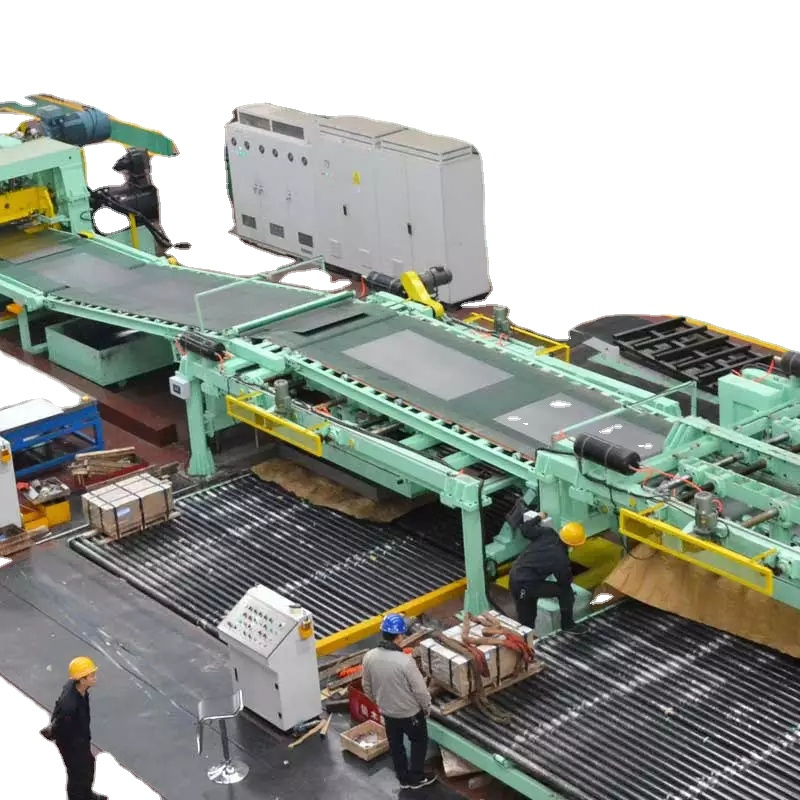

Composed of coil car, double support uncoiler, hydraulic pressing and guiding, shovel head, pre-leveler, finish leveler, cut to length machine, stacker, accompany electric control system, hydraulic system, etc. as well as pendulum middle plate, steering device.
|
Type
|
3×1600
|
6×2000
|
8×2000
|
10×2200
|
12×2200
|
16×2200
|
20×2500
|
25×2500
|
|
Thickness Range(mm) |
0.3-3
|
1-6
|
2-8
|
2-10
|
3-12
|
4-16
|
6-20
|
8-25
|
|
Width Range(mm) |
1600
|
2000
|
2000
|
2200
|
2200
|
2200
|
2500
|
2500
|
|
Cutting Length(mm) |
300-4000
|
500-6000
|
600-8000
|
600-10000
|
800-12000
|
800-12000
|
800-12000
|
800-12000
|
|
Cutting precision(mm) |
±0.5
|
±0.5
|
±1
|
±1
|
±1
|
±1
|
±1
|
±1
|
|
Roller Numbers |
15
|
15
|
13
|
13
|
11
|
11
|
9
|
9
|
|
Roller Diameter(mm) |
Ф85
|
Ф140
|
Ф155
|
Ф160
|
Ф180
|
Ф200
|
Ф230
|
Ф260
|
|
Product Name
|
0.23~0.3)*1000mm Slitting machine
|
|
Condition
|
new
|
|
Size
|
25m*6m*2m
|
|
Color
|
customized
|
|
Purpose
|
Slitting coils
|
|
Package
|
Standard packing
|
|
MQQ
|
1 set
|
|
Delivery
|
80-100 days
|
|
Shipment
|
Shanghai port
|
|
Payment Mode
|
T/T, L/C
|
|
Payment Condition
|
30% deposit in advance. Balance paid by TT before shipping.
|
|
Supply Capacity
|
3 sets per year
|
