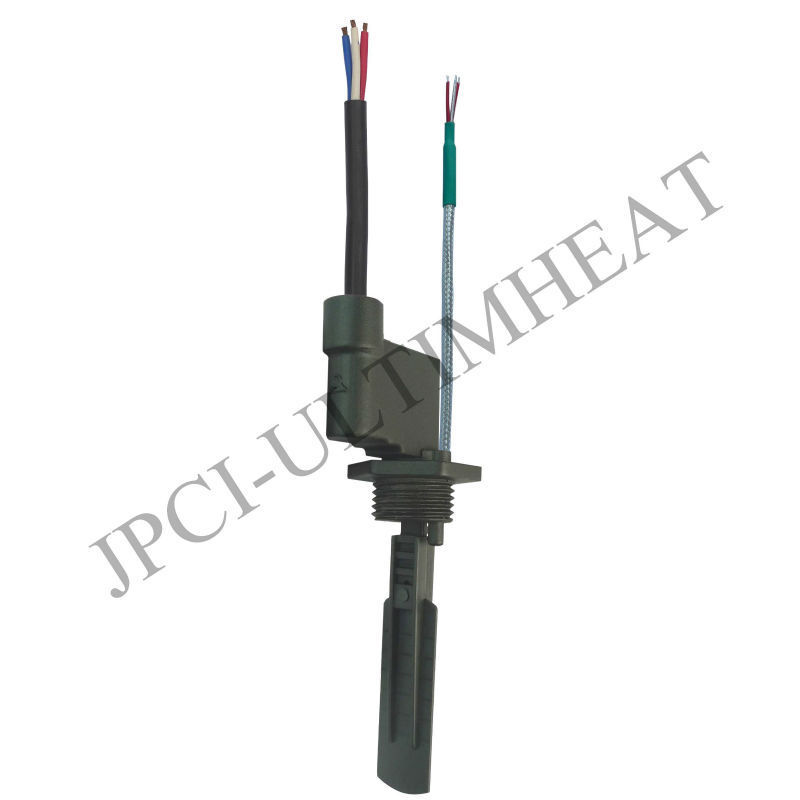

JPCI Type R1R Paddle flow switches with temperature sensor, micro-switch contact 1/2 male thread,

JPCI Type R1R Paddle flow switches with temperature sensor, micro-switch contact 1/2 male thread,

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $3.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: ULTIMHEAT, JPCI

Model Number:: R1R

Operating Temperature:: 5 to 80℃

Mounting:: 1/2' BSPP thread

contact:: micro switch

electrical rating:: 5A 250V

Certification:: N/A

Quick Details

Media Type:: Liquid

Flow Rate:: optional

Place of Origin:: Guangdong, China

Brand Name:: ULTIMHEAT, JPCI

Model Number:: R1R

Operating Temperature:: 5 to 80℃

Mounting:: 1/2' BSPP thread

contact:: micro switch

electrical rating:: 5A 250V

Certification:: N/A

Main features: Water flow detection on water pipes , with simultaneous water temperature measurement

Functional principle: Balanced paddle, perpendicular to the main flow, actuating a micro- switch. Flexible elastomeric gasket between paddle and electric switch. Temperature measurement is made by a plastic pocket located under the ½” thread

Main housing material: PPO, fiber glass reinforced, usable with potable water.

Paddle material: Polypropylene, resistant to ozone and water disinfection products

Paddle gasket: Santoprene, resistant to ozone and water disinfection products

Electrical rating: 5A resistive, 230V AC

Electric contact type: SPDT, open or close by flow rise

Liquids compatibility: For use with clean water and liquids without chemical incompatibility with PPO and Santoprene

Nominal pressure at 20°C: 1MPa (PN10)

Nominal diameter: Can be used on 32 to 63 mm internal diameter pipes

The paddle is cleavable and can be cut at various lengths upon pipe diameter. There are cutting lines numbered 1 to 9 every 5mm.

Recommended mounting position: Vertical, with paddle downside. Other positions are possible with a change in the calibration value related to the paddle weight. .

Water pipe connection: Male thread 1/2”(BSPP) and NBR gasket. Must be used on a BSPP ½” female fitting perpendicular to the main pipe.

Recommended torque: 7Nm

Liquids temperature range: 5 to 80°C

Ambient temperature range: 5 to 50°C

Ingress protection: IP65

Electrical connection:

Flow switch contact: 3 x 0.75 mm² cable, PVC insulation, style H05VVF.

- Pt100 temperature sensor: 3x0.22mm² cable, nickel plated braided FEP insulation

Flow and temperature connection cables length is the same

Installation instructions:

- Check carefully the paddle orientation: The arrow on housing must be exactly parallel to the pipe

- A5 mm minimum gap must be respected between end of the paddle and tube wall opposite to the 3/4” fitting.

- We recommend the use of nozzles of length less than or equal to 18mm between the gasket seat and the inside of the tube and with an inner diameter greater than or equal to 20mm, to avoid blocking of the pallet

Accessories: 1/2” female PVC saddles forDN40 to DN100 (OD) PVC pipes, and other fittings: see last section of this catalogue

Options: cable with connector or terminals, other cable length, paddle type B (see type R1B)
