Quick Details
-
IP Rating:
-
IP66
-
Beam Angle(°):
-
158
-
CRI (Ra>):
-
85
-
Lamp Luminous Flux(lm):
-
3600
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40~80
-
Color Rendering Index(Ra):
-
85
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
FW7600
-
Brand Name:
-
Shen Hai
-
Alias 1:
-
Explosion Proof Flashlight,Explosion Proof Hand Light
-
Alias 2:
-
Explosion Proof Torch Light,Explosion Proof Searching Light
-
Function:
-
Providing Mobile Lighting In Flammable And Explosive Places
-
Advantage:
-
Mini,Portable
-
Place Of Use:
-
Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations
-
Characteristic:
-
Waterproof,Dustproof And Corrosion-Resistant
-
Security Level:
-
IP66,WF2,Ex nC nR IIC T6 Gc
-
Shell Material:
-
Industrial Plastics
-
Applicable Scope:
-
Zone 1,Zone 2,Zone 21,Zone 22;IIA IIB IIC Explosive Gas Environments
-
Continuous Discharge:
-
LED Strong Light≥10H,LED Weak Light≥18H,HID Light Source≥14H
Quick Details
-
Color Temperature(CCT):
-
6000K (Daylight Alert)
-
Warranty(Year):
-
1
-
Power Supply:
-
DC
-
IP Rating:
-
IP66
-
Beam Angle(°):
-
158
-
CRI (Ra>):
-
85
-
Lamp Luminous Flux(lm):
-
3600
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40~80
-
Color Rendering Index(Ra):
-
85
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
FW7600
-
Brand Name:
-
Shen Hai
-
Alias 1:
-
Explosion Proof Flashlight,Explosion Proof Hand Light
-
Alias 2:
-
Explosion Proof Torch Light,Explosion Proof Searching Light
-
Function:
-
Providing Mobile Lighting In Flammable And Explosive Places
-
Advantage:
-
Mini,Portable
-
Place Of Use:
-
Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations
-
Characteristic:
-
Waterproof,Dustproof And Corrosion-Resistant
-
Security Level:
-
IP66,WF2,Ex nC nR IIC T6 Gc
-
Shell Material:
-
Industrial Plastics
-
Applicable Scope:
-
Zone 1,Zone 2,Zone 21,Zone 22;IIA IIB IIC Explosive Gas Environments
-
Continuous Discharge:
-
LED Strong Light≥10H,LED Weak Light≥18H,HID Light Source≥14H
Product Parameters
|
Battery
|
|
|
LED light source
|
|
|
|
|||||
|
Rated voltage
|
Rated capacity
|
Battery life
|
Rated power
|
Average service life
|
Continuous working time
|
|
|||||
|
|
|
|
|
|
Strong light
|
Working light
|
|||||
|
DC24V
|
20Ah
|
HID/LED
|
30/35
|
100000
|
≥10h
|
≥18h
|
|||||
|
Charging time
|
Anti corrosion grade
|
Explosion proof sign
|
Degree of protection
|
|
≤16h
|
WF2
|
Ex nC nR IIC T6 Gc
|
IP66
|

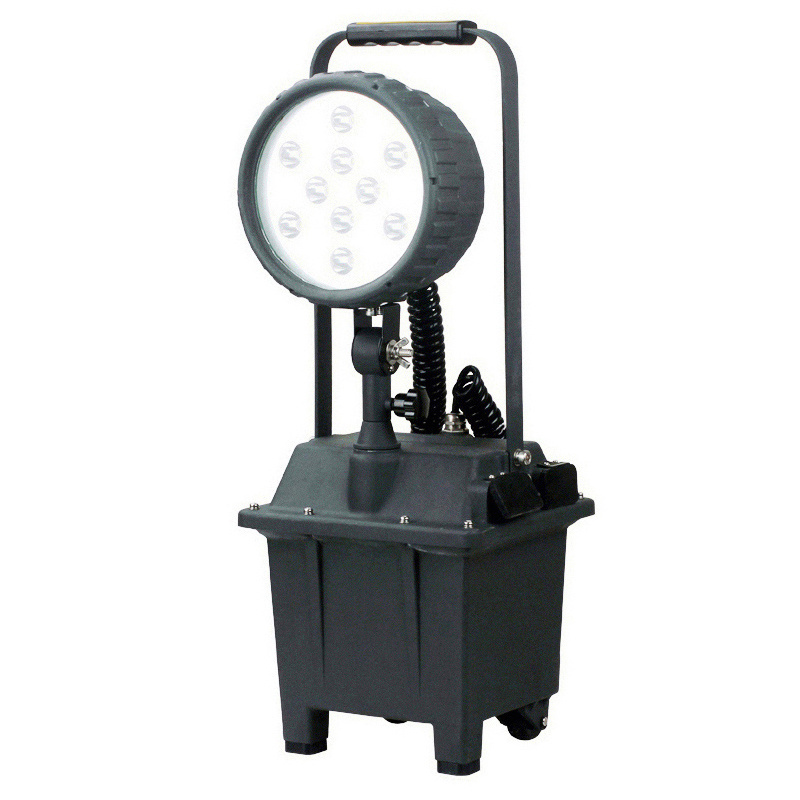

Product Description
1.This product has passed the explosion-proof certification of the national authority and is completely produced in accordance with the national explosion-proof standard. It has excellent explosion-proof effect and can work safely in various inflammable and explosive places.
2. Led and HID light sources have high luminous efficiency, high brightness, continuous discharge time greater than 12 hours, low calorific value, and are more safe and reliable.
3. The high-energy memoryless battery can be charged at any time. The storage capacity within two months after a charge is not less than 85% of the full capacity, and it is equipped with an over discharge protection circuit to extend the service life of the battery.
4. The lamp cap can be fixed on the lamp body or other supports for use, and can also be easily removed for hand-held use. It can also be fixed on the manual lifting frame for arbitrary lifting within the height range of 1.2-2.8 meters. The bottom of the lamp body is equipped with a convenient pulley, which can easily move the position of the lamp body on the ground.
5. Tully dense filling process design, which can work normally in rainstorm environment, and the special alloy shell can withstand strong collision and impact.
Suitable for Class II flammable and explosive places, providing mobile lighting for various on-site operations, accident repairs, abnormal situation handling, and other work sites in gas stations, railways, power plants, refineries, petrochemical and other units. (Zone 1, Zone 2)
