Quick Details
-
Panel Size:
-
300x60/600x60/900/1200x60mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
p1.25
-
Pixel Pitch:
-
1.25mm, p1.25
-
Product name:
-
store advertising p1.25 cob HD led shelf display screen
-
Screen Dimension:
-
900*60mm
-
Pixel pitch:
-
1.25mm
-
Refresh rate:
-
3840HZ
-
Brightness:
-
500CD/ square meter
-
Pannel size:
-
900*60MM
-
Module size:
-
150*56.25mm
-
Max power consumption:
-
130W/ cabinet
-
Item:
-
led shelf display
Quick Details
-
Application:
-
Indoor
-
Brand Name:
-
MDS
-
Color:
-
rgb
-
Panel Size:
-
300x60/600x60/900/1200x60mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
p1.25
-
Pixel Pitch:
-
1.25mm, p1.25
-
Product name:
-
store advertising p1.25 cob HD led shelf display screen
-
Screen Dimension:
-
900*60mm
-
Pixel pitch:
-
1.25mm
-
Refresh rate:
-
3840HZ
-
Brightness:
-
500CD/ square meter
-
Pannel size:
-
900*60MM
-
Module size:
-
150*56.25mm
-
Max power consumption:
-
130W/ cabinet
-
Item:
-
led shelf display
High resolution store advertising p1.25 cob HD led shelf display screen
Different sizes to meet supermarket needs
Specification
| Pixel Pitch(mm) | 1.25mm |
| LED Type | COB |
| LED Configuration | 1R1G1B |
| IC | ICN2065+ICN2018 |
| Refresh Rate(Hz) | ≥3840Hz |
| Module Resolution (PXxPX) | 120*45=5400 Dots |
| Module Size (mmxmm) | 150mm*56.25mm |
| Max Current | 6A |
| Input Voltage | 5V |
| Module max power consumption | 6.5W |
| Scanning mode | 1/45 |
| Brightness | 400~600 CD/m2 |
| Grey Scale | >14bit |
| Cabinet Resolution(PXxPX) | 480*45=10800 Dots |
| Cabinet Size | 300mm*60mm/600x60mm/900x60mm/900x180mm |
| Malfunction Dot Rate | <0.3% |
| Power Supply | DC5V |
| Working Temperature(℃) | -40-60℃ |
| Working Humidity | 10%-90% RH |
| Lifespan(H) | ≥50,000 |
Our advantage
Play in multiple ways
Features
- Angle is greater than 175 degrees, close to 180 degrees, and has more excellent optical diffuse color into light effect.
- 2cm super slim thickness
- modular design to match the standard supermaket shelf
- easy assemble
- support hot-plug
- support hook type installation
Smaller pixel pitch P1.25
Stronger protection: COB LED chips are welded on the PCB board directly, then do encapsulation. It has excellent protection capabilities.
Higher reliability and stability: COB technology has simpler process on material using and producing than SMD, so it has higher performance on heat dissipation to prolong life span.
Larger viewing angle: has larger viewing angle and is easy to control the loss of light refraction.

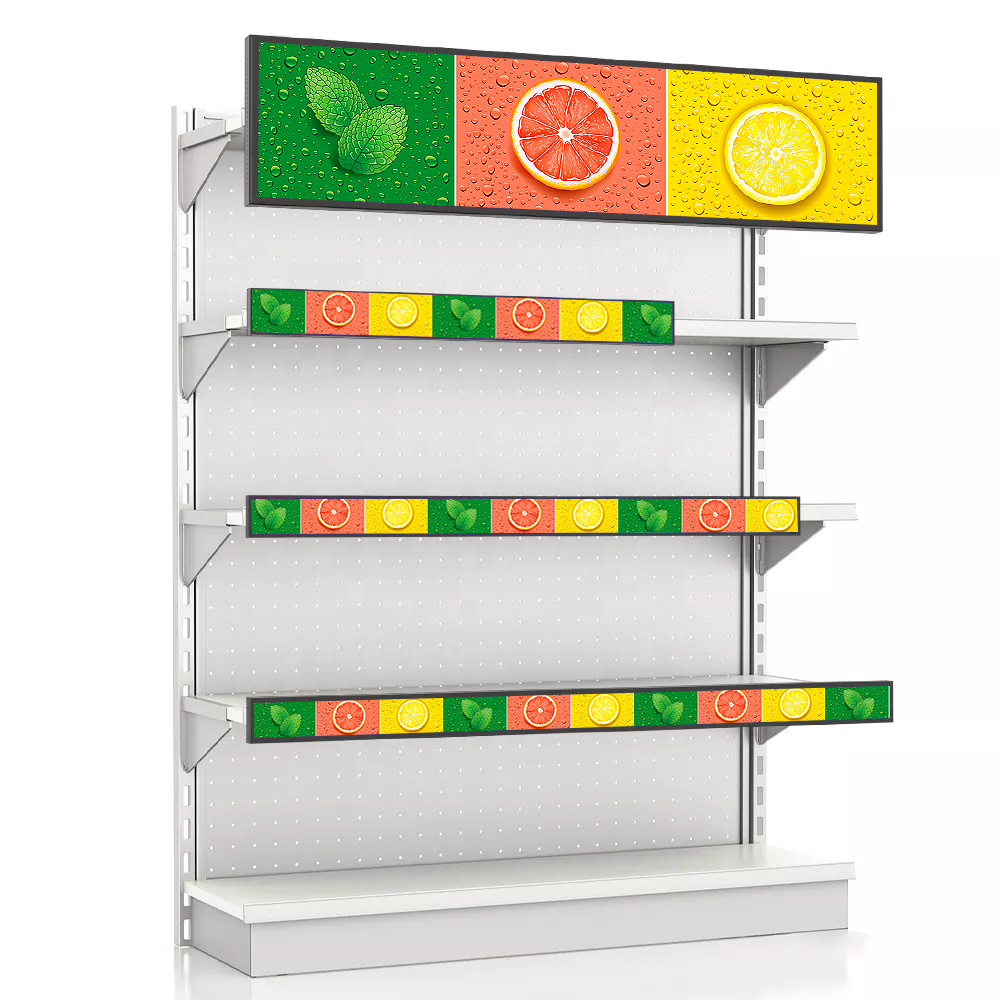

More pictures of our shelf led displays screen
300x60mm led shelf display 600x60mm led shelf display
