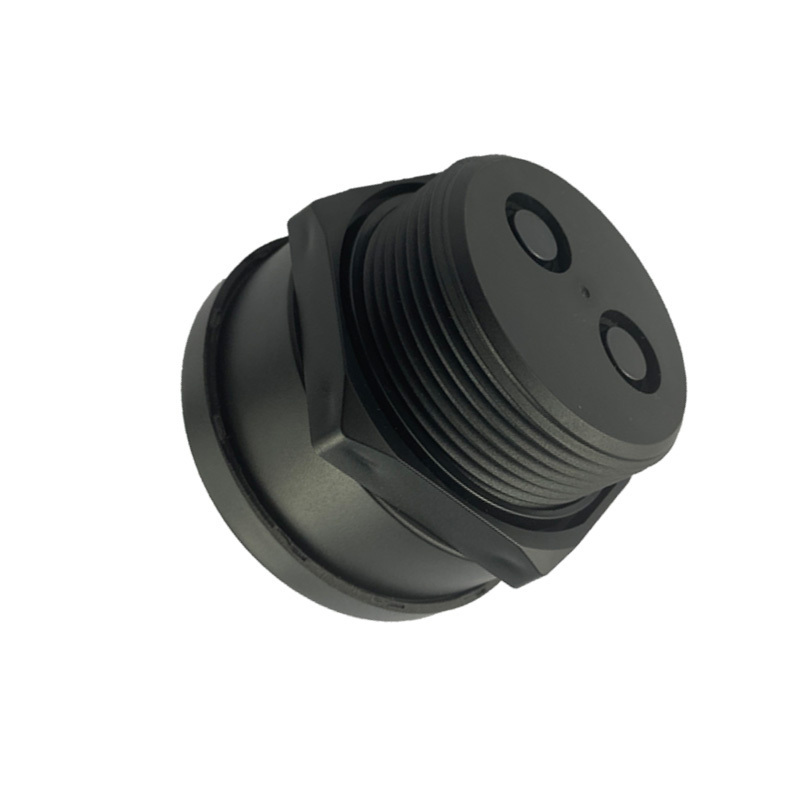

CSB-F2T65-2.5-2104 High sensitivity depth switch fill level sensor ultrasonic
CSB-F2T65-2.5-2104 High sensitivity depth switch fill level sensor ultrasonic
CSB-F2T65-2.5-2104 High sensitivity depth switch fill level sensor ultrasonic
CSB-F2T65-2.5-2104 High sensitivity depth switch fill level sensor ultrasonic
CSB-F2T65-2.5-2104 High sensitivity depth switch fill level sensor ultrasonic
CSB-F2T65-2.5-2104 High sensitivity depth switch fill level sensor ultrasonic
CSB-F2T65-2.5-2104 High sensitivity depth switch fill level sensor ultrasonic
CSB-F2T65-2.5-2104 High sensitivity depth switch fill level sensor ultrasonic

CSB-F2T65-2.5-2104 High sensitivity depth switch fill level sensor ultrasonic

FOB Reference Price: Get Latest Price
≥1 Pieces
US $22
≥100 Pieces
US $20
≥500 Pieces
US $18
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
EPT
Theory:
Radar
Output:
RS485
Description:
Radar water level sensor
Power Supply:
DC 4.5V-5.5V
Current:
Normal State<25mA,Resting State<1mA
Operating Temp:
-5℃~70℃
Communication:
RS485/UART
Measuring Range:
10cm ~2.5m
Detection cycle:
over 50ms
Measuring Accuracy:
10mm
Measurement Tolerance:
20℃ ±(1%Reading+10mm)
ESD Test:
CD±4kV,AD±8kV
Blind Zone:
under 10cm

Quick Details

Use:
Measure water level
Model Number:
CSB-F2T65-2.5-2104
Place of Origin:
Guangdong, China
Brand Name:
EPT
Theory:
Radar
Output:
RS485
Description:
Radar water level sensor
Power Supply:
DC 4.5V-5.5V
Current:
Normal State<25mA,Resting State<1mA
Operating Temp:
-5℃~70℃
Communication:
RS485/UART
Measuring Range:
10cm ~2.5m
Detection cycle:
over 50ms
Measuring Accuracy:
10mm
Measurement Tolerance:
20℃ ±(1%Reading+10mm)
ESD Test:
CD±4kV,AD±8kV
Blind Zone:
under 10cm
Product Description
Specification
item
value
Model Number
CSB-F2T65-2.5-2104
Type
Liquid Level Sensor
Place of Origin
China
Guangdong
Brand Name
EPT
Usage
Measure water level
Theory
Radar
Output
RS485
Description
Radar water level sensor
Power Supply
DC 4.5V-5.5V
Current
Normal State<25mA,Resting State<1mA
Operating Temp
-5℃~70℃
Communication
RS485/UART
Measuring Range
10cm ~2.5m
Detection cycle
over 50ms
Measuring Accuracy
10mm
Measurement Tolerance
20℃ ±(1%Reading+10mm)
ESD Test
CD±4kV,AD±8kV
Blind Zone
under 10cm
