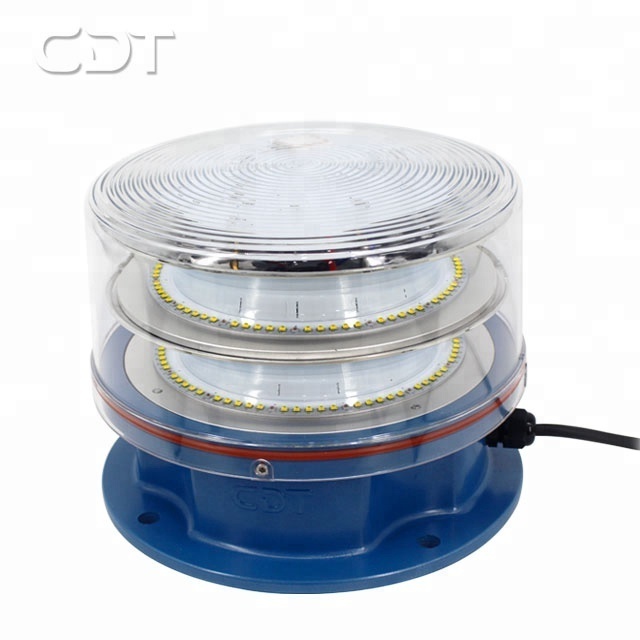

1; Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact resistance and fit the bad environment very well.
2; The aluminum alloy base with painting by spraying plastics, the structure is high strength, resistance to corrosion.
- Product Details
- {{item.text}}
Quick Details
-
Light Source:
-
LED
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Input Voltage(V):
-
AC220V
-
Lamp Luminous Flux(lm):
-
100%
-
Lamp Luminous Efficiency(lm/w):
-
1
-
CRI (Ra):
-
1
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
CK
-
Products name:
-
Strobe Aviation Obstruction lights
-
Operating Voltage:
-
AC220V
-
Power Consumption:
-
<20 w
-
Flashing frequency:
-
Flashing Light
-
Light Intensity:
-
Type B: 2000cd( 25%) Type A:2000~200000cd
-
Life Span:
-
100,000hours
-
Beam Angle:
-
360° horizontal,more than 3° vertical beam spread
-
Overall Size:
-
268*206mm
Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
Red and White
-
Lamp Body Material:
-
PC
-
Light Source:
-
LED
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Input Voltage(V):
-
AC220V
-
Lamp Luminous Flux(lm):
-
100%
-
Lamp Luminous Efficiency(lm/w):
-
1
-
CRI (Ra):
-
1
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
CK
-
Products name:
-
Strobe Aviation Obstruction lights
-
Operating Voltage:
-
AC220V
-
Power Consumption:
-
<20 w
-
Flashing frequency:
-
Flashing Light
-
Light Intensity:
-
Type B: 2000cd( 25%) Type A:2000~200000cd
-
Life Span:
-
100,000hours
-
Beam Angle:
-
360° horizontal,more than 3° vertical beam spread
-
Overall Size:
-
268*206mm
Specification
|
Item Name
|
Strobe Aviation Obstruction lights
|
|
Operation Voltage
|
AC220V (can be customized)
|
|
Power Consumption
|
≤30W
|
|
Flashing frequency
|
20~60times/min
|
|
Light intensity
|
Type B:2000cd Type A:2000cd~200000cd
|
|
Beam angle
|
360° horizontal,more than 3° vertical beam spread
|
Product Description
Product Details
Product Details
3; Light source adopts LED with long lifespan up to 100,000hrs, lower power consumption controller and high efficiency.
4; Based on the single chip computer automatic control, and also could be controlled by controller
Product Details
5; Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
6; The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so that the light is suitable to harsh environment.
Product Details
7; Integral structure, protection lever of IP65.
8; Ignitability rate UL-94V0, fit for all kinds of industrial situation.
9; If flashing mode, could choose controller to control the synchronous switch function.
