Quick Details
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-SL1622P
-
Place of Origin:
-
Guangdong, China
-
Key Feature1:
-
Wholesales Price Standard PoE Switch
-
Key Feature2:
-
16 port PoE Switch for Hikviision Dahua IP Cameras
-
Key Feature3:
-
PoE Switch for Hikvision IP Camera
-
Application:
-
Telecommunication
-
Certification:
-
CE RoHS FCC
-
Transmission distance:
-
100meters
-
Power:
-
65w/96w/120w/200w/300w
-
Uplink rate:
-
1000Mbps
-
LED Display:
-
Power ,T-LINK ,R-LINK,Rackable ,Desktop
-
Name:
-
Wanglink OEM 4 8 16 24 Port POE Switch for Hikvision IP Camera
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.25G
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-SL1622P
-
Place of Origin:
-
Guangdong, China
-
Key Feature1:
-
Wholesales Price Standard PoE Switch
-
Key Feature2:
-
16 port PoE Switch for Hikviision Dahua IP Cameras
-
Key Feature3:
-
PoE Switch for Hikvision IP Camera
-
Application:
-
Telecommunication
-
Certification:
-
CE RoHS FCC
-
Transmission distance:
-
100meters
-
Power:
-
65w/96w/120w/200w/300w
-
Uplink rate:
-
1000Mbps
-
LED Display:
-
Power ,T-LINK ,R-LINK,Rackable ,Desktop
-
Name:
-
Wanglink OEM 4 8 16 24 Port POE Switch for Hikvision IP Camera
Recommend Products
Product Description

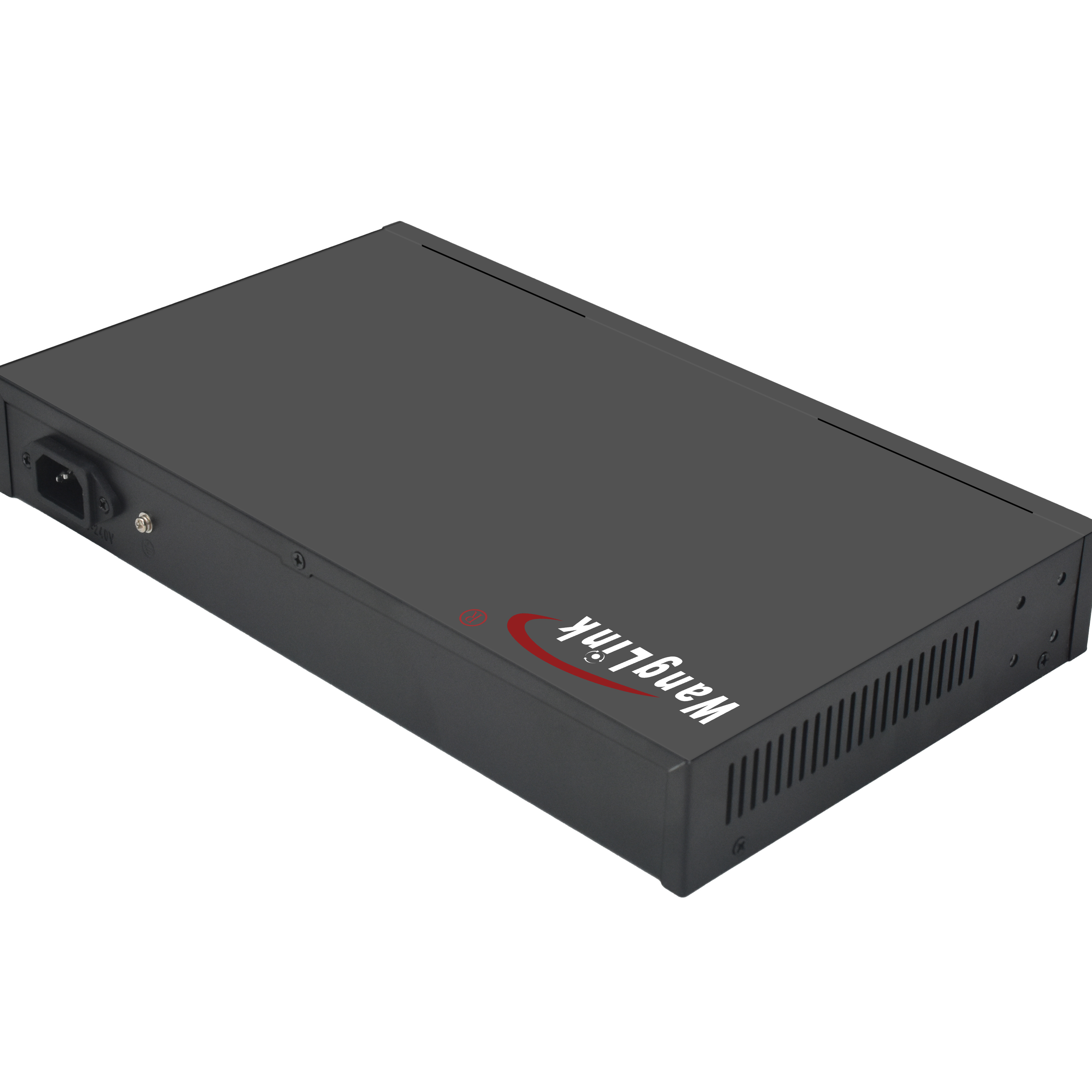

Wanglink 10/100M 16 port Network 48V POE Switch for Hikviision Dahua IP Cameras
Wanglink OEM/ODM 4 8 16 24 Port CCTV 10/100/1000M POE Switch for Hikvision IP Camera is designed to meet the POE power supply demand, and adopts high-speed Ethernet chip, which contain 16 port RJ45 port for POE power supply + 2 port RJ45 uplink port with 1G SFP. The 16port PoE rj45 port all support IEEE802.3AF/AT standard to supply the power to the Powered Device, and each port maximum 30W, whole device maximum 72W. Automatic detection and identification of electrical equipment that meets the IEEE802.3AF/AT standard and supply the power for the device through UTP cable.
Products Show
|
Product Name
|
Wanglink 10/100M 16 port Network 48V POE Switch for Hikviision Dahua IP Cameras
|
|
Product Model
|
WOR-SL1622P
|
|
Product description
|
16*100Mbps POE port+2*1000Mpbs uplink port+2G SFP
|
|
Interface
|
16*10/100Mbps RJ45 port(All ports support MDI/MDIX self-adaptation)
|
|
Network media
|
category 5 and above unshielded twisted pair.(≤150meters)
|
|
Backplane bandwidth
|
12Gbps( Non-Blocking)
|
|
Forwarding method
|
Store-and-Forward(can realize line speed forward)
|
|
MAC Address
|
2K
|
|
Network protocol
|
IEEE802.3i;IEEE802.3u;IEEE802.3x Flow control;IEEE802.3af
|
|
POE Port
|
1~16 port support IEEE802.3af(15.4W)/at(30w) power supply
|
|
POE standard
|
IEEE802.3af(output power 15.4W)/at(30w)
|
|
POE Port features
|
each port 15.4W(IEEE802.3af)/at(30w)
|
|
Core of cable
|
1/2+,3/6-(4/5+,7/8- can custom-made)
|
|
Total Power
|
200W/300W
|
|
Environmental conditions:
|
Working temperature:-35℃~75℃
Storage Temperature:-40℃~85℃ Operating humidity:-5~95%RH,noncondensing |
Our Certifications
Our Company
About Factory
Wanglink headquarter is located in Shenzhen Xiaxue Industry Park , where is a China Hi-tech Industrial Park, covering an area of 20 square kilometers,Brought together many advanced enterprises in the communication industry.Wanglink is one of the important enterprises in this Creative Industrial Park, gaining great support from local government. It is with registered capital of 5 million RMB, covering an area of nearly 2000 square meters for R&D, marketing & sales office.
Since 2013 years, wanglink has invested more than 100 million yuan in production research and development.
We are fully capable of accepting customers' OEM, ODM requirements for products, and targeted products that are suitable for customers.
With rapid development and intensive research work, Wanglink has developed over 400 models in 4 major series, ONU / Switch / SFP / Media converter in dependently. Each series has passed CE Certification,
Formed a complete and highly customizable FTTH/FTTB/FTTX industry chain
Factory Detail
Wanglink obtain the certification of ISO 9000:2000 Quality Management System in June 2015 and the certification of ROHS,CE, FCC in November 2017.
PCB board design and production
Old-Testing Room
Soldering
Warehouse
Customer Photo
2019 CIOE Exhibition
Each year, Wanglink has the plan to
go to the world to participate in the exhibition, Brazil, India, Thailand, Vietnam ....., until now,We have established good business relations with more than 100 countries around the world.
2019 Vietnam ICT COMM
We got many friendship, and hope every our business come to win-win
situation
.each year, we will visit our friend all over the world.
Organized by the Ministry of Industry and Trade of Vietnam and the Ministry of Information and Communication of Vietnam, ICT COMM Vietnam is jointly organized by Vietnam’s largest exhibition service company “ADPEX” United Stock Company and Vietnam Innovation and Promotion Exchange Center (Vietnam Post and Telecommunications Group). Communication electronic ICT professional exhibition.
2018
CeBIT ASEAN Thailand
CeBIT is the world's largest authoritative exhibition in the fields of information, communications and software.
CeBIT ASEAN Thailand, Bangkok International Information and Communication Technology Exhibition, is held in Bangkok, Thailand. The frequency of the exhibition is once a year. It is a series of exhibitions held by the Hannover Messe in Southeast Asia.
FAQ
Q:Why choose Wanglink?
1) Prompt delivery and remarkable services .
2) Competitive selling prices
3) Rich experience of OEM & ODM co-operation
4) 100% new materials for production and 100% reliable quality
Q: Can I have a sample order? What is your MOQ?
A: Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
Q: How do you ship the goods and how long does it take arrive?
A: Sea transportation & Air transportation & Express ( DHL / UPS / TNT / Fedex / EMS ). Air transportation & Express usually take 3-5 days to arrive.
Q: Could I use our own logo and label?
A:
Yes, we provide OEM/OEM service and make the products with your own label.
