Quick Details
-
Panel Size:
-
36.6 inch
-
Max Resolution:
-
1920x290
-
Keywords:
-
lcd screen stretched bar display
-
Touch screen:
-
No touch, (can customize if need)
-
WiFi:
-
802.11b/g/n
-
RJ45:
-
LAN port
-
power consumption:
-
24w
-
Brightness:
-
250NIT
-
Viewing Angle:
-
89/89/89/89(L/R/U/D)
-
Active area:
-
409.8(H)x 115.2 mm(V)
-
Network:
-
WiFi, BT, Ethernet
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Portworld
-
Model Number:
-
YC-.2801A
-
Panel Size:
-
36.6 inch
-
Max Resolution:
-
1920x290
-
Keywords:
-
lcd screen stretched bar display
-
Touch screen:
-
No touch, (can customize if need)
-
WiFi:
-
802.11b/g/n
-
RJ45:
-
LAN port
-
power consumption:
-
24w
-
Brightness:
-
250NIT
-
Viewing Angle:
-
89/89/89/89(L/R/U/D)
-
Active area:
-
409.8(H)x 115.2 mm(V)
-
Network:
-
WiFi, BT, Ethernet

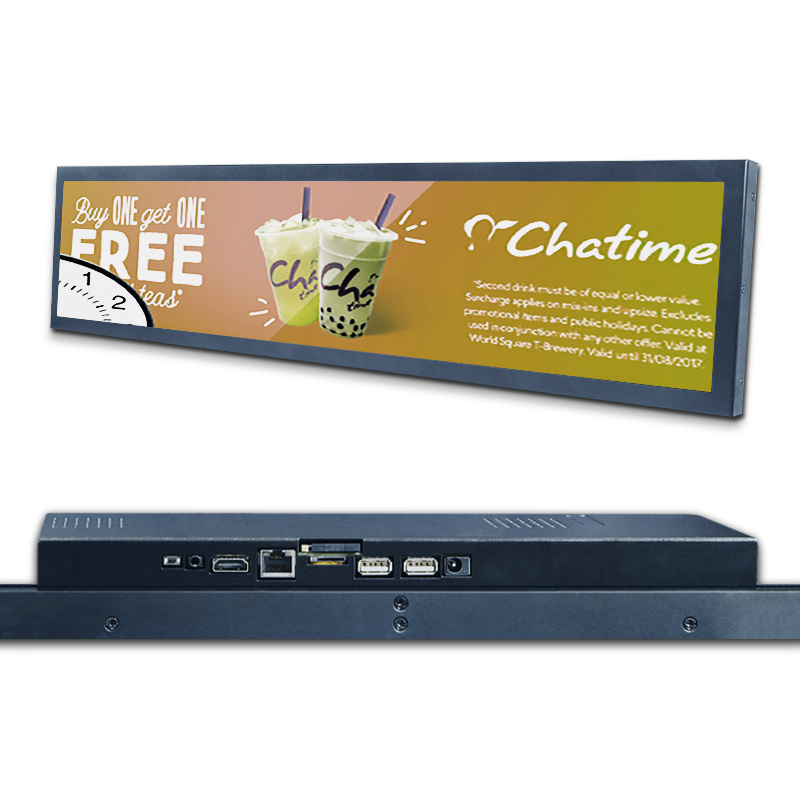

28 inch Commercial stretch bar LCD screen shelf advertising stretch screen
Features :
1. 19", 21", 24", 28", 32" size for option & screen size can be customized
2. RK3288 / RK3399 CPU for toption
3. Android OS for option
4. LCD bar screen with wifi
5. Touch screen could be customized
Product Description:
| System | CPU | RK3288 Quad core A17,1.8GHz |
| RAM | 2GB | |
| Internal memory | 16GB | |
| Operation system | Android 8.1 | |
| Display | Panel | 28" (16.4" -- 49.5 " option) |
| Active area | 409.8(H)x 115.2 mm(V) | |
| Viewing angle | 89/89/89/89(L/R/U/D) | |
| Display mode | Nomally black ,IPS | |
| Luminance | 250cd/m2 type | |
| Aspect Ratio | Bar screen | |
| Network | WiFi | 802.11b/g/n |
| Ethernet | 100M/1000M ethernet | |
| Blue--tooth | BT 4.0 | |
| Interface | USB Host x 3 | USB 2.0 |
| USB OTG | USB OTG | |
| SD card slot | SD/MMC card slot | |
| Earphone | 3.5mm earphone | |
| Power Jack | DC input 12V 2A | |
| H-D-M-I | H-D-M--I output | |
| RJ45 | Ethernet | |
| Video | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etv,supoort up to 4k . |
Product Description:
LCD strip bar stretch screen( special-shaped bar stretch screen are widely applied mainly in government administrative hall, bus, subway, light rail, railway station, machine, etc.
Public entertainment venues such as electric shops, shopping malls, hotels, monopoly stores, pianos, exhibition halls, banks, hospitals, schools, scenic spots, bars and other large living quarters.
Bar stretch screen have played a more comprehensive and influential role in advertising and life guidance. Also, we can design the size according to customer requirement.
Optional Sizes:
Application Scenarios:
1, Supply Ability
Shenzhen Yu Chuang Xing Ye Technology Limited have been working on manufacturing and exporting tablet pc for many years, had accumulated lots of experience handing bulk order of OEM and drop - ship p ing. We supply over 1,000pcs tablet PC every day to more than 40 countries and regions all over the world.
2, Qualifications
To be 12 years gold supplier and accessed supplier of Alibaba, CE/ROHS /FCC etc certificates approved
3, Physical In Stock
Most of our models we put on sell are in stock. Tha t ’s why we can keep competitive prices and timely delivery.
4, Strict Testing before Shipping
All of our goods are in stock and tested one by one for the basic functions before shipment.
5, 24hours on-line Service and Update
We offer 24-hours on-line services for system update and apk downloads. All message will be replied in 24 hours.
6, OEM Service
We offer customization service as per your specific requirement including:
1, set the start-up logo;
2, Silk print or laser your company logo on the shell of the tablet.
3, customize the package.
