Quick Details
-
Warranty(Year):
-
3-Year
-
Lamp Luminous Efficiency(lm/w):
-
18, 18
-
Color Rendering Index(Ra):
-
75
-
Input Voltage(V):
-
DC12V
-
Lamp Luminous Flux(lm):
-
50LM
-
CRI (Ra>):
-
75
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOUDE
-
Emitting Color:
-
Changeable
-
LED Light Source:
-
SMD RGB 5050
-
IC chip:
-
Standard DMX512 IC chip
-
nput Voltage(V):
-
5V/12V/24V
-
LED Type:
-
LED Bar Lights
-
Length:
-
0.5meter , 1meter , 1.5meter ,2meter
-
Diameter:
-
20-30MM
-
Color:
-
RGB Color Mixture
-
Lamp Body Material:
-
PVC
Quick Details
-
Color Temperature(CCT):
-
2700K-10000K, RGB
-
Type:
-
LED Matrix Light
-
Application:
-
Warehouse
-
Warranty(Year):
-
3-Year
-
Lamp Luminous Efficiency(lm/w):
-
18, 18
-
Color Rendering Index(Ra):
-
75
-
Input Voltage(V):
-
DC12V
-
Lamp Luminous Flux(lm):
-
50LM
-
CRI (Ra>):
-
75
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOUDE
-
Emitting Color:
-
Changeable
-
LED Light Source:
-
SMD RGB 5050
-
IC chip:
-
Standard DMX512 IC chip
-
nput Voltage(V):
-
5V/12V/24V
-
LED Type:
-
LED Bar Lights
-
Length:
-
0.5meter , 1meter , 1.5meter ,2meter
-
Diameter:
-
20-30MM
-
Color:
-
RGB Color Mixture
-
Lamp Body Material:
-
PVC

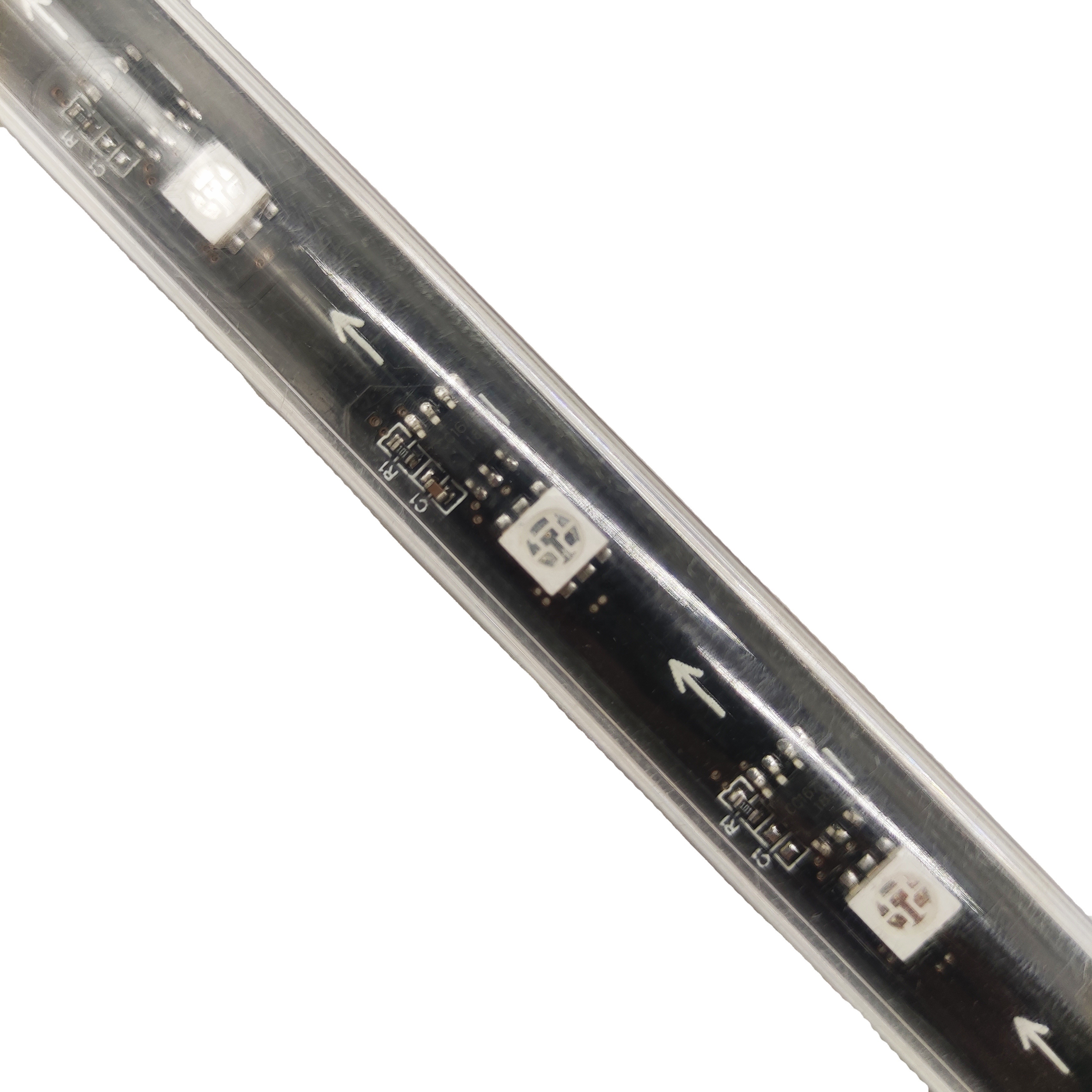

3D LED ceiling light vertical tubes ,DMX 3D Tube, Madrix Compatible
Features
1. Working with DMX512 protocol directly, stable working performance and changing smoothly.
2. Built-in regulator circuit, can better to protect the IC and extend the using time.
3.Wonderful perfomance operated by Madrix software
4. Double-sided light effects can be seen from 360 degree, Transparent tube make the light much clear and pure.
5.Environment friendly, no harsh glare and buzzing noise, no flicker.
6.Parallel DMX signal , avoiding all lights influenced by the failure of one light in serial connection.
7. Waterproof, energy-saving, low-cost of maintenance, and long life span.
8. Length: 0.5M, 1M, 1.5M,2M or customized
Parameters
|
Model |
HD-10032-DMX |
HD-10064-DMX |
HD-10096-DMX |
HD-100128-DMX |
|
Products name |
3D DMX LED Vertical Tube Light |
|||
|
Hosing Size |
D30*L500mm |
D30*L1000m |
D30*L1500mm |
D30*L2000mm |
|
Housing material |
Transparent PC |
|||
|
LED |
RGB SMD5050 |
|||
|
LED QTY |
32PCS |
64PCS |
96PCS |
128PCS |
|
Pixel |
8pixel |
16pixel |
24pixel |
32pixel |
|
Beam Angle |
360 degree |
|||
|
Input Voltage |
DC 5V/12V/24V |
|||
|
Max Power |
8W |
16W |
24W |
32W |
|
Protocol |
DMX512 |
|||
|
Control Mode |
DMX/DVI/ARTNET |
|||
|
Adress Setting |
Manully |
|||
|
Universe |
20 tube one DMX universe |
10tube one DMX universe |
7 tube one DMX universe |
5 tube one DMX universe |
|
Protection |
IP65/20 |
IP65/20 |
IP65/20 |
IP65/20 |
|
Operting Temperature |
-20°C--+60°C |
|||
|
Storage Temperature |
-40°C--+60°C |
|||
|
Weight |
0.122kg/pcs |
0.244kg/pcs |
0.345kg/pcs |
0.467kg/pc
|
Trade terms
1.Payment methods:T/T,Western Union,paypal.
2.Lead time;3-5 working days for samples order,bulk order according to your quantity.
3.Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc
4.MOQ:no MOQ for the first order
5.Sample free:the sample fees will returned after you place the large order.
