Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Langir
-
Model Number:
-
T
-
IP level:
-
IP65
-
Product name:
-
Waterproof Push Button Switch
-
Operation type:
-
Momentary/Latching
-
LED Color:
-
Red Yellow Green Blue White Orange
-
Material:
-
Stainless Steel/Anodized Aluminum
-
Max. Switch Rating:
-
3A/250VAC
-
Protection:
-
IP65/ IK09
-
Mounting Hole Size:
-
12mm/16mm/19mm/22mm
-
LED voltage:
-
3.3V/6V/12V/24V/36V/110V/220V/others
-
Mechanical Life:
-
2,000,000cycles
-
Product type:
-
Push Button Swicth
Quick Details
-
Protection Level:
-
IP65/ IK09
-
Max. Current:
-
3A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Langir
-
Model Number:
-
T
-
IP level:
-
IP65
-
Product name:
-
Waterproof Push Button Switch
-
Operation type:
-
Momentary/Latching
-
LED Color:
-
Red Yellow Green Blue White Orange
-
Material:
-
Stainless Steel/Anodized Aluminum
-
Max. Switch Rating:
-
3A/250VAC
-
Protection:
-
IP65/ IK09
-
Mounting Hole Size:
-
12mm/16mm/19mm/22mm
-
LED voltage:
-
3.3V/6V/12V/24V/36V/110V/220V/others
-
Mechanical Life:
-
2,000,000cycles
-
Product type:
-
Push Button Swicth
Product Information

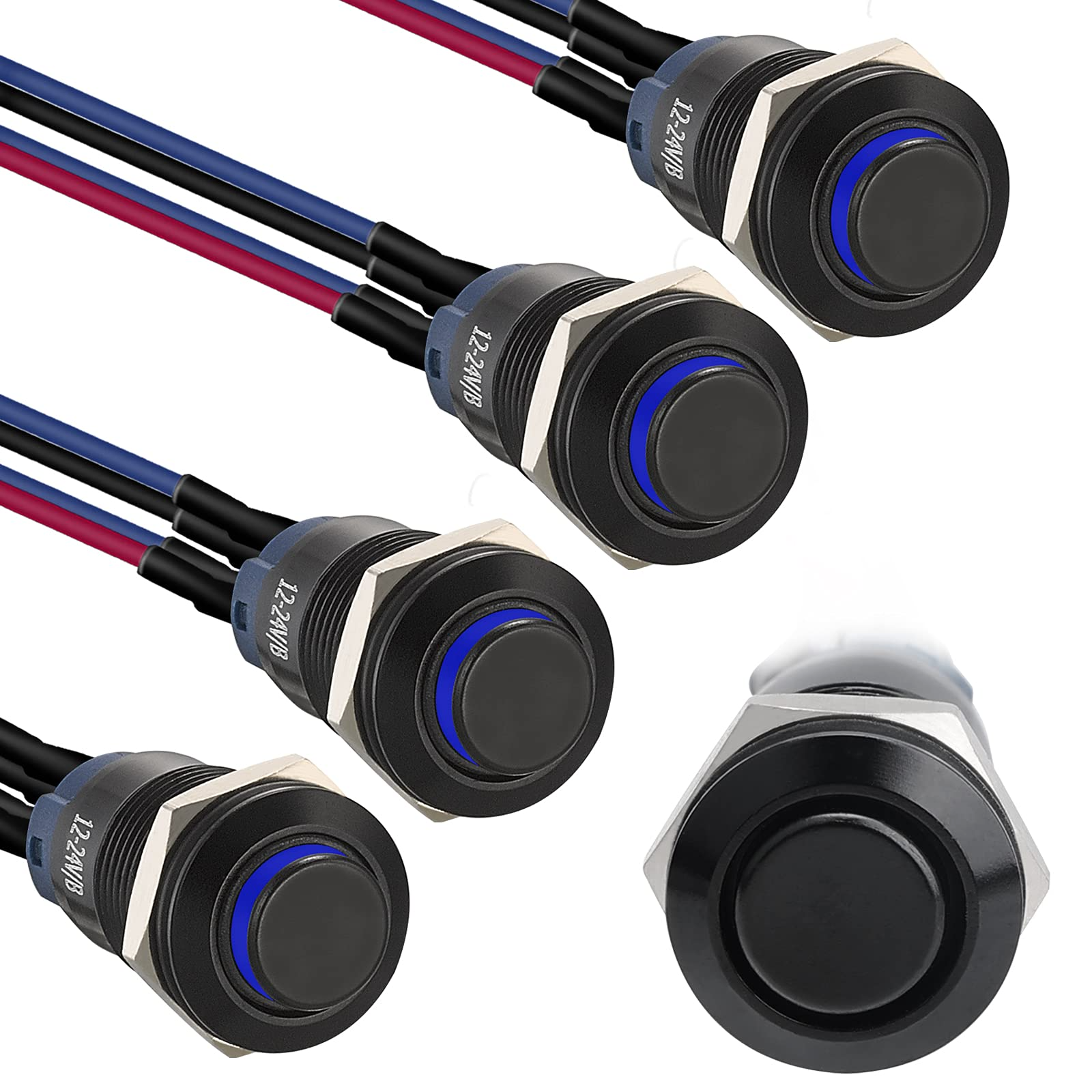

12mm Latching Metal Momentary Switch Black Shell IP65 Waterproof Push Button Switch,1NO 1 Normally,Self-Locking with LED
|
Illuminated Options
|
Non-Illuminated/ Ring Illuminated/ Dot Illuminated
|
|
|
|
|||
|
Terminal
|
Solder lug (2.8X0.5)/ Screw
|
|
|
|
|||
|
Max. Switch Rating
|
3A/ 250VAC
|
|
|
|
|||
|
Contact Resistance
|
≤50mΩ
|
|
|
|
|||
|
Insulation Resistance
|
≥1000mΩ
|
|
|
|
|||
|
Dielectric Strengh
|
2000VAC
|
|
|
|
|||
|
Operation Temp.
|
-20°C ~ +55°C
|
|
|
|
|||
|
Mechanical Life
|
2,000,000cycles
|
|
|
|
|||
|
Electrical Life
|
100,000cycles
|
|
|
|
|||
|
Contact Material
|
Silver Alloy
|
|
|
|
|||
|
Torque
|
5 ~ 14Nm
|
|
|
|
|||
|
Protection
|
IP65/ IK09
|
|
|
|
|||
|
Button
|
Stainless steel / Nickel plated brass / Anodized aluminum
|
|
|
|
|||
|
Body
|
Stainless steel / Nickel plated brass / Anodized aluminum
|
|
|
|
|||
|
Base
|
PBT
|
|
|
|
|||
Products Description
IP65 Waterproof
As it is full metal appearance and with a rubber ring, the switch achieves IP65 waterproof degree. It can used in wet environment, such as boat control panel, kitchen, outdoors etc. Note that this switch can be used under water.
Long Work Life
The metal shell and push part is not easy to damage. The Mechanical work Life is 1,000,000 times The switch use Silver Alloy contact to make the Electrical Work Life more than 50,000 times.
Pure Led Lights
Switch use Light-lasting lamp beads, bright and dazzling brightness, long service life.
The work life of the led light is more than 40,000 hours.
Use bidirectional lamp bead: + and - wires can inversed without any risk
Auto Refit
Use this switch to replace the light switch, horn switch or other control switches in the cars/ boats/ trucks. Bright and comfortable Led and metal appearance make the switch very cool.
Title goes here.
It can use as a door bell, entrance guard push button switch in the outdoors. As it is IP65, it can work relatively harsh
environment.
environment.
Title goes here.
It is also a good choice to use it as a replacement switch of household Appliances. Such as table lamp switch, PC switch, Audio
switch.
switch.
