Quick Details
-
Vibrating Amplitude:
-
adjustable
-
Length of Flexible Shaft:
-
contact with us
-
Voltage:
-
220/380/415v/as your request
-
Weight:
-
250kg
-
Dimension(L*W*H):
-
1000*1000*450mm
-
Machine type:
-
Durable concrete shaker table precast electric small vibrating table
-
Vibrating force:
-
3KN-20KN
-
Machine material:
-
Carbon steel vibration table
-
Function:
-
Sand compaction
-
Spring:
-
air spring,steel spring or rubber spring
-
Motor (sets):
-
2-6mm
-
Color:
-
blue,green
-
Vibrating source:
-
6 sets vibrating motor
-
Applied field:
-
Professional Vibrating platform for concrete block
-
Service:
-
24hours online service
-
Certification:
-
CE&ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Guofeng
-
Frequency:
-
50HZ
-
Vibrating Amplitude:
-
adjustable
-
Length of Flexible Shaft:
-
contact with us
-
Voltage:
-
220/380/415v/as your request
-
Weight:
-
250kg
-
Dimension(L*W*H):
-
1000*1000*450mm
-
Machine type:
-
Durable concrete shaker table precast electric small vibrating table
-
Vibrating force:
-
3KN-20KN
-
Machine material:
-
Carbon steel vibration table
-
Function:
-
Sand compaction
-
Spring:
-
air spring,steel spring or rubber spring
-
Motor (sets):
-
2-6mm
-
Color:
-
blue,green
-
Vibrating source:
-
6 sets vibrating motor
-
Applied field:
-
Professional Vibrating platform for concrete block
-
Service:
-
24hours online service
-
Certification:
-
CE&ISO

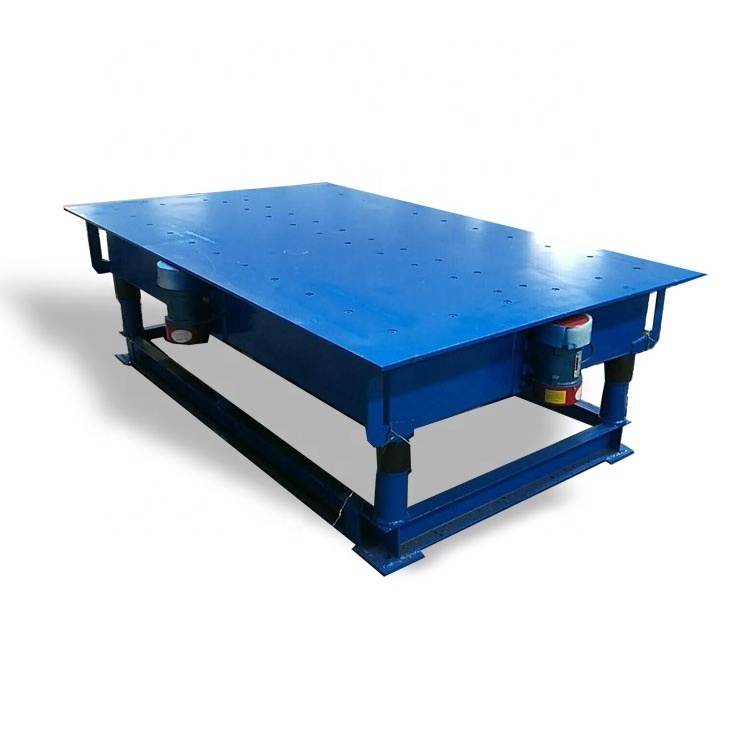

Durable concrete shaker table precast electric small vibrating table
| small vibrating table introduction |
After years of research and development of our company, we have developed various of vibration tables ,they are divided into three types ,two-dimensional vibration automatic control , three-dimensional vibration of self-control , three-dimensional FM shock (for pipeline equipment) . It is suitable for precision casting, Pressure molding. And it is a stable machine with low consumption and low noise.
Vibration table is used in the production process for Particles, powdery materials from the bulk to the form of a massive shape.
| Vibrating Table |
| High Quality vibration table working principle |
Carbon steel vibrating table able is mainly composed of four parts.They are bracket, countertops, vibration, shock absorption institutions . Rubber springs and 2~8 vibrating motors are used together to vibrate materials from all directions (up and down, left and right, front and rear),leading to the effect of two or three-dimensional shake)
| 3m*10m Vibrating Table |
| High Quality Vibrating Table applied field |
ZP vibration table is widely used in metallurgy, abrasive, food, chemical industry, building material, coal, electricity and so on,used for cast steel, cast iron, bronze, cast aluminum, different structure of various types of castings.
| Different type of High Quality Vibrating Table |
| High Quality vibration table for concrete moulds basic drawing |
1.Good stability,safety product,high-power can carry sand box 5T -10T
2.
Three-dimensional vibration for complex cavity casting
3.Continuously variable transmission, the modeling process, do not harm the premise of the model to obtain optimal compaction effect
4.
Self-locking function
to ensure accurate positioning in the production line
| High Quality Vibrating Tabletechnical parameter |
|
Model |
Dimesnion (mm) |
Motors (sets) |
Exciting force(KN) |
Power (kw) |
Weight (kg) |
Amplitude (mm) |
Frequency(HZ) |
|
ZP-2 |
500*500 |
2 |
10 |
1.0 |
300 |
2-5 |
50-60 |
|
ZP-4 |
800*800 |
2-4 |
20 |
1.5 |
450 |
||
|
ZP-6 |
1000*1000 |
2-6 |
30 |
2.2 |
600 |
||
|
ZP-6-2 |
1200*1200 |
4-6 |
30 |
2.2 |
860 |
||
|
ZP-8-1 |
1600*1200 |
4-6 |
40 |
3.0 |
1000 |
||
|
ZP-8-2 |
1600*1400 |
4-8 |
50 |
3.0 |
1250 |
||
|
ZP-10-1 |
2000*1600 |
4-8 |
60 |
4.0 |
1600 |
||
|
ZP-10-2 |
2000*1800 |
6-10 |
80 |
6.0 |
2000 |
||
|
ZP-12-2 |
3000*2000 |
6-10 |
80 |
7.5 |
3100 |
||
|
ZP-12-2- |
4000*3000 |
8-12 |
80 |
7.5 |
4600 |
Note:My friend,The above technical parameter is just for your reference,if you are interested in our vibrating table,pls contact with me for more information.
|
How to choose suitable model vibration table ??? |
Please kindly tell us:
1.What is your raw material to be processed?
2.What is the mode size?(L*W*H)
3.What is the loading weight of the vibrating shaker table ?
4.You need thre dimensional vibration or?
| Roller type High Quality Vibrating Table |
| General motor type High Quality Vibrating Table |
| Packaging |
1. Container
2. Plywood case
3. Plywood tray
4. Nude package
5. Fumigation box
6. As your requirement
| Our advantages |
♥ Free design drawing
♥ Free testing machine
♥ Customized design
♥ Engineer over 30 years experience
♥ Factory over 18 years manufacturering experiences
