Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FATO/OEM/ODM
-
Model Number:
-
CB2-BD21
-
Rated Insulation Voltage:
-
380V
-
Conventional Thermal Current:
-
10A
-
Protection Grade:
-
IP40
-
Certification:
-
N/A
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
10A
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FATO/OEM/ODM
-
Model Number:
-
CB2-BD21
-
Rated Insulation Voltage:
-
380V
-
Conventional Thermal Current:
-
10A
-
Protection Grade:
-
IP40
-
Certification:
-
N/A

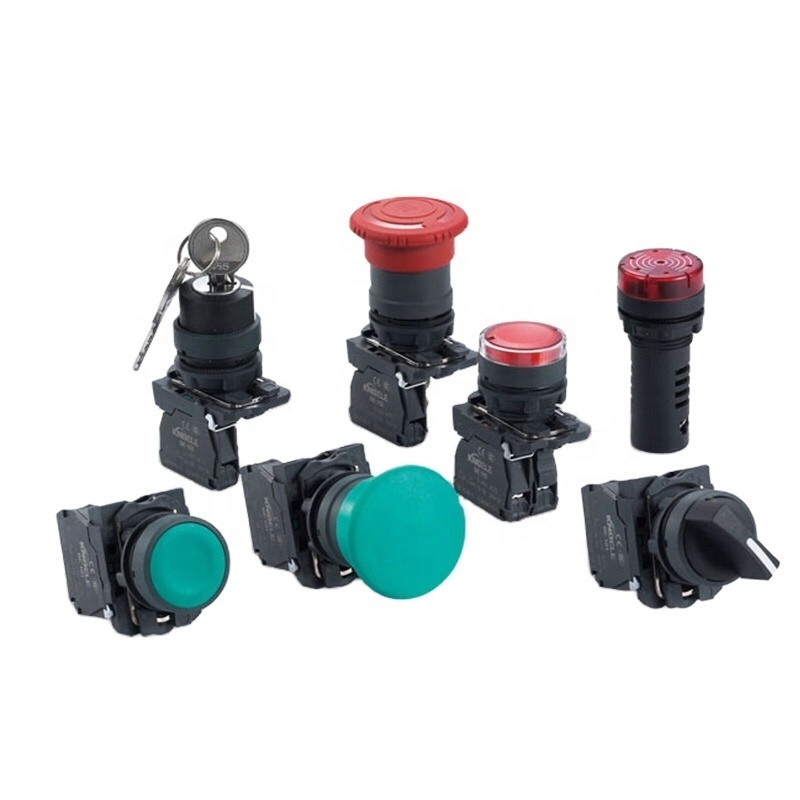

FATO Standard Handle 2/3 Position Selector Push Button Switch
1. The metal pushbutton uses anti-floating operation head, so thai the pushbutton can’t be dismounted from front side;
2. All contacts own circuit transfer and sell-cleaning performance , which guarantees contact reliability even in low voltage and low current (5V, 5mA);
3. Normally open and normally closed contact sets are independent to each other, and it can be combined as per requirement during use for convenient replacement;
4. Concealed connection terminal is safer and more reliable. Metall pushbutton operation head and base use Zn- AI alloy, which is beautiful and firm ;
5. BA9s lamp holder is used for all illuminated pushbutton and signal lamp , different light source can be used as per requirement.
| Rated insulation voltageUi (V) | 380 | ||||||
| conventional thermal current Ith (A) | 10 | ||||||
| Power frequency with stand voltage | 2500V Ac, One minute | ||||||
| Contact resistance | ≤500mΩ (initial value) | ||||||
| Mechanical life | Flush,mushroom head type 1,000,000 times,illuminated type 300,000 times,others 100,000 times | ||||||
| Electrical life | Flush,mushroom head type,double pushbutton AC 500,000 times,DC 200,000 times,others 100,000 times | ||||||
| Level of protection | IP40 | ||||||
| Rated operating voltage Ue(V) |
|
||||||
| Rated operating current Ie (A) |
|
||||||
|
|
Rated voltage(V)
Light source |
Direct type | Resistance type | Transformer type | |||||||||
|
220 |
|
||||||||||
| LED Light |
|
- |
|
|||||||||
| Neon lamp |
|
√ |
|
|||||||||
| Incandescence light |
|
- |
|
1. Air temperature range: -5℃—40℃, the average temperature ≤35℃
2. Altitude height no more than 2000min used place
3. Air condition when the highest temperature is 40℃, relatively humidity is no more than 505, allowed to have hgiher relative humidity under lower. For example, when 20℃. the relative humidity is 90%. Furthermore, considering that is sometimes appears moderate condensation on product's surface.
4. Class of pollution: III
5. Class of installation: II
