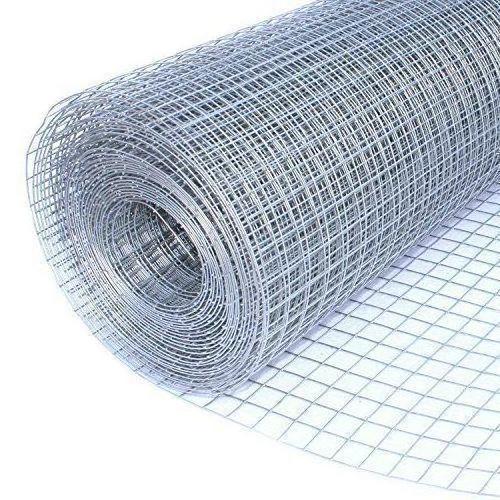

Factory outlet pvc galvanized welded fencing net iron wire mesh welded wire mesh panel roll
Factory outlet pvc galvanized welded fencing net iron wire mesh welded wire mesh panel roll
Factory outlet pvc galvanized welded fencing net iron wire mesh welded wire mesh panel roll
Factory outlet pvc galvanized welded fencing net iron wire mesh welded wire mesh panel roll
Factory outlet pvc galvanized welded fencing net iron wire mesh welded wire mesh panel roll
Factory outlet pvc galvanized welded fencing net iron wire mesh welded wire mesh panel roll
Factory outlet pvc galvanized welded fencing net iron wire mesh welded wire mesh panel roll
Factory outlet pvc galvanized welded fencing net iron wire mesh welded wire mesh panel roll

Factory outlet pvc galvanized welded fencing net iron wire mesh welded wire mesh panel roll

FOB Reference Price: Get Latest Price
≥1 Square meters
US $3.05
≥100 Square meters
US $2.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Hebei,China
Model Number:
WY-1225, WY-1651, WY-2051, WY-2076
Brand Name:
WeiYue
Product name:
weiyue welded wire mesh
Hole Size:
50*50mm,60*120mm,etc.
Color:
White, Green
Wire Diameter:
3mm-8mm
Specification:
1m*2m 1.22m*2.44m
Mesh Size:
1/4",3/8",1/2",1",2",etc.
Production Capacity:
1000m2 Per Day
Use:
Construction Wire Mesh, Protecting Mesh, Cages
Features:
Corrosion Resistant,High-Strength
HS Code:
73144100

Quick Details

Material:
Galvanized Steel Wire
Type:
Rope Mesh
Application:
Protecting Mesh
Place of Origin:
Hebei,China
Model Number:
WY-1225, WY-1651, WY-2051, WY-2076
Brand Name:
WeiYue
Product name:
weiyue welded wire mesh
Hole Size:
50*50mm,60*120mm,etc.
Color:
White, Green
Wire Diameter:
3mm-8mm
Specification:
1m*2m 1.22m*2.44m
Mesh Size:
1/4",3/8",1/2",1",2",etc.
Production Capacity:
1000m2 Per Day
Use:
Construction Wire Mesh, Protecting Mesh, Cages
Features:
Corrosion Resistant,High-Strength
HS Code:
73144100
Products Description
Material about welded wire mesh
Electro galvanized wire, hot-dipped galvanized,PVC coated.
We choose the best low carbon wire or stainless steel wire material available in China. The high quality & reasonable price
product is from the right material.
Electro galvanized
Electro galvanizing, uniform coating and thin thickness. Coating are usually only 3-15 microns with bright appearance. Common
electro galvanized wire on zinc amount is 8-13 g/m².
Hot-dipped galvanized
Hot-dipped galvanized, coated thickness and nonuniform coating. Coating are usually 45-300 microns with darker color and good
corrosion resistance. Hot-dip galvanized wire amout of zinc: 30-60 g/m²
Plastic welded wire mesh
PVC coated welded wire mesh is a high profile welded wire mesh with protective spiked wire at the top, galvanized steel wire for wire mesh, and PVC coated plastic coating to ensure the greatest degree of sturdiness and durability while protecting the appearance.
Material: Low carbon steel wire, PVC coated
Manufacturing process: After steel wire welding, it can also be separately plated, hot-plated and coated.
Application of PVC coated welded wire mesh: Fencing, decoration, protection and other facilities in industries such as industry,agriculture, municipal administration, and transportation.
PVC coated welded wire mesh features: good anti-corrosion performance, strong weather resistance, anti-aging, and elegant appearance. Installation is quick and easy.

Specification
Specification List of Welded Wire Mesh
Opening
Wire diameter
Width
1/4" x 1/4"
0.5mm-0.7mm
300mm-1828mm
3/4" x 3/4"
0.7mm-2.0mm
300mm-1828mm
3/8" x 3/8"
0.7mm-1.1mm
300mm-1828mm
5/8" x 5/8"
0.8mm-1.2mm
300mm-1828mm
1/2" x 1/2"
0.45mm-1.6 mm
300mm-1828mm
1" x 1"
0.7mm-3.0mm
300mm-2000mm
1" x 1/2"
0.8mm-1.6mm
300mm-1828mm
1-1/2" x 1-1/2"
0.7mm-3.5mm
300mm-1828mm
1" x 2"
1.6mm-2.1mm
300mm-1828mm
2" x 2"
0.7mm-4.0mm
300mm-2500mm
2" x 3"
1.5mm-3.5mm
300mm-2000mm
2" x 4"
2.0mm-4.0mm
300mm-1828mm
3" x 3"
1.0mm-4.5mm
300mm-2500mm
3" x 4"
1.5mm-4.5mm
300mm-2000mm
4" x 4"
1.0mm-4.5mm
300mm-2500mm
5" x 5"
2.5mm-4.5mm
300mm-2500mm
6" x 6"
2.5mm-4.5mm
300mm-2500mm
Technical Note:
1,Standard roll length:15.24m,30m,50m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
Specifications of welded wire mesh panels
Opening Size
10mm-300mm
Wire Diameter
2.0mm-8mm
Panel Width
0.3m-3m
Panel Length
0.3m-10m
Packing: wrapped with waterproofed paper or shrink plastic film, then several ten bundle in a pallet
Special request can be done as the customer's request
Product Application

Welded wire mesh is widely used in industry, agriculture, construction, transportation, mining and other industries. Such as machine guards, animal husbandry fences, flower and wood fences, window guards, access fences, poultry cages, egg baskets, and home office food baskets, paper baskets, and decorations. Mainly used for general building exterior walls, poured concrete,high-rise residential buildings, etc., plays an important structural role in the insulation system.
Product Advantages
1.The grid structure is concise, beautiful and practical;
2.It is easy to transport, and the installation is not limited by terrain fluctuations;
3.It is particularly adaptable to mountainous terrain, slopes, and multiple bends;
4.The price is moderately low, and it is suitable for large areas.
