Chinese Supplier Wire Rope Hoist CD Electric Hoist 3 ton 5 ton 10 ton
Chinese Supplier Wire Rope Hoist CD Electric Hoist 3 ton 5 ton 10 ton
Chinese Supplier Wire Rope Hoist CD Electric Hoist 3 ton 5 ton 10 ton
Chinese Supplier Wire Rope Hoist CD Electric Hoist 3 ton 5 ton 10 ton
Chinese Supplier Wire Rope Hoist CD Electric Hoist 3 ton 5 ton 10 ton
Chinese Supplier Wire Rope Hoist CD Electric Hoist 3 ton 5 ton 10 ton
Chinese Supplier Wire Rope Hoist CD Electric Hoist 3 ton 5 ton 10 ton
Chinese Supplier Wire Rope Hoist CD Electric Hoist 3 ton 5 ton 10 ton

Chinese Supplier Wire Rope Hoist CD Electric Hoist 3 ton 5 ton 10 ton

FOB Reference Price: Get Latest Price
≥1 Sets
US $800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Lift Speed:
-3
Weight (KG):
100 kg
Rotation speed (r/min):
1380
Current(A):
1.25-41.7
Certification:
ISO,CE,S GS,BV,GOST,TUV,RTN
Travel speed(m/min):
20/30,customized
Hoisting height(m):
customized
Hoistling speed(m/min):
0.35/3.5-0.8/88,customized
Power supply:
110V/220V/230V/380V/440V,customized

Quick Details

Warranty:
1 Year
Place of Origin:
Henan, China
Brand Name:
Finework
Lift Speed:
-3
Weight (KG):
100 kg
Rotation speed (r/min):
1380
Current(A):
1.25-41.7
Certification:
ISO,CE,S GS,BV,GOST,TUV,RTN
Travel speed(m/min):
20/30,customized
Hoisting height(m):
customized
Hoistling speed(m/min):
0.35/3.5-0.8/88,customized
Power supply:
110V/220V/230V/380V/440V,customized
Product Description

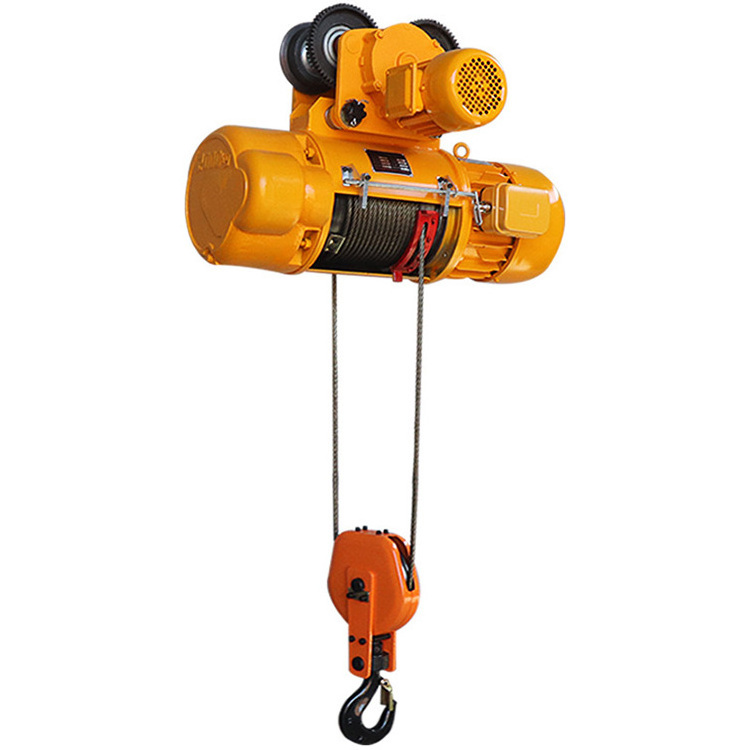

Wire rope electric hoist  is small-sized lifting equipment, which can be mounted on single beam, overhead, gantry and jib cranes, with slight modification; it can also be used as a winch. It is widely used in factories, warehoused, cargo store areas and shops. It is essential equipment in raising working efficiency and improving working conditions.

Specification Double Speed Electric Hoist
Lifting Weight(t) 0.25 0.5 1 2 3 5 10 16 20
Hoisting height(m) 3, 6, 9 3, 6, 9

6, 9, 12,

18, 24, 30

6, 9, 12,

18, 24, 30

6, 9, 12,

18, 24, 30

6, 9, 12,

18, 24, 30

6, 9, 12,

18, 24, 30

9, 12, 18

9, 12, 18

Hoistling speed(m/min) 8 0.8/8 0.8/8 0.8/88 0.8/8 0.8/8 0.7/78 0.35/3.5 4
Travel speed(m/min) 20 20/30 20/30 20/30 20/30 20/30 20/30 20 20

Steel wire

rope

Dia(mm) 3.6 4.8 7.7 11 13 15 15 17.5 19.5
Specification 6*19 6*37+1 6*37+1 6*37+1 6*37+1 6*37+1 6*37+1 6*37+1 6*37+1
Track 16-22b 16-28b 16-28b 20a-32c 20a-32c 25a-45c 32b-63c 45b-63c 56b-63c
Type ZD112-4 ZD121-4 ZD122-4 ZD131-4 ZD132-4 ZD141-4 ZD151-4 ZD151-4 ZD152-4
ZDS0.2/0.8 ZDS0.2/1.5 ZDS0.2/3.0 ZDS0.2/4.5 ZDS0.2/7.5 ZDS0.2/13 ZDS0.2/13

Hoisting

motor

Power(kw) 0.4 0.8;0.2/0.8 1.5;0.2/1.5 3.0;0.4/3.0 4.5;0.4/4.5 7.5;0.8/7.5 13;1.5/13 13;1.5/13 18.5

Rotation

speed (r/min)

1380 1380 1380 1380 1380 1380 1380 1380 1380
Current(A) 1.25 2.4,0.72/4.3 4.3,0.72/4.3 7.6,1.25/7.6 11,2.4/11 18,2.4/18 30,4.3/30 30,4.3/30 41.7
Type ZDY110-4 ZDY111-4 ZDY111-4 ZDY112-4 ZDY112-4 ZDY121-4 ZDY121-4 ZDY121-4 ZDY121-4
Power(kw) 0.06 0.2 0.2 0.4 0.4 0.8 0.8*2 0.8*2 0.8*2

Travel

motor

Rotation

speed (r/min)

1400 1380 1380 1380 1380 1380 1380 1380 1380
Current(A) 0.3 0.72 0.72 1.25 1.25 2.4 2.4 2.4 4.3
Power source Three-phase AC 380V 50HZ
1.Design: International advanced tide compact and nice.

2.Reduce: High strength hard gear surface, inclined gear driving with low noise.
3.Motor: Inside fit plane brake, double winding pole changing control motor, incorporate with reducer, suit higher classification.
4.Wire Rope: The tensile strength is 1760N/mm2.
5.Limit Switch: Cam limit model operate safety.

Certifications

Packaging & Shipping
About Us

Henan FineWork Cranes Co.,Ltd is a professional manufacturer and service supplier of material handling equipment integrating R&D, design, manufacturing, marketing, installation and maintenance; it is also one of the most influential brand in Chinese crane industry.

Our products include EOT cranes, gantry crane, jib crane, electric hoist, and other types of cranes like explosion - proof, insulation, metallurgy and foundry, etc.

Over the years we always dedicated to develop and manufacture high quality crane and hoist, our European type cranes and electric hoists fully comply to FEM/DIN standard. We have acquired the certificates of IS09001, ISO14001, and CE, etc.

Our products have been exported to USA, Britain, Mexico, Argentina, Peru, Russia, Indonesia, Thailand, India, Vietnam, and other countries and regions.

FAQ

1.Is your products customized?

Yes.because the working condition is different, all our products are customized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.

2.What the information should i provide when i am inquiry?

The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much appreciated.

3.How many operation methods for my selection?

The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabinet.
