Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
DECHEN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3550*1450*3100mm
-
Weight:
-
8100KG
-
Blades diameter:
-
2200-3600mm
-
Center distance of blades:
-
1360-1900mm
-
Max. Cutting height:
-
850-1550mm
-
Blades moving speed:
-
0-40mm/min
-
Main motor power:
-
55KW
-
Max. Water consumption:
-
5m3/h
-
Color:
-
Red or customized
-
Product name:
-

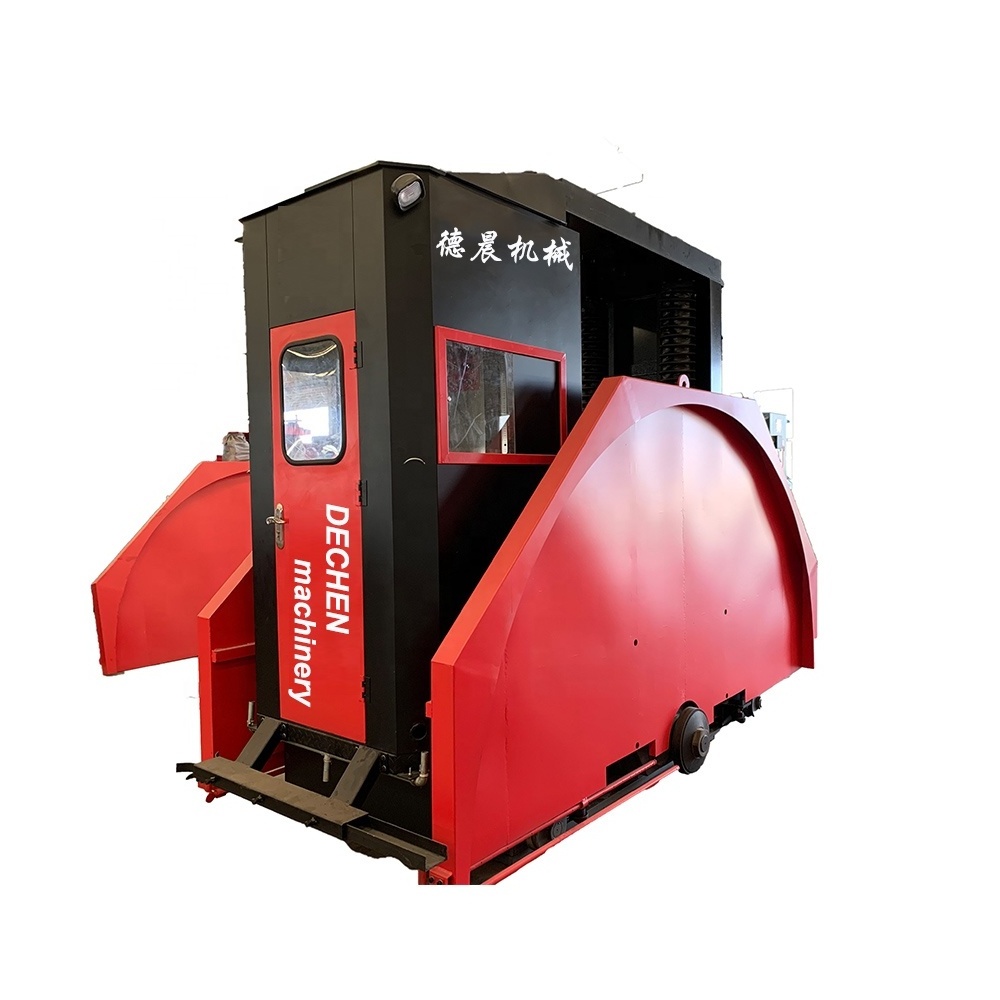

quarry stone cutting machine granite marble block equipment for sale
-
Certification:
-
CE
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
118500
-
Production Capacity:
-
high-speed production
-
Place of Origin:
-
China
-
Brand Name:
-
DECHEN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3550*1450*3100mm
-
Weight:
-
8100KG
-
Blades diameter:
-
2200-3600mm
-
Center distance of blades:
-
1360-1900mm
-
Max. Cutting height:
-
850-1550mm
-
Blades moving speed:
-
0-40mm/min
-
Main motor power:
-
55KW
-
Max. Water consumption:
-
5m3/h
-
Color:
-
Red or customized
-
Product name:
-
quarry stone cutting machine granite marble block equipment for sale
-
Certification:
-
CE
quarry stone cutting machine granite marble block equipment for sale
One stop shopping , Dechen Machinery produces mining equipment , stone processing equipment , to provide customers with a complete stone processing plant design, provide complete after-sales service.
Brief Description
1.Main structure is sturdy and stable with low center of gravity. Equipped with abundant power , the whole machine runs smoothly and is durable. It's suitable for all kinds of granite and marble.
2.With automatic intelligent frequency conversion control technology, buttons and joysticks, more intuitive and simple operation. Higher efficiency .
3. It has a compact structure , with mechanical system, hydraulic system and electrical system integrated, high automation, simple operation and easy-to-use feature.
4.Equipped with big size saw blades, it can be used for the processing of ultra-large rocks and blocks to improve outturn percentage of the mine and make full use of the mineral resource.
5.Disc saw blades cutting is more secure, environmental, lower cost and more efficient than traditional blasting mining method.
6. It will exploit 200 cubic meters stone block in 24 hours,the cost is 14 usd per cubic metr,It’s only 40% of the cost than traditional blasting exploiting way.
T echnical parameter
|
Type |
DTKSJ-3600 |
|
Center distance of blades |
1360-1900mm |
|
Blades diameter |
2200-3600mm |
|
Max. Cutting height |
850-1550mm |
|
Blades moving speed |
0-40mm/min |
|
Main motor power |
55KW |
|
Total power |
118.5KW |
|
Overall size |
3550*1450*3100mm |
|
Gross weight |
8100KG |
|
Max. Water consumption |
5m ³/h |
Feature
1.This style mining machine is for the quarry, mining marble, granite,sanstone and so on raw materials.
2.It can work in wide scope , process kinds of block in variety specifications with high speed cutting.
3.the quarry saw machine has science structure .
4.It is designed with high-speed for cutting so that it can improve speed of mining.
5.It is safer than traditional blowing up mine. And it has low cost , the selected material is lever off. It can reasonably use resource and phase down environmental pollution.
6.The headstock is directly connected to the motor , which effectively improves the power consumption of the motor and reduces equipment failure and maintenance.
7.Horizontal and vertical walking adopts four-wheel drive direct connection to improve
efficiency , reduce chain broken and reduce failure rate.
1. We choo se the top Acce ssories to make sure the machine is strong and durable.
2. Our core components adopt premium brands and materials to extend the use of machines.
The machine endowed with high steadiness,effective and simple in operating characters,Hence,It is suitable to process high value,large size granite and marble slab.
