Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300MM*900MM
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
RUIDA
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EJ
-
Weight (KG):
-
350 KG
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-600mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1300MM*900MM
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
RUIDA
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EJ
-
Weight (KG):
-
350 KG
Product Description

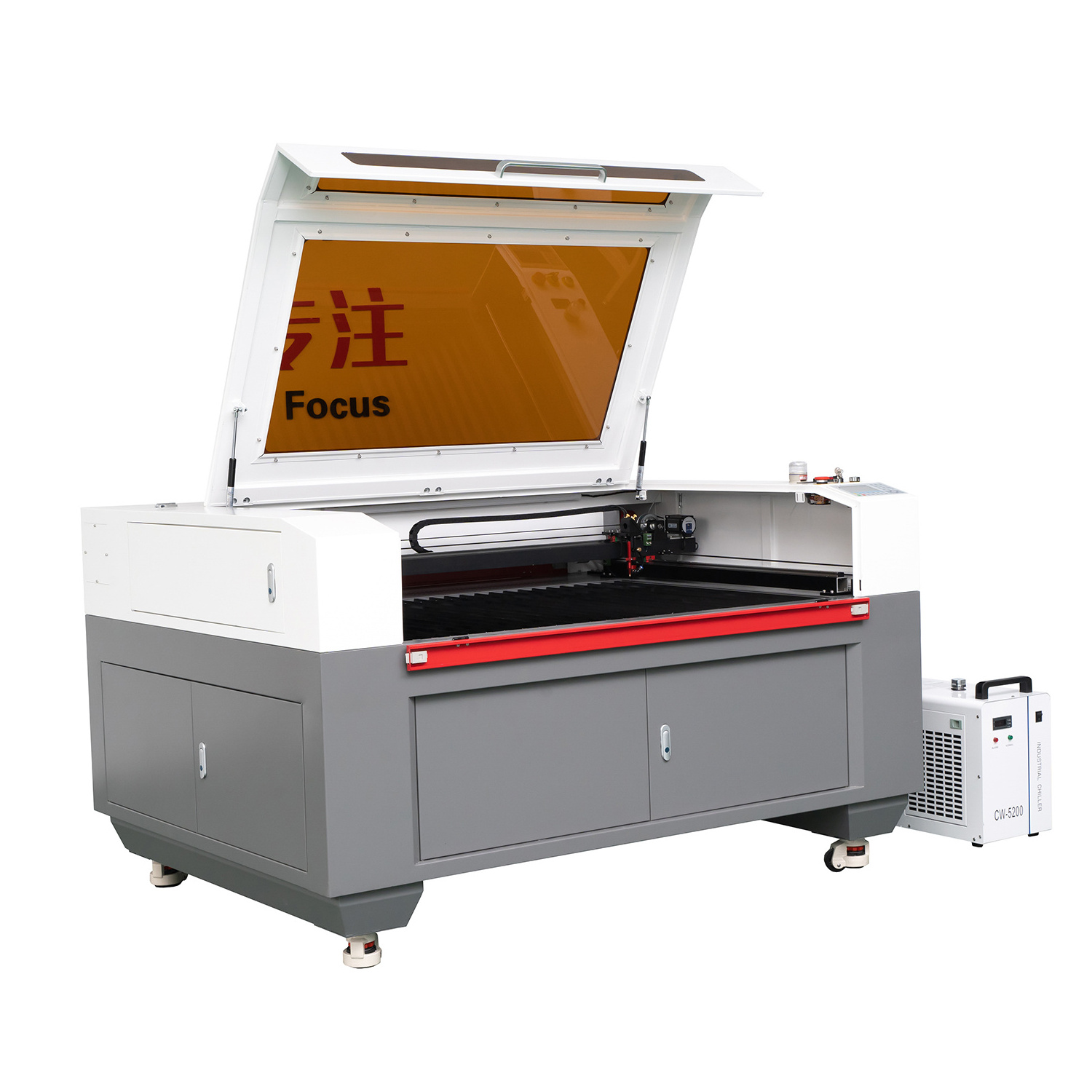

1300*900mm 80w 100w 130w 150w co2 laser cutting machine
YJ-1390 Laser Engraver & Cutter Machine Advantages
1. Heavy Duty Machine body in good rigidity without vibration; 2. Industry foma
wheels single wheels bear weight up to 200kg. Stable and quiet.;3. 3 phase stepping motor drive higher precision low noise;
4. larger cooling capacity chiller CW5200
5.up/down table drived by stepping motor and belt not chain;
6. RDC6445 controller lightburn software compatible;
7.double table: knife table (for hard material) honeycomb table (for soft material);
8. Three windows more easy to inspect laser working.
9. Real-time voltage display ensure machine running safety;
wheels single wheels bear weight up to 200kg. Stable and quiet.;3. 3 phase stepping motor drive higher precision low noise;
4. larger cooling capacity chiller CW5200
5.up/down table drived by stepping motor and belt not chain;
6. RDC6445 controller lightburn software compatible;
7.double table: knife table (for hard material) honeycomb table (for soft material);
8. Three windows more easy to inspect laser working.
9. Real-time voltage display ensure machine running safety;
Specification
|
working area
|
1300mm*900mm
|
|
laser power
|
80w----180w
|
|
laser type
|
co2 glass laser tube
|
|
Drive type
|
Leadshine stepper driver and motor
|
|
Max engraving speed
|
0-1000mm/s
|
|
Max cutting speed
|
0-600mm/s
|
|
Positioning accuracy
|
|
|
Min forming character
|
English word 1mm*1mm
|
|
Resolution Ratio
|
4000DPI
|
|
Output Power of Laser
|
10%~100% continuously to be adjusted
|
|
Working temperature
|
5-45 centigrade
|
|
System Operation Environment
|
WindowsXP/Window 7/8/10/11 32/64bit
|
|
Cooling way
|
Water cooling with industrial cooler
|
|
working voltage
|
220V / 110V 50HZ / 60HZ single phase
|
|
control system
|
RDC6445 mainboard
|
|
Motion system
|
HIWIN Linear guide rail
|
|
Software supported
|
Coreldraw, Autocad,Artcut, Illustrator,Lightburn
|
|
Graphic format supported
|
BMP, PCX, TGA,TIF,PLT ,CDR, etc
|
|
Applicable material
|
Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron,etc. ABS, PES, PVC, etc
|
