Features a DC detection function. If DC available, the system will automatically switch to lithium battery supply when the battery
voltage rise to the DC switching point; the system will automatically switch to DC power supply when the battery voltage falls to
the DC switching point; if DC powers off, the system will shut off output when the battery reaches the over-discharge point after
continuous discharging.
- Product Details
- {{item.text}}
Quick Details
-
Control Mode:
-
APP Control, Remote Control, Switch Control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
sunlux series
-
Color Temperature(CCT):
-
2700-6500K
-
Beam Angle(°):
-
150*65°
-
CRI (Ra>):
-
70
-
Lamp Luminous Efficiency(lm/w):
-
180
-
Lamp Luminous Flux(lm):
-
10800
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-10 - 45
-
Product Weight（kg）:
-
20
-
Battery:
-
18650 lithium battery 12V 50 Ah
-
Chip Brand:
-
Lumileds Luxeon 5050
-
Solar Panel:
-
50W /18V Monocrystalline Silicon
-
Operating time:
-
Full Power >12 Hours, Intelligent Mode 3-4 Days
-
Installation height:
-
4-8 Meters
-
Material:
-
Die Casting Aluminum
-
Size (MM):
-
945x298x127
-
Net Weight (KG):
-
12
-
Power:
-
20w 40w 60w
Quick Details
-
Warranty(Year):
-
3-Year
-
Power Supply:
-
Battery
-
Lighting solutions service:
-
Lighting and circuitry design
-
Control Mode:
-
APP Control, Remote Control, Switch Control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
sunlux series
-
Color Temperature(CCT):
-
2700-6500K
-
Beam Angle(°):
-
150*65°
-
CRI (Ra>):
-
70
-
Lamp Luminous Efficiency(lm/w):
-
180
-
Lamp Luminous Flux(lm):
-
10800
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-10 - 45
-
Product Weight（kg）:
-
20
-
Battery:
-
18650 lithium battery 12V 50 Ah
-
Chip Brand:
-
Lumileds Luxeon 5050
-
Solar Panel:
-
50W /18V Monocrystalline Silicon
-
Operating time:
-
Full Power >12 Hours, Intelligent Mode 3-4 Days
-
Installation height:
-
4-8 Meters
-
Material:
-
Die Casting Aluminum
-
Size (MM):
-
945x298x127
-
Net Weight (KG):
-
12
-
Power:
-
20w 40w 60w
Product Description
Features

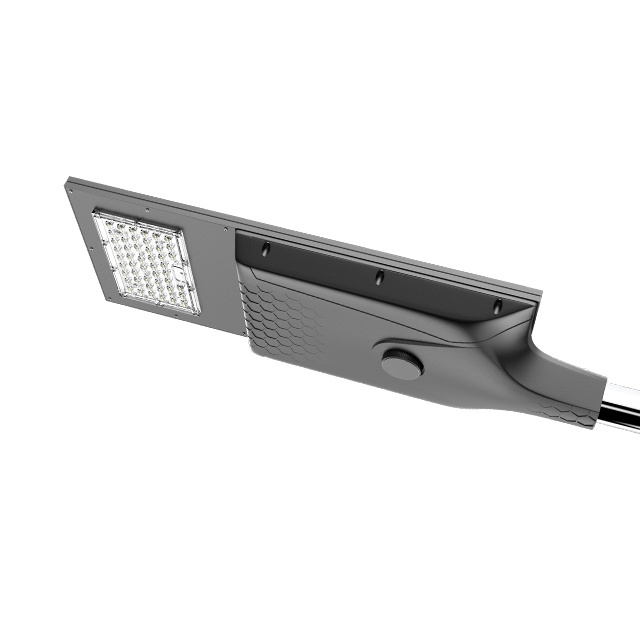

1. The lamp adopts integrated structure design, with better heat dissipation design and longer life;
2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to 200lm/W;
3. The solar panel is made of Monocrystalline silicon, with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;
4. Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs;
5. It has functions of light control, time control, dimming, intelligent power saving + morning light;
6. Solar controller built-in lightning protection module;
7. Using LiFePO4 battery technology, the battery capacity is high;
8. 365 days uninterrupted power.
9. Three control model: Time control + light sensor control + motion sensor control
Time control: It can be divided into 5 time periods, which is more humane and energy-saving;
Light sensor control: When the evening comes, when the solar panel battery voltage is lower than 3V, the lamp will automatically turn on;
Motion sensor control: A motion-sensing energy-saving mode. When a moving object is sensed, the lamp will have 100% brightness;when no moving object is sensed, the lamp will be in a low-power and energy-saving state, with a brightness of 10%-100% (can be set)
2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to 200lm/W;
3. The solar panel is made of Monocrystalline silicon, with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;
4. Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs;
5. It has functions of light control, time control, dimming, intelligent power saving + morning light;
6. Solar controller built-in lightning protection module;
7. Using LiFePO4 battery technology, the battery capacity is high;
8. 365 days uninterrupted power.
9. Three control model: Time control + light sensor control + motion sensor control
Time control: It can be divided into 5 time periods, which is more humane and energy-saving;
Light sensor control: When the evening comes, when the solar panel battery voltage is lower than 3V, the lamp will automatically turn on;
Motion sensor control: A motion-sensing energy-saving mode. When a moving object is sensed, the lamp will have 100% brightness;when no moving object is sensed, the lamp will be in a low-power and energy-saving state, with a brightness of 10%-100% (can be set)
AC/DC Hybrid Solar Power System
