Quick Details
-
WIFI:
-
NO
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JJ
-
Model Number:
-
BCZ8050
-
IP level:
-
IP66
-
Product name:
-
explosion proof plug socket
-
Warranty:
-
1 Year
-
Function:
-
Electrical Outlet Connection
-
Material:
-
ABS
-
Keyword:
-
explosion proof plug and socket
-
Feature:
-
Easy Installation
-
Standard:
-
Fully CE ROHS Approved
-
Plug type:
-
3pin/4pin/5pin
-
Voltage:
-
220/380VAC
-
Current:
-
16A/32A/63A
Quick Details
-
Rated Voltage:
-
220V AC
-
Rated Current:
-
32A, 16A
-
Application:
-
Industrial
-
WIFI:
-
NO
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JJ
-
Model Number:
-
BCZ8050
-
IP level:
-
IP66
-
Product name:
-
explosion proof plug socket
-
Warranty:
-
1 Year
-
Function:
-
Electrical Outlet Connection
-
Material:
-
ABS
-
Keyword:
-
explosion proof plug and socket
-
Feature:
-
Easy Installation
-
Standard:
-
Fully CE ROHS Approved
-
Plug type:
-
3pin/4pin/5pin
-
Voltage:
-
220/380VAC
-
Current:
-
16A/32A/63A
Applications
1. Suitable for ambient temperature:-20℃ ~ +40℃;
2. Suitable for dangerous places of explosive gas mixture: 1 zone and 2 zone;
3. Suitable for combustible dust places: 21 and 22 districts
4. Suitable for dangerous environment such as petroleum exploitation, refining, chemical industry, military industry, offshore oil
platform, oil tanker, metal processing, etc;
5.Implementation standards: GB 3836.1-2010/GB 3836.2-2010/GB 3836.3-2010
GB 12476.1-2013/GB 12476.5-2013
Details Images

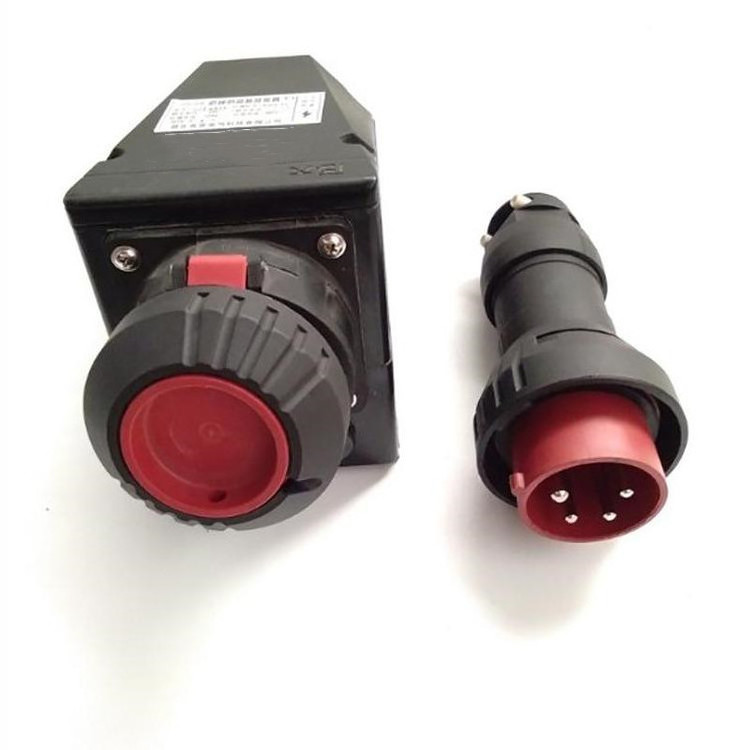

Models: BCZ8050
Material: glass fiber reinforced unsaturated polyester resin pressed or welded with high-quality stainless steel
Models: AC
Material: Aluminum Alloy
Models: YT/GZ
Material: Aluminum Alloy
|
Type:
|
Plug & Socket
|
|
|
||
|
Ex rate
|
Ex d e IIC T6 Gb
|
|
|
||
|
Rated Current
|
16A
|
32A
|
63A
|
||
|
Rated Voltage
|
220v/380v
|
|
|
||
|
Degree of protection
|
IP65
|
|
|
||
|
Entries
|
M25*1.5 (suitable for Φ8mm-Φ17mm cable)
|
M40*1.5 (suitable for Φ13mm-Φ27mm cable)
|
M40*1.5 (suitable for Φ13mm-Φ27mm cable)
|
||
|
The cable for plug
|
Φ8mm-Φ19mm
|
Φ12mm-Φ28mm
|
Φ12mm-Φ28mm
|
||
Specification
Features
1. The shell is made of glass fiber reinforced unsaturated polyester resin pressed or welded with high-quality stainless
steel. It is corrosion-resistant, antistatic, impact-resistant and has good thermal stability.
2. Stainless steel exposed fasteners, high corrosion resistance.
3. The enclosure is Safety-increasing type with flameproof switch inside.
4. Pluas are connected to electrical equipment.
5. The socket is equipped with reliable mechanical interlocking device, that is, the switch can be closed only after the pluą is inserted into the socket, and the plug can be pulled out after the switch is disconnected.
6. The socket is equipped with a protective cover. After the plua is pulled out, the socket is covered with a protective cover to prevent sundries from.entering
7. Steel pipe or cable wiring is acceptable.
steel. It is corrosion-resistant, antistatic, impact-resistant and has good thermal stability.
2. Stainless steel exposed fasteners, high corrosion resistance.
3. The enclosure is Safety-increasing type with flameproof switch inside.
4. Pluas are connected to electrical equipment.
5. The socket is equipped with reliable mechanical interlocking device, that is, the switch can be closed only after the pluą is inserted into the socket, and the plug can be pulled out after the switch is disconnected.
6. The socket is equipped with a protective cover. After the plua is pulled out, the socket is covered with a protective cover to prevent sundries from.entering
7. Steel pipe or cable wiring is acceptable.
Features
1. Aluminum alloy die-casting shell, high-speed shot peening treatment, surface high-voltage electrostatic spraying, corrosion resistance, anti-aging.
2. Stainless steel exposed fasteners, high corrosion resistance.
3. The plug has built-in interlocking mechanism. Only when the switch in the socket breaks, the plug can be pulled out.
4. Steel pipe or cable wiring is acceptable
2. Stainless steel exposed fasteners, high corrosion resistance.
3. The plug has built-in interlocking mechanism. Only when the switch in the socket breaks, the plug can be pulled out.
4. Steel pipe or cable wiring is acceptable
