SS304 Shell and Pressure Connector
Relay Output
Over-voltage protected
Reverse voltage protected
Alarm Pressure can be Adjusted from 0 to Full
IP65
Air measurement and control
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Senyd
-
Model Number:
-
XDS100
-
Max. Current:
-
0.5A 120VAC or 1A 24VDC
-
Max. Working Pressure:
-
500Bar(72500psi)
-
IP level:
-
IP65
-
Color:
-
Stainless steel
-
Pressure Range:
-
0-1Bar(14.5psi)......500bar(72500psi)
-
Power supply:
-
24VDC
-
output signal:
-
Relay output
-
Accuracy:
-
±1%FS /±0.5%F.S /± 0.25%FS
-
operating temperature:
-
-20....60℃
-
long time stability:
-
±0.5%FS/year
-
pressure connection:
-
G1/4(customizable)
-
electrical connection:
-
M12 connector(8pin)
-
housing material:
-
SSL304(customizable)
-
IP rating:
-
IP65
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
32VDC
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Senyd
-
Model Number:
-
XDS100
-
Max. Current:
-
0.5A 120VAC or 1A 24VDC
-
Max. Working Pressure:
-
500Bar(72500psi)
-
IP level:
-
IP65
-
Color:
-
Stainless steel
-
Pressure Range:
-
0-1Bar(14.5psi)......500bar(72500psi)
-
Power supply:
-
24VDC
-
output signal:
-
Relay output
-
Accuracy:
-
±1%FS /±0.5%F.S /± 0.25%FS
-
operating temperature:
-
-20....60℃
-
long time stability:
-
±0.5%FS/year
-
pressure connection:
-
G1/4(customizable)
-
electrical connection:
-
M12 connector(8pin)
-
housing material:
-
SSL304(customizable)
-
IP rating:
-
IP65
Product Overview

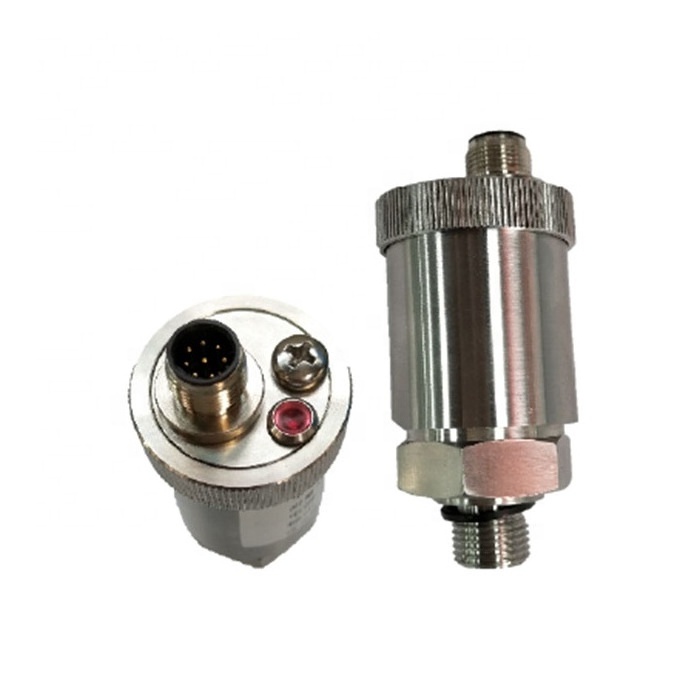

XDS100 series pressure switch
The pressure switch for general purpose is the ideal solution for general industrial applications.
These measuring ranges can be combined in almost any way with relay output signal. When the pressure is higher than the alarm pressure point (at the case of high alarm), the LED turns on, and NO port is connected to COM port, NC port is isolated from COM port; and this situation will be kept, till the pressure is lower than the release pressure point.
Furthermore, it offers three options for the accuracy 0.5 % F.S, 0.25% and 1 %F.S.
All variants described in this data sheet are available on very short lead times. For particularly urgent demands, there is a sizeable stock available.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
pressure range
|
0-1bar....500bar
|
|
overload pressure
|
≥150%FS
|
|
accuracy
|
±1%，±0.5 ，±0.25%
|
|
response time
|
≤10ms
|
|
output signal
|
relay output
|
|
current without load
|
≤8mA
|
|
insulate resistance
|
≥100MΩ@100vdc
|
|
random vibration
|
10g.5-2000hz
|
|
shock
|
x,y,z 20g sine 11ms
|
|
pressure connection
|
G1/2,G1/4,M20*1.5,NPN1/2,NPT1/4,others
|
|
seal material
|
NBR O-ring default(-20...100℃）, FKM optional（-15....135℃）
|
