Quick Details
-
Weight:
-
175 KG
-
Marketing Type:
-
hot-sale products
-
Drilling Diameter:
-
50-80mm
-
Drilling Depth:
-
Max.15m
-
Mobility:
-
portable
-

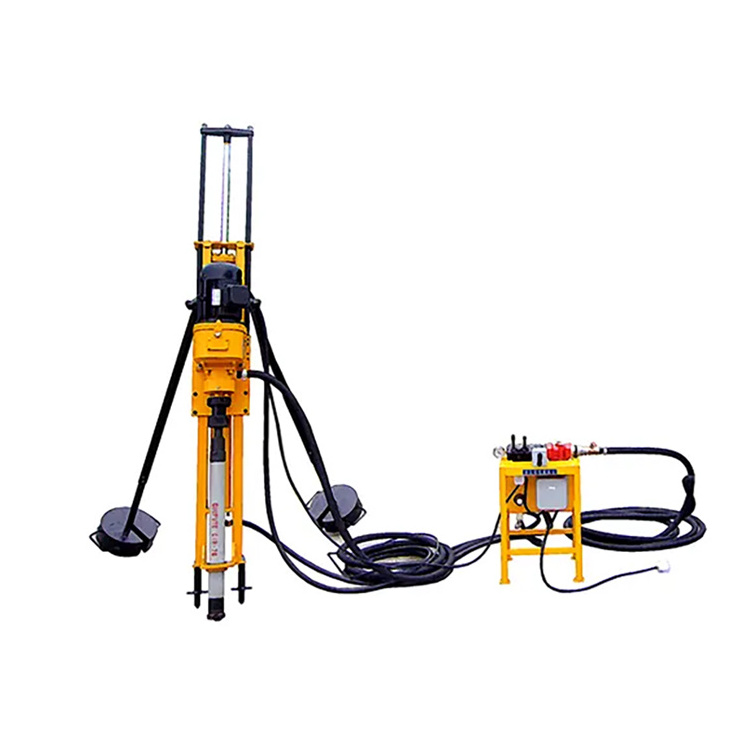

Product name:
-
DTH Drilling Rig
-
Keyword:
-
15m blasting small Portable electric down the Hole Drilling
-
Depth:
-
15m
-
Diameter:
-
50-80mm
-
One time advance:
-
1000mm
-
Air Cousumption:
-
3.5m3/min
-
Working Pressure:
-
0.5-0.7Mpa
-
Cylinder Diameter:
-
90mm
-
Power:
-
3kw
-
Swing Speed:
-
90r/min
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ruifan
-
Voltage:
-
380V
-
Weight:
-
175 KG
-
Marketing Type:
-
hot-sale products
-
Drilling Diameter:
-
50-80mm
-
Drilling Depth:
-
Max.15m
-
Mobility:
-
portable
-
Product name:
-
DTH Drilling Rig
-
Keyword:
-
15m blasting small Portable electric down the Hole Drilling
-
Depth:
-
15m
-
Diameter:
-
50-80mm
-
One time advance:
-
1000mm
-
Air Cousumption:
-
3.5m3/min
-
Working Pressure:
-
0.5-0.7Mpa
-
Cylinder Diameter:
-
90mm
-
Power:
-
3kw
-
Swing Speed:
-
90r/min
Products Description
Features:
1.Configuration of the power, meet the needs of all kinds of construction situation.
2.Using hydraulic technology, energy saving efficiency.
3.Original bracket tooth plate positioning,structure design, stable and reliable.
4. With national patent technology mercury split type hydraulic station, make drill shift more convenient, effectively reduce the labor intensity.
5. Good detachability, suitable for all kinds of original landform operation.
6. Advanced design, reasonable structure of the hydraulic oil cooling system, reduce the weight of the mercury hydraulic station, mobile is extremely convenient.
7. Lower initial investment and good economic benefit.
1.Configuration of the power, meet the needs of all kinds of construction situation.
2.Using hydraulic technology, energy saving efficiency.
3.Original bracket tooth plate positioning,structure design, stable and reliable.
4. With national patent technology mercury split type hydraulic station, make drill shift more convenient, effectively reduce the labor intensity.
5. Good detachability, suitable for all kinds of original landform operation.
6. Advanced design, reasonable structure of the hydraulic oil cooling system, reduce the weight of the mercury hydraulic station, mobile is extremely convenient.
7. Lower initial investment and good economic benefit.
Product Parameter
|
Model
|
HQD70
|
HQD100A
|
HQF100
|
|
Rock hardness
|
F=6~20
|
F=6~20
|
F=6~20
|
|
Borehole Dia.(mm)
|
50-80
|
68-130
|
68-130
|
|
Borehole Depth(m)
|
≥15
|
≥20
|
≥20
|
|
One-time advanced length(mm)
|
1000
|
1000
|
1000
|
|
Swing speed(r/min)
|
90
|
90
|
110-160
|
|
Air consumption(m3/min)
|
≥3.5
|
≥7
|
≥12
|
|
Working pressure(Mpa)
|
0.5-0.7
|
0.5-0.7
|
0.5-0.7
|
|
Cylinder dia.(mm)
|
90
|
140
|
140
|
|
Power(kw)
|
3
|
4
|
4
|
|
Max. lifting force(N)
|
4200
|
7000
|
7000
|
|
Max.push force(N)
|
3500
|
5000
|
5000
|
|
Weight(kg)
|
175
|
260
|
260
|
Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
