Quick Details
-
Model Number:
-
CX-03
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
10Bar
-
Product name:
-
Pressure Control Switch
-
Color:
-
Black/Blue
-
Starting pressure setting:
-
1-2.5Bar
-
Protection rating:
-
IP65
-
Head meter:
-
15-25meters
-
Application:
-
Liquid
-
Frequency:
-
50HZ/60HZ
-
Max power:
-
1.1KW
-
Connection:
-
1'' Male
-
Certification:
-
ccc
Quick Details
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
CXZTCL
-
Model Number:
-
CX-03
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
10Bar
-
Product name:
-
Pressure Control Switch
-
Color:
-
Black/Blue
-
Starting pressure setting:
-
1-2.5Bar
-
Protection rating:
-
IP65
-
Head meter:
-
15-25meters
-
Application:
-
Liquid
-
Frequency:
-
50HZ/60HZ
-
Max power:
-
1.1KW
-
Connection:
-
1'' Male
-
Certification:
-
ccc

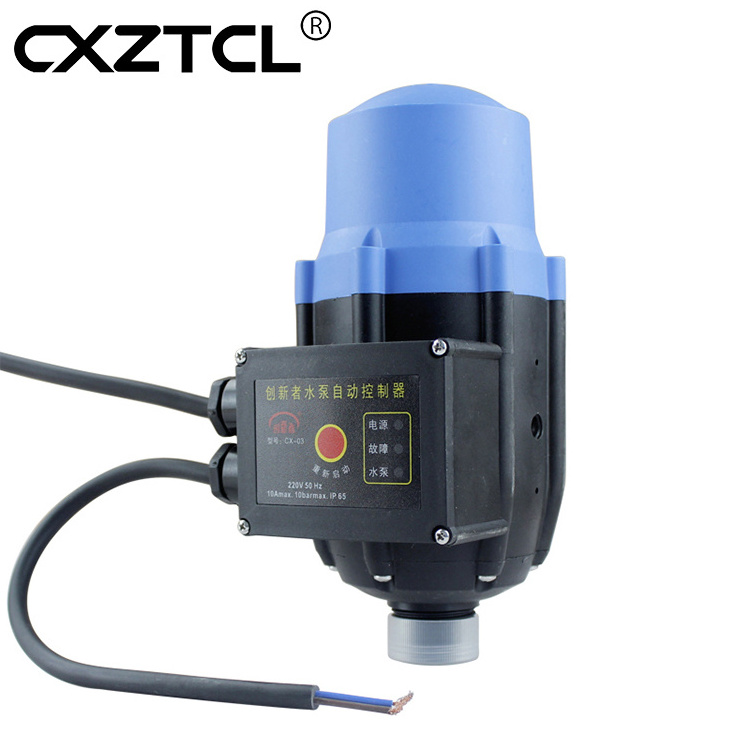

CX-03 Plastic Adjustable Automatic Electronic Pressure Controller Switch For Water Pump 3
Features
1.Automatic on/off operation
2.Dry run protection
3.24 hour automatic restart to test for rainwater
4.Easy plug and play installation - no electrician required
5.Built in non-return valve
5.In-Built 10Bar pressure gauge
6.Maintains a constant pressure from the pump during operation resulting in a reliable water supply
| Input Voltage | 220V |
| Protection Grade | IP65 |
| Working Temperature | 60°C |
| Maximum Power | 1.1KW |
| Maximum pressure setting | 1bar |
| Frequency | 50-60Hz |
| Maximum Current | 10A |
| Adjustable pressure setting | 0.5-1bar 1.0 -2.5bar 1.5-3.0bar |
| Not adjustable pressure setting | 1.5bar |
Other Designs
|
|
|
| CX-07 | CX-08 |
|
|
|
| CX-01 | CX-04 |
