Factory Cost Price Full Automatic I
ntegrated

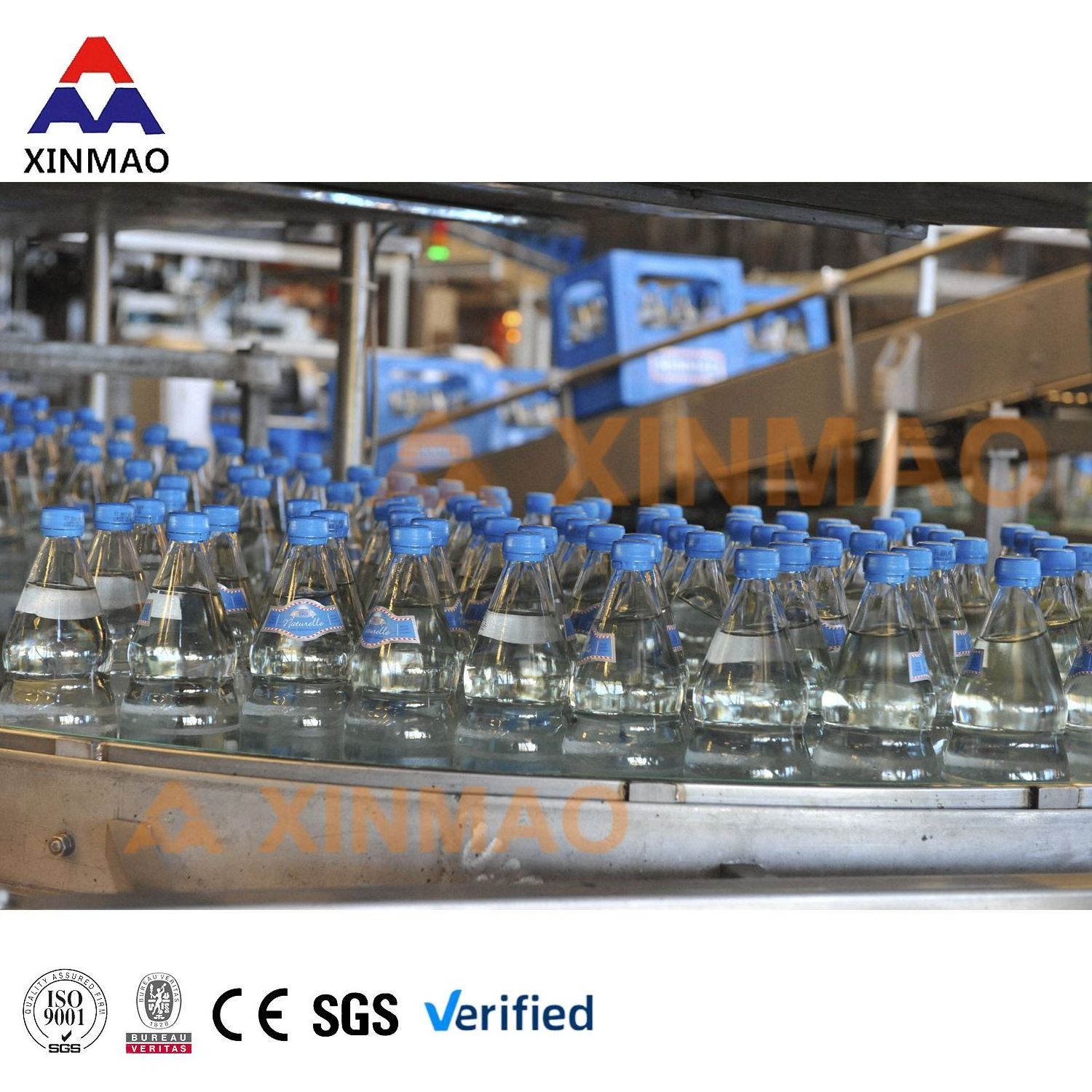

Drinking Mineral Pure Water Bottle Filling Machine Plant
*We supply complete solution for the pure drinking mineral water PET bottle filling plant . Including : Water Filtration treatment system / PET Bottle Washing filling capping machine / Code sprayer / Automatic labeling machine / Automatic packing machine / Automatic Palletizer system / Automatic film wrapping machine and son on.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
99.97%
-
Voltage:
-
380V 50Hz/ by order
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINMAO
-
Dimension(L*W*H):
-
2800*1800*2300mm
-
Weight:
-
4500 KG
-
Material:
-
SUS 304 stainless steel
-
Situation:
-
Silvery white, brand new
-
bottle type:
-
mineral water production line
-
Bottle volume:
-
200ml to 2000ml
-
Filling capacity:
-
1000 to 25000 bottle per hour
-
Control:
-
electric control box
-
Keywords:
-
packing filling machine
-
After Warranty Service:
-
Video technical support, Online support
-
Certification:
-
CE ISO
-
Main Material:
-
SUS304/SUS316
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, Other, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Water
-
Filling Accuracy:
-
99.97%
-
Voltage:
-
380V 50Hz/ by order
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINMAO
-
Dimension(L*W*H):
-
2800*1800*2300mm
-
Weight:
-
4500 KG
-
Material:
-
SUS 304 stainless steel
-
Situation:
-
Silvery white, brand new
-
bottle type:
-
mineral water production line
-
Bottle volume:
-
200ml to 2000ml
-
Filling capacity:
-
1000 to 25000 bottle per hour
-
Control:
-
electric control box
-
Keywords:
-
packing filling machine
-
After Warranty Service:
-
Video technical support, Online support
-
Certification:
-
CE ISO
-
Main Material:
-
SUS304/SUS316
Investment Profit Analysis Form
Product introduction
Product introduction
This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations.
The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
XINMAO Bottle line automatic water filling machine/water filling machine for sale
Washing Part
Function : washing bottle inside and outside dust .
<1>All 304/316 Stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump
Filling Part
Fucntion : filling water into bottle .
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping Part
Function : put caps on bottle .
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash
during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
Products Parameters
We supply complete solution for the pure drinking mineral water PET bottle filling plant. Including: Water Filtration treatmentsystem/PET Bottle Washing filling capping machine/Code sprayer /Automatic labeling machine/ Automatic packing machine / Automatic Palletizer system/ Automatic film wrapping machine and son on
200ml to 2L Bottle Sizes
5L & 10L Bottle Sizes
3Gallon to 5Gallon Bottle sizes
|
Model
|
CGF 8-8-3
|
CGF14-12-5
|
CGF16-16-5
|
CGF24-24-8
|
CGF32-32-10
|
CGF40-40-12
|
CGF50-50-15
|
|
Capacity (BPH)
|
1000-2000
|
3000-5000
|
6000-8000
|
8000-12000
|
12000-15000
|
16000-20000
|
20000-24000
|
|
Power supply
|
1.5KW
|
1.5 KW
|
2.2 KW
|
3 KW
|
4 KW
|
7.5 KW
|
9.5 KW
|
|
Overall dimension
|
2000×1550×2650
|
2360×1770×2700
|
2760×2060×2700
|
2800×2230×2700
|
3550×2650×2700
|
4700×3320×2700
|
5900×4150×2700
|
|
Weight (KG)
|
1100
|
2500
|
3500
|
4200
|
5500
|
6800
|
7600
|
Water Treatment System
This water treatment system is made by the raw water tank through the pretreatment to reverse osmosis desalting device to get pure water. Pretreatment is by silica sand filter, activated carbon filter, sodium ion exchanger and the precision filter composition.The reverse osmosis device the core parts adopt the world famous water pump and reverse osmosis RO membrane.
Full Electric Blow Molding Machine
Automatic blowing machine adopts our most advanced blowing technologies. This machine is a fully automatic,high intelligent,stable and reliable blowing machine,with simple structure,and low energy consumption. It is very popular and well used in food,beverages,cosmetics,pharmaceutical industry.
Automatic PVC Shrink Labeling Machine
Application: PVC / PET / OPS label sleeve * Stainless steel Main Machine Frame / Famous electrical components
Automatic PE Film Shrink Wrapping Machine
Shrink wrapping machine is suitable for wrapping and packaging of such products as pop-top, mineral water, bottles beer, drinks etc without bottom-tray(or with bottom-tray). Working with PE shrink tunnel to pack the goods perfectly. The whole producing of shrink wrapping machine process adopt the Germany advanced technology. It main parts of shrink wrapping machine are imported from international famous companies, capability stable and using long-time.
1.Water treatment system (Reverse Osmosis) 2.Automatic PET bottle blowing machine 3. Air conveyor system (Empty bottle) 4.Washingfilling capping 3in1 machine 5. Blow dryer 6. Code Sprayer 7.Automatic bottle labeling machine 8.Conveyor system (filled bottle) 9.Automatic packing machine
Layout Drawings Design (CAD )
1.PET Bottle Blowing Machine 2.Washing Filling Capping Machine 3.Cap elevator 4.Code sprayer 5.Conveyor System 6.Automatic labeling Machine 7. Auotmatic PE film shrink wrapping machine
Real Picture Of Customer Factory
