The company's patented product never leaks the temperature control valve core, adopts four imported EPDM high temperature resistant, anti-aging O-rings, and then adds the top pressure cap packing structure. The packing is made of high temperature resistant and wear resistant polytetrachloroethylene. . Even if all four O-rings are damaged during use, it is easy to solve the problem of maintenance difficulties caused by leakage of the product during the heating season by pressing the cap.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Kaibeili or OEM
-
Product name:
-
copper radiator mixing thermostatic valve
-
Body material:
-
Hot forged brass
-
Certificate:
-
ISO9001
-
Color:
-
Nickel Plated
-
Working pressure:
-
1.6Mpa
-
Usage:
-
Household
-
Packing:
-
standard
-
Working medium:
-
Water
-
MOQ:
-
1 pcs
-
Keyword:
-
thermostatic valve
Quick Details
-
Port Size:
-
1/2"-1"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
HWF-0001
-
Brand Name:
-
Kaibeili or OEM
-
Product name:
-
copper radiator mixing thermostatic valve
-
Body material:
-
Hot forged brass
-
Certificate:
-
ISO9001
-
Color:
-
Nickel Plated
-
Working pressure:
-
1.6Mpa
-
Usage:
-
Household
-
Packing:
-
standard
-
Working medium:
-
Water
-
MOQ:
-
1 pcs
-
Keyword:
-
thermostatic valve
Product Description
1. Nominal pressure: 1.6Mpa
2. Working medium: hot and cold water
3. Working temperature: -20℃≤T≤100℃
4. Standard: Test pressure meets ISO5208 standard
Pipe thread conforms to ISO228 standard
5. Certification: ISO9001
6.Note: PPR. PB. PERT hot melt heads are interchangeable
|

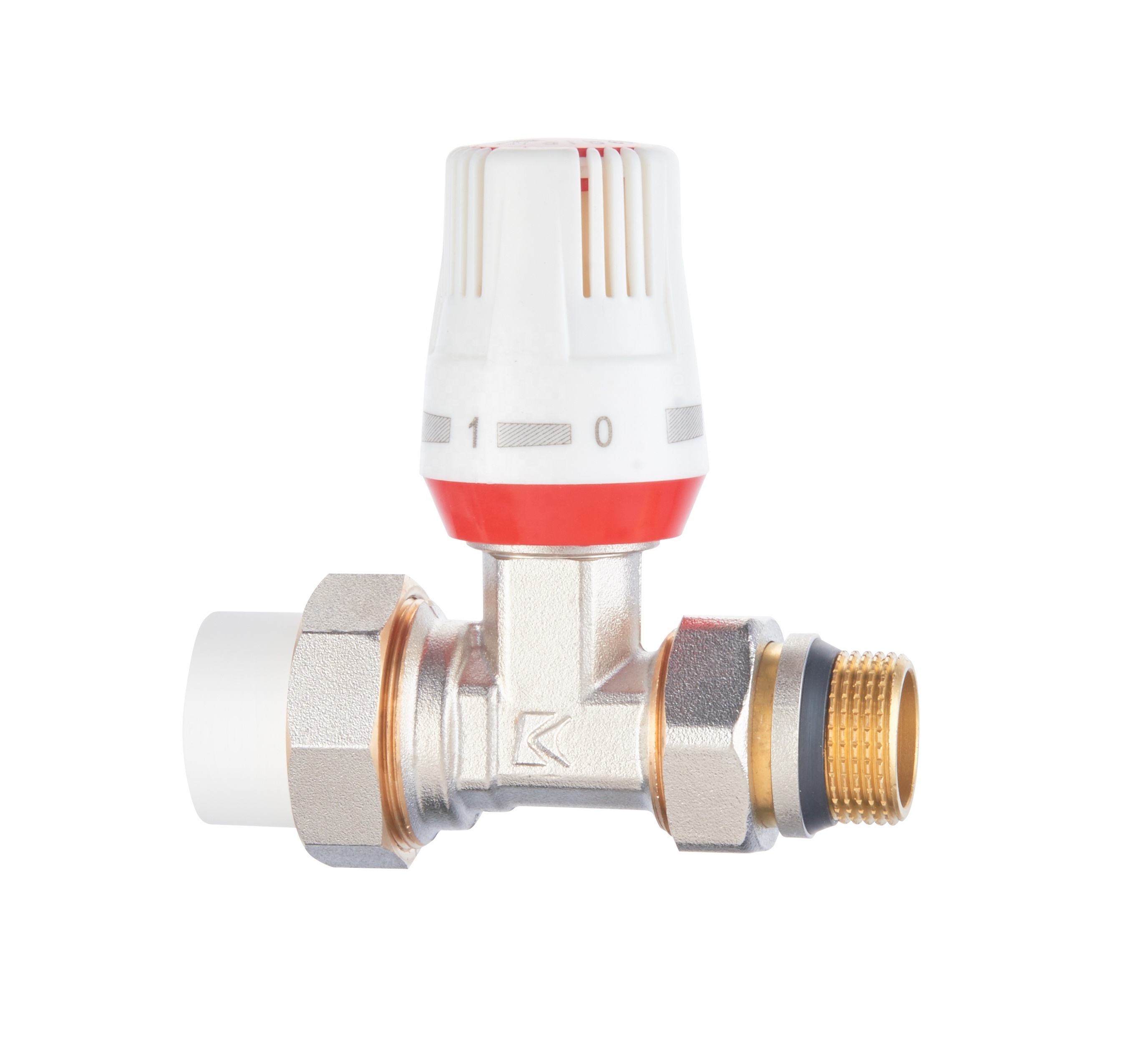

Product Name
|
copper radiator mixing thermostatic valve
|
|
Material
|
Brass 59-1 57-3
|
|
Color
|
Nickel plated
|
|
Standard
|
ISO9001 Test pressure: ISO5208 Pipe thread: ISO228
|
|
Grade
|
WK-190ASelf-sealing
|
|
Thread
|
External thread Live connection PPR
|
Products Dimensions
|
DN
|
SIZE
|
H
|
L
|
B
|
D
|
|
15
|
1/2"X20
|
70
|
96
|
10
|
38
|
|
20
|
3/4"X20
|
75
|
105
|
15
|
43
|
|
20
|
3/4"X25
|
75
|
110
|
15
|
43
|
|
25
|
1"X32
|
87
|
125
|
20
|
46
|
