Quick Details
-
Weight (KG):
-
380
-
Voltage:
-
220/50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tentoo
-
Dimension(L*W*H):
-
L 970*W680*H1950
-
Model Number:
-
TTV-380
-
Material:
-
Stainless Steel/Painted Steel
-
Capacity:
-
20-60Bag/Min
-
Bag Type:
-
Pillow Bag/3 side sealing /4 side sealing
-
Max Film Width:
-
320mm
-
Weight can pack:
-
10g-300g(Depends on material)
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Pouch
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
380
-
Voltage:
-
220/50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tentoo
-
Dimension(L*W*H):
-
L 970*W680*H1950
-
Model Number:
-
TTV-380
-
Material:
-
Stainless Steel/Painted Steel
-
Capacity:
-
20-60Bag/Min
-
Bag Type:
-
Pillow Bag/3 side sealing /4 side sealing
-
Max Film Width:
-
320mm
-
Weight can pack:
-
10g-300g(Depends on material)

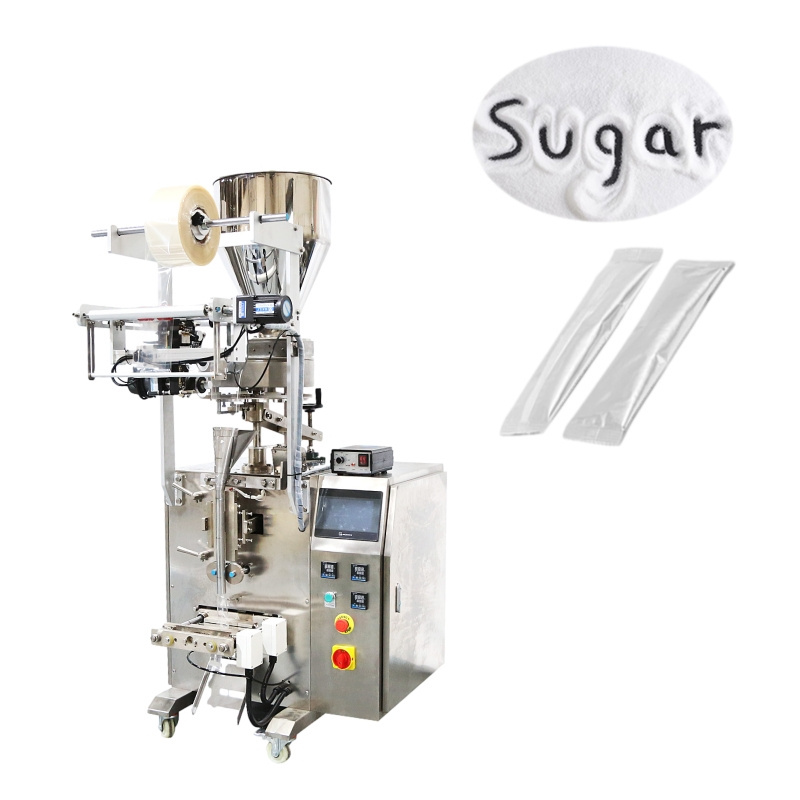

Product Application
1.The whole body 304 stainless steel high-precision structure, rust and durable, easy operation and maintenance.
2.PLC, touch screen, stepper motor control, bag length set convenient and accurate.
3.Frequency control, bag more convenient and smooth, simple and quick, save time and film.
4.High sensitivity photoelectric eye color mark tracking, digital input sealing and cutting position, so that the sealing and cutting position more accurate.
5.Temperature independent PID control, better adapt to a variety of packaging materials.
6.From filling, bagging, printing date, inflatable (exhaust) one-time completion.
7.Drive system is simple, more reliable, more convenient maintenance.
8.All controls are implemented by software to facilitate functional adjustment and technology upgrades, never lagging behind.
|
Main Machine Specification
|
|
|
|
|||
|
Model
|
TT-380
|
|
|
|||
|
Film width
|
max 320mm
|
|
|
|||
|
Bag length
|
max 220mm
|
|
|
|||
|
Bag width
|
50-150mm
|
|
|
|||
|
Packaging Rate
|
5-60bags/min
|
|
|
|||
|
Measurement Range
|
50-500ml
|
|
|
|||
|
Film Thickness
|
0.04-0.08mm
|
|
|
|||
|
Power
|
220V 50/60Hz 2KW
|
|
|
|||
|
Machine Size
|
970*680*1950
|
|
|
|||
|
Machine Quality
|
About 300KG
|
|
|
|||
|
Optional device
|
Date coder, Hole punching device (Pinhole,Round hole, The butterfly hole), Linking bag control device, Airfilling device, Air exhaust device. Tear notch device, Nitrogen inflation device, Gusset bag
|
|
|
|||
After-sale Services:
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Tentoo engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guranty for machine, two years guaranty for electrical part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. TENTOO has an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.
