- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
OD18 New Capacitive Touch Interact Board
-
Weight:
-
68.5 kg
-
Aspect Ratio:
-
2000:1
-
Packing Dimension:
-
1846*215*1180mm
-
Product Dimension:
-
1705.8*1013.5*88.9 mm
-
Product name:
-

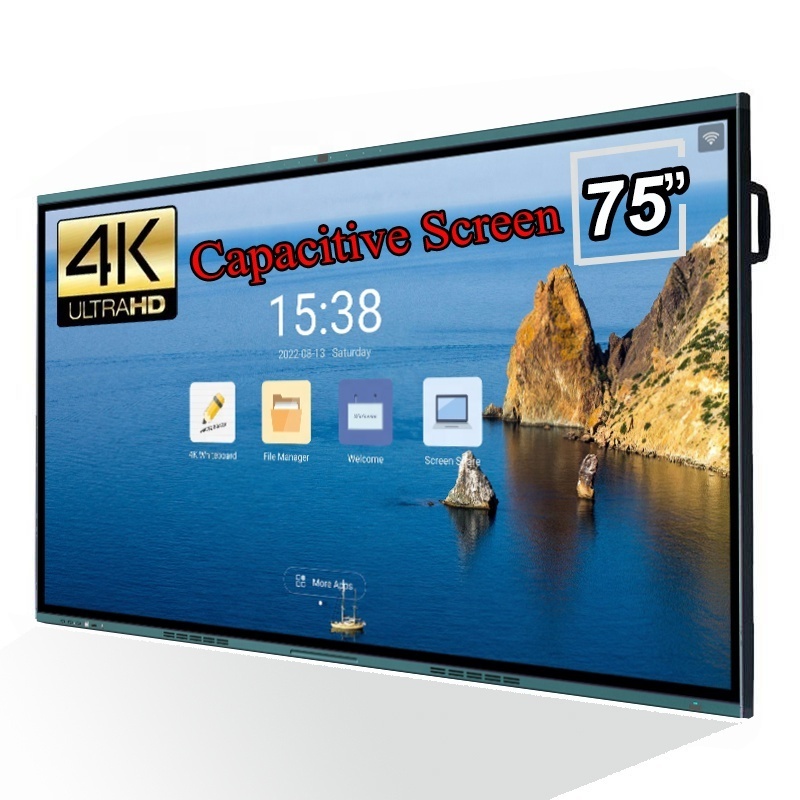

75 Inch Capacitive Touch Interactive Flat Panel Smart Whiteboard
-
Touch screen:
-
20 Point IR Touch panel
-
Brightness:
-
450cd/m2 (brightness can be customized)
-
Installation Way:
-
Wall mounted (Floor stand Optional)
-
Panel brand:
-
LG/BOE/AUO/CSOT (100% A+ Grade Brand Panel)
-
Operating system:
-
Android 8.0 and above+Win7/10/11 Optional
-
Certificate:
-
CE/FCC/ROHS
-
WIFI & Hotspot:
-
Dual WIFI (5G & 2.4G )
-
Application:
-
For Classroom, Training Room, Meeting Room, Home etc..
-
Warranty:
-
Standard 1 Year
Quick Details
-
Panel Size:
-
1648*926.2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GeeKing / SKD / OEM ODM
-
Model Number:
-
OD18 New Capacitive Touch Interact Board
-
Weight:
-
68.5 kg
-
Aspect Ratio:
-
2000:1
-
Packing Dimension:
-
1846*215*1180mm
-
Product Dimension:
-
1705.8*1013.5*88.9 mm
-
Product name:
-
75 Inch Capacitive Touch Interactive Flat Panel Smart Whiteboard
-
Touch screen:
-
20 Point IR Touch panel
-
Brightness:
-
450cd/m2 (brightness can be customized)
-
Installation Way:
-
Wall mounted (Floor stand Optional)
-
Panel brand:
-
LG/BOE/AUO/CSOT (100% A+ Grade Brand Panel)
-
Operating system:
-
Android 8.0 and above+Win7/10/11 Optional
-
Certificate:
-
CE/FCC/ROHS
-
WIFI & Hotspot:
-
Dual WIFI (5G & 2.4G )
-
Application:
-
For Classroom, Training Room, Meeting Room, Home etc..
-
Warranty:
-
Standard 1 Year
Why Choose Us
- Our Advantages -
1.
Strong OEM/ODM manufacturing capability:
8 Years Focus On Commercial Display One-stop Solutions,
14,000㎡ Factory Floorspace;
Production
capacity
of 500 products per day;
2
.
Customized
MOQ=1
pcs:
From simple logo and packaging customization to complex product hardware and software solution design;
3.
Top 1
in large size shipments in China:
For products with the size of 100 inches and above, we have great advantages, and the shipment volume is
among the top three in China;
4.
Two times
aging test:
During the production process, aging at 40 ℃ for 2 hour, and aging at room temperature for 4-8 hours after
offline.
We don't make brand, we make your brand better.
Product Description
New OEM ODM 4K HD 55 65 75 86 Inch Capacitive Touch Interactive Flat Panel Digital Smart White Board For School / Meeting Room/
New Custom Low Price 75Inch LCD 4K UHD Capacitive Touch Digital Smart Board Interactive Flat Panel Interact Whiteboard
Interactive board:
Ultra high 4K resolution，Sensitive 20 points IR touch，Built in professional whiteboard software，Professional Anti-Glare glass.
OEM/ODM Interactive Touch Panel All In One Smartboard 75 Inch Smart Board Electronic Digital Interactive Whiteboard For Teaching
/
Good Quality Portable Digital Smart Electronic Interactive Flat Panel Multi Touch 20 Point Screen Smart Board for Video Teaching
Dual System:
Open ecosystem allows you to choose whichever apps are best for you and your organization. Interactive board have dual systems, Android 11 and windows 10, you can use existing Zoom, Google Meet, Microsoft Teams, Webex and other popular 3rd party video conferencing meetings .
Wireless Share:
Smart board supports phone pc tablet up to 4 users to screencast simultaneously via Airplay and Eshare, or by connecting in via H-DMI. With your screen cast, you can annotate as needed, share via video conferencing, or screenshots.Supports multi-person and multi-device editing and sharing on the 4K UHD interactive board in real-time.
|
Size (inch)
|
Area (
㎡
)
|
Persons
|
W*H*D (mm)
|
|
55
|
10-20
|
about 10
|
1257.7*745.2*82.2
|
|
65
|
20-30
|
20
|
1483.6*889.6*88.9
|
|
75
|
30-40
|
35
|
1705.8*1013.5*88.9
|
|
86
|
50-80
|
50
|
1952*1152.5*89.1
|
Specification
|
Product Name
|
All In One Interactive Smart Whiteboard For Conference & Education
|
|
|
Dual System
|
|
|
|
Windows 10 OS
|
Intel core i3/i5/i7 option,
|
|
|
|
Memory 4G/8G/16G option
|
|
|
|
Hard Disk: 128G/256G/512G/1T option
|
|
|
Android OS
|
Quad core, 3G RAM, 32G ROM, Android 8.0/9.0 version
|
|
|
LCD Panel
|
|
|
|
Size
|
55 inch 65 inch / 75 inch / 85 inch / 86 inch Available
|
|
|
Panel Brand
|
LG、BOE、AUO (gauge A screen)
|
|
|
type
|
TFT-LCD S-PVA
|
|
|
Resolution
|
3840 × 2160 (UHD) @60hz, 4K UHD screen
|
|
|
Brightness
|
350-500 cd/m² (brightness can be customized)
|
|
|
Ratio contrast
|
2000:1
|
|
|
Visual Angle (horizontal/vertical)
|
178°/178°
|
|
|
Response time
|
8ms
|
|
|
Visual area(mm)
|
1648(W)×926.2(H) mm
|
|
|
Color gamut (NTSC)
|
72%
|
|
|
Backlight
|
WLED
|
|
|
display scale
|
16:9
|
|
|
Response time
|
＜8ms
|
|
|
Life
|
>60000H
|
|
|
Infrared touch characteristic
|
|
|
|
Touch the specifications
|
Capacitive Touch Screen
|
|
|
glass
|
4mm tempered glass
|
|
|
Glass transmittance
|
> 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
|
|
|
Object induction number (IR)
|
Touch at 20
|
|
|
Number of infrared induction lines (W D)
|
32767 × 32767
|
|
|
Positional accuracy
|
More than 90% of the touch area is 2mm
|
|
|
The interface definition
|
USB 2.0(Full speed)
|
|
|
Touch the strength
|
Zero pressure touch
|
|
|
The light resistance
|
It has light resistance
|
|
|
Induction life
|
6 million times
|
|
|
The response time
|
＜8ms
|
|
|
The power supply mode
|
Full duplex usb-powered DC +5V up to 500mA
|
|
|
Switching power supply
|
|
|
|
Power consumption (typical value)
|
≤270W
|
|
|
Input voltage
|
AC100-240V~(+/-10%),50/60Hz,
|
|
|
Standby power consumption
|
≤0.5W
|
|
|
Switching power supply
|
European standard 220V two - phase three - wire system
|
|
|
Mechanical specification parameters
|
|
|
|
The net weight
|
54kg
|
|
|
Gross weight
|
68.5kg
|
|
|
Bare machine outline size (W x D x H)
|
1705.8*1013.5*88.9 mm
|
|
|
Package size (W x D x H)
|
1846*215*1180 mm
|
|
|
Shell material (face frame/back shell)
|
Plastic/Sheet metal
|
|
|
Shell color (face frame/back shell)
|
black
|
|
|
To protect the glass
|
4mm toughened glass/level 7 earthquake resistant
|
|
|
Type of installation
|
Supports/wall hangers
|
|
|
The cooling way
|
Temperature-controlled fan dissipates heat
|
|
|
The environment
|
|
|
|
Working temperature
|
0℃~50℃
|
|
|
Working humidity
|
20%~80%(No condensation)
|
|
|
Storage temperature
|
-20℃~60℃
|
|
|
Store humidity
|
10%~90%(No condensation)
|
|
|
Display mode
|
S-ips, often black display, transmission
|
|
|
Maximum service time (hours/day)
|
24 hours
|
|
|
Features
|
|
|
|
The speaker
|
2×8Ω/8W(built in)
|
|
|
Support for input mode
|
Stylus writes keyboard
|
|
|
The attachment
|
|
|
|
The user manual
|
Manual, warranty card, certificate of conformity
|
|
|
cable
|
The power cord
|
|
|
Others (optional accessories)
|
Remote control, base/bracket, WiFi
|
|
Interactive White board Escritorio Multi functional Lcd Display Panel Interactive Screen 75 Inch Digital Smart Board For Meeting
/
Wholesale 55 65 75 85 86 Inch LCD Touch Screen All in One PC Whiteboard Interactive Flat Panel for Education Meeting Conference
