Quick Details
-
Brand Name:
-
eastkame
-
Model Number:
-
EK-DY4035
-
Mechanical Life:
-
1000000times
-
Smart Switch:
-
switch smart home
Quick Details
-
Max. Current:
-
max12MA
-
Max. Voltage:
-
21-30V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
eastkame
-
Model Number:
-
EK-DY4035
-
Mechanical Life:
-
1000000times
-
Smart Switch:
-
switch smart home

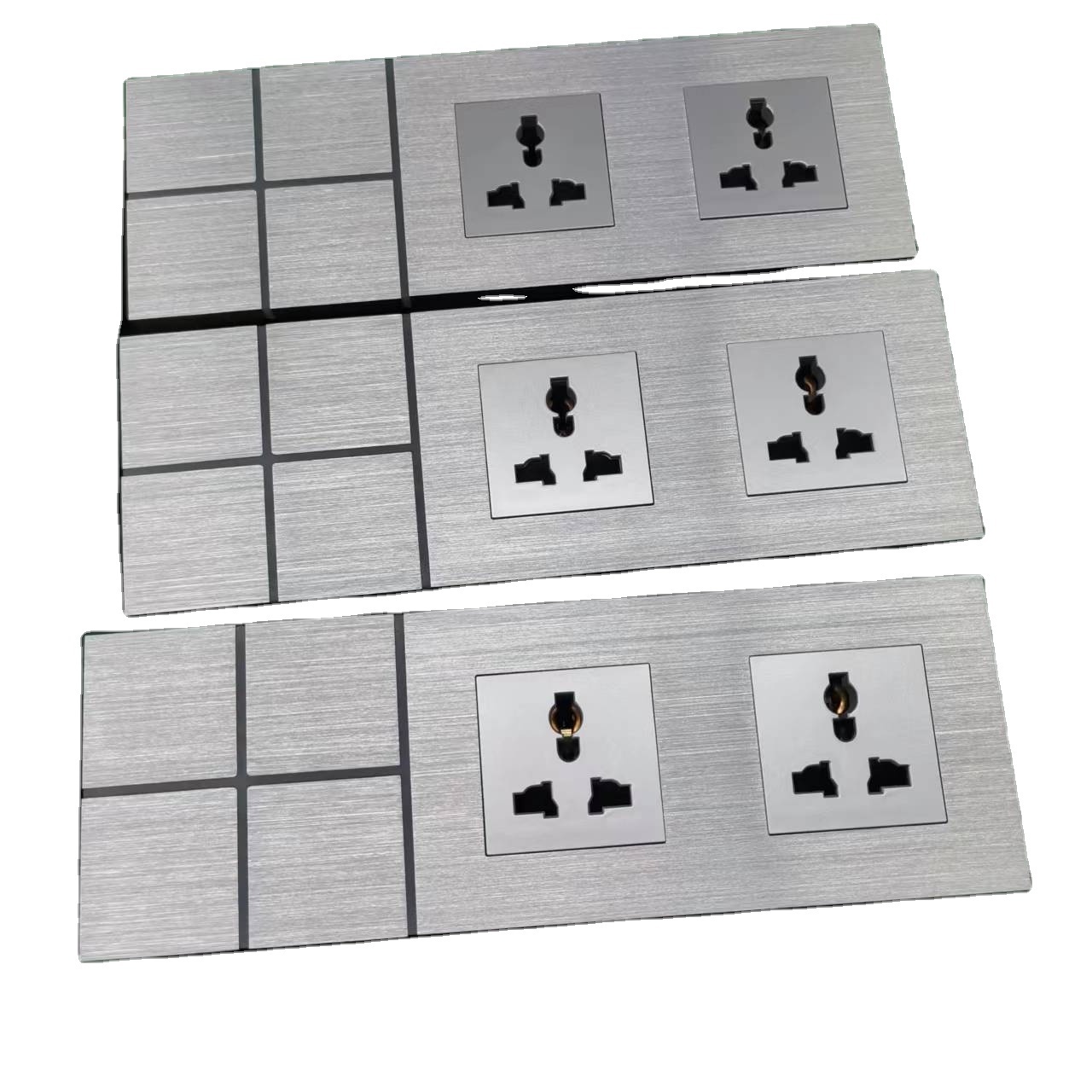

new products smart life used Z-wave touch screen wall switch 3 gang remote and touch light switch for hotel/home room automation
This manual provides you the detailed technical information about the Switch Actuators, not only the installation and programming details, but also the usage explanation in actual application. They can be installed in the distribution boards on 35mm mounting rails according to EN60715.
These switch actuators can be used to control the switch loads, such as:
- intelligent switch
- Lighting
- Heating control
- Signal devices
The working current: Max 12 ma
Power consumption: Max250mA
Output: 4
Rated current, ac 250 vac Hz16A (50 ~ 60)
Temperature range: - 5 ℃ ~ 55 ℃
Installation method: standard 35 mmdin guide installation
The switch actuators are the modular installation devices, with 8 and 12 outputs for selection, using KNX connection terminals to connect to the system. The switch actuators need to connect an extra 230V AC power supply and provide to 4 outputs . It is able to use the Engineering Tool Software ETS (ETS2 v1.3 or later) with a VD2/VD3 file to allocate the physical address and set the parameters.
I f the 230V AC power supply is not connected, all LEDs are flashing for indicating output state on the device.
It is able to switch from 4 to 8 independent electrical AC loads or three-phase loads and 4 electrical AC loads with the same phase of the 230V AC power supply by the switch actuators with maximum output of 6A per output and manual switch, as well as visible switching status via LED indication .
There are same following programming functions for each output:
w time function: on/off delay
w staircase function with the warning and adjustable staircase lighting time
w scene, preset control: 8bit/1bit
w logic operation: AND, OR, XOR, gate function
w status response
w forced operation and safe function
w threshold function setup
w control of electro thermal valve function
w manual operation switch
w indication of switch status (contact position)
