environment and easy to clean.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SQUARE
-
Dimension(L*W*H):
-
customized
-
Weight:
-
10000 KG
-
Product name:
-
Plate Freezer
-
Application:
-
Food Quick Frozen Machine
-
Function:
-
Quick-freezing Food
-
Freezer Type:
-
Quicky Freeze Machine
-
Material:
-
Stainless Steel 304
-
Frozen products:
-
Fish Meat Seafood Fruit Vegetable
-
After-sales Service Provided:
-
Engineers
-
Feature:
-
High Freezing Effiency
-
Compressor:
-
Mycom Compressor
-
Advantage:
-
Low Consumption High Efficiency
Quick Details
-
Voltage:
-
local
-
Power:
-
customized
-
Cooling Capacity:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SQUARE
-
Dimension(L*W*H):
-
customized
-
Weight:
-
10000 KG
-
Product name:
-
Plate Freezer
-
Application:
-
Food Quick Frozen Machine
-
Function:
-
Quick-freezing Food
-
Freezer Type:
-
Quicky Freeze Machine
-
Material:
-
Stainless Steel 304
-
Frozen products:
-
Fish Meat Seafood Fruit Vegetable
-
After-sales Service Provided:
-
Engineers
-
Feature:
-
High Freezing Effiency
-
Compressor:
-
Mycom Compressor
-
Advantage:
-
Low Consumption High Efficiency
|
Product Name
|
Plate Freezer
|
|
Insulated Enclosure
|
PIR/PU, SS Skin at both sides
|
|
Control Panel
|
PLC touch screen, SS panel
|
|
Refrigerant
|
Freon, Ammonia, CO₂
|
|
Evaporator
|
Al/SS tube, aluminum fin, variable fin pitch
|
|
Defrost
|
Water/Hot /ADF optional
|
|
Freezing/Cooling Time
|
Stepless variable frequency adjustable
|
|
Cleaning
|
Manual\Belt\Washer\CIP
|

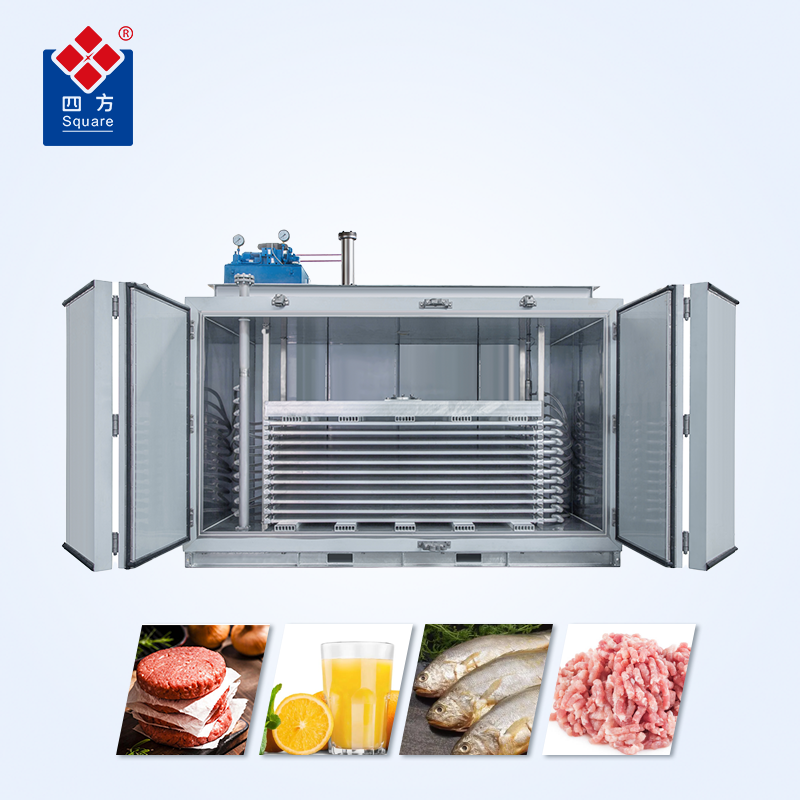

Plate freezers are commonly used for freezing brick-shaped products in mold or box. In plate freezers, refrigerant is allowed to circulate inside thin channels within the plates. The packaged products are firmly pressed between the plates. High rates of heat transfer can be obtained between the packaged product and the evaporating plates. We are proud to be the drafter of the China National Standard of Plate Freezer (GB / T22734-2008).
The plate freezer is very suitable for frozen blocks, such as fish, shrimp, surimi, meat, pet food, juice, etc.
The plate freezer is very suitable for frozen blocks, such as fish, shrimp, surimi, meat, pet food, juice, etc.
Good Insulation Performance
&Easy To Clean
The enclosure is insulated with one piece of Polyurethane foaming to ensure robust structure and minimize the cold loss by eliminating the joints. The plate freezer’s enclosure is stainless steel. It can sustain the harsh marine
High Efficiency
Made out of sea water resistant Aluminum, food grade. The 25mm thick Square aluminum plate gives high strength, high corrosion resistance and thermal conductivity. The plate is automatic welded and has minimum deformation.
Efficient Evaporator
Our design was simulated with European professional heat exchanger software. All tubes are expanded hydraulically rather than
mechanically, which improves heat exchange performance due to more uniform expansion and a tighter fit between tube and fin.
Variable fin pitch is used to delay frost formation on the filn's surface. Longer frosting interval. Easy access and cleaning.
mechanically, which improves heat exchange performance due to more uniform expansion and a tighter fit between tube and fin.
Variable fin pitch is used to delay frost formation on the filn's surface. Longer frosting interval. Easy access and cleaning.
Intelligent Control System
PLC touch screen, friendly interface, easy operation. Real-time display of equipment running status, the temperature of each area, and fault alarm. Preset freezing programs tailored for different products. Optional remote troubleshooting module.
Square Technology Group Co. Ltd is a listed company in Shanghai-stock Exchange. The company has been manufacturing freezing systems for over 30 years and is the largest industrial freezer manufacturer in the China.
Our manufacturing facility is located in Nantong, China, with some 1300 employees and 64 hectares’ land. We serve a wide range of food processing industries and can draw from our extensive experience to provide our customers the best value and ensure maximum profitability.
The product line includes spiral freezer, plate freezer, tunnel IQF, refrigeration system, cold cooler, insulated panel, cooler,oven, ice machine, etc.
Our products have been exported to over 80 countries covering various applications, including seafood, protein, bakery, vegetable, fruits, etc. Square dedicate to deliver the superior quality freezing equipment to our client.
Our manufacturing facility is located in Nantong, China, with some 1300 employees and 64 hectares’ land. We serve a wide range of food processing industries and can draw from our extensive experience to provide our customers the best value and ensure maximum profitability.
The product line includes spiral freezer, plate freezer, tunnel IQF, refrigeration system, cold cooler, insulated panel, cooler,oven, ice machine, etc.
Our products have been exported to over 80 countries covering various applications, including seafood, protein, bakery, vegetable, fruits, etc. Square dedicate to deliver the superior quality freezing equipment to our client.
