Quick Details
-
Voltage:
-
380V 50HZ, 380V/50hz or Customized
-
Dimension(L*W*H):
-
1440*830*1265 mm
-
Weight:
-
840, 840 kg
-
Capacity:
-
4.5-2.6 m3/min
-
Certification:
-
ISO and CE Certification
-
Air end:
-
Hanbell
-
Motor:
-
IP54
-
Cooling method:
-
Air Cooling
-
Pressure:
-
7 to 25bar
-
Application:
-
General Industry
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dehaha
-
Model Number:
-
DDM-30
-
Voltage:
-
380V 50HZ, 380V/50hz or Customized
-
Dimension(L*W*H):
-
1440*830*1265 mm
-
Weight:
-
840, 840 kg
-
Capacity:
-
4.5-2.6 m3/min
-
Certification:
-
ISO and CE Certification
-
Air end:
-
Hanbell
-
Motor:
-
IP54
-
Cooling method:
-
Air Cooling
-
Pressure:
-
7 to 25bar
-
Application:
-
General Industry
Silent Type Double Stage Compressing Screw Air Compressor With Diesel Engine
Air End
Two-stage compression compared to single-stage compression, the two compression tends to the most provincial power of the isothermal compression,from the principle, the single-stage compression of the two compression energy saving 5~8%.
Won the award of Level 1 energy Efficiency Grade Certification.
Compared with Level 2 Energy Efficiency GradeSave 10%-15% energy.
Compared with Level 3 Energy Efficiency GradeSave 20%-30% energy.
Motor
a. The use of energy-efficient motor,F grade insulation grade,high protection motor,with imported SKF bearings.
b. The capacity of the motor is increased by 1.2, so as to ensure that under the condition of various weather conditions,the load can be loaded without fault operation.
Control Panel
LCD HD touch monitor, PLC control ,Human menu interface design.
Can display multi line operation parameters, historical records
Simple operation,inquiry, convenient maintenance.
High Efficient Separation of Oil and Gas System
The oil content of the compressed air of the outlet is only 2ppm by using the three stage method(cyclone separation method,sedimentation separation method and the fine filtration method).
Low Noise Design
a. Selection of large diameter, low speed of the low noise fan: provide large air quantity can effectively reduce the fan noise.
b. Totally enclosed mute type design, accord with international working noise standard.
1.power frequency
| MODEL | Air flow Capacity m³/min | Power KW | Noise dB | Outlet Diameter | Dimension mm | Weight KG | ||||||
| 0.6Mpa | 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.3Mpa | Length | Width | Height | |||||
| DD-75 | 15.80 | 14.70 | 13.00 | 9.50 | 8.60 | 55 | 70 | DN50 | 2300 | 1300 | 1830 | 1534 |
| DD-100 | 18.80 | 17.40 | 15.50 | 12.80 | 10.00 | 75 | 72 | DN50 | 2300 | 1300 | 1830 | 1700 |
| DD-125 | 21.30 | 20.70 | 19.50 | 16.50 | 13.00 | 90 | 72 | DN65 | 2550 | 1630 | 1850 | 2080 |
| DD-150 | 26.50 | 26.30 | 25.00 | 20.00 | 18.80 | 110 | 72 | DN65 | 2550 | 1630 | 1850 | 2120 |
| DD-175 | 34.00 | 32.60 | 30.00 | 24.00 | 20.00 | 132 | 78 | DN80 | 3000 | 1828 | 2310 | 4850 |
| DD-220 | 41.00 | 38.00 | 37.00 | 29.60 | 24.50 | 160 | 78 | DN80 | 3000 | 1828 | 2310 | 5000 |
| DD-250 | 44.00 | 41.00 | 40.00 | 34.00 | 31.00 | 185 | 78 | DN100 | 3460 | 1940 | 2230 | 5900 |
| DD-275 | 48.00 | 44.00 | 45.00 | 40.00 | 33.00 | 200 | 78 | DN100 | 3460 | 1940 | 2230 | 6200 |
| DD-300 | 55.00 | 51.00 | 50.00 | 43.00 | 38.00 | 220 | 80 | DN125 | 3860 | 2130 | 2380 | 8500 |
| DD-350 | 60.00 | 57.00 | 56.00 | 47.00 | 43.00 | 250 | 80 | DN125 | 3860 | 2130 | 2380 | 8650 |
2.Permanent magnet
| MODEL | Air flow Capacity m³/min | Power KW | Noise dB | Outlet Diameter | Dimension mm | Weight KG | |||||
| 0.6Mpa | 0.7Mpa | 0.8Mpa | 1.0Mpa | Length | Width | Height | |||||
| DDM-30 | 4.80 | 4.60 | 4.50 | 3.80 | 22 | 68 | G11/4 | 1484 | 1126 | 1578 | 840 |
| DDM-40 | 7.40 | 6.63 | 6.50 | 4.50 | 30 | 68 | G11/4 | 1630 | 1214 | 1660 | 1050 |
| DDM-50 | 8.00 | 7.65 | 7.50 | 6.00 | 37 | 68 | G11/4 | 1630 | 1214 | 1660 | 1050 |
| DDM-60 | 11.20 | 10.50 | 10.30 | 7.30 | 45 | 70 | G2 | 1834 | 1290 | 1810 | 1353 |

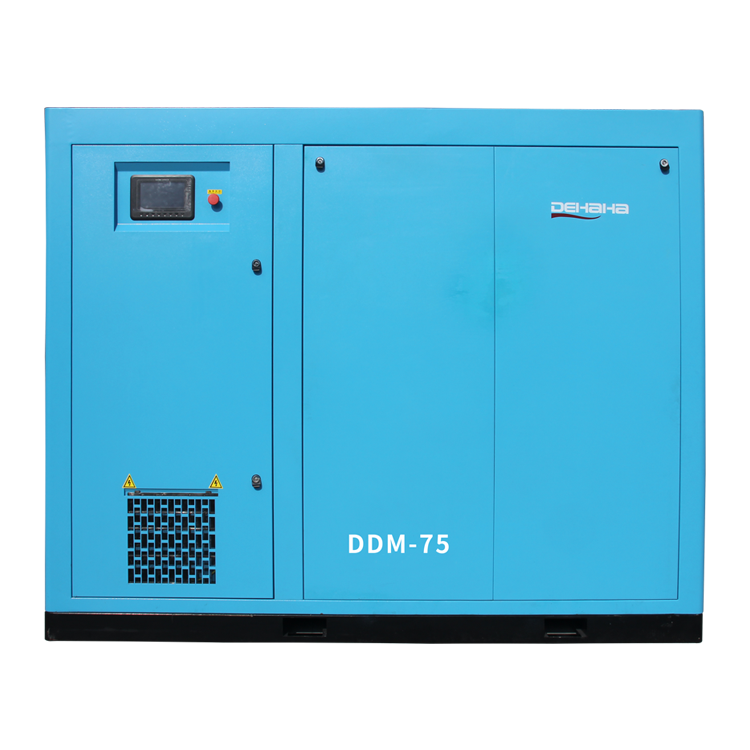

| DDM-75 | 15.80 | 14.70 | 13.00 | 9.50 | 55 | 70 | DN50 | 2300 | 1300 | 1830 | 1534 |
| DDM-100 | 18.80 | 17.40 | 15.50 | 12.80 | 75 | 72 | DN50 | 2300 | 1300 | 1830 | 1700 |
| DDM-125 | 21.30 | 20.70 | 19.50 | 15.00 | 90 | 72 | DN65 | 2550 | 1630 | 1850 | 2080 |
| DDM-150 | 26.50 | 26.30 | 25.00 | 20.00 | 110 | 72 | DN65 | 2550 | 1630 | 1850 | 2120 |
1.Why customer choose us?
DHH SCREW COMPRESSOR JIANGSU CO.,LTD.with 23 years old history,we are specialized in Rotary Screw Air Compressor.Germany Standard and 13 years exporting experience help us won more than 30 loyal foreign agents.We warmly welcome your small trial order for quality or market test.
2.Are you a manufacturer or trading company?
We are professional manufacturer with big modern factory in Qidong,China,with professional design team.Both OEM & ODM service can be accepted.
3.Where is your factory located? How can I visit there?
Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it’s about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!
4.What’s your delivery time?
380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days,if urgently order,pls contact our sales in advance.
5.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare parts and we can provide some spare parts of the machines
6.How does your factory do regarding quality control?
Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.
7.How long could your air compressor be used?
Generally, more than 10 years.
8. What's payment term?
T/T,L/C,D/P,Western Union,Paypal,Credit Card,and etc.Also we could accept USD, RMB, Euro and other currency.
9.How about your customer service?
24 hours on-line service available.48 hours problem solved promise.
10.How about your after-sales service?
(1) Provide customers with installation and commissioning online instructions.
(2) Well-trained engineers available to overseas service.
(3) Worldwide agents and after service available.
