Quick Details
-
Backset Size:
-
60mm
-
Center to center:
-
72mm
-
Bolt Length:
-
20mm
-
Latch Length:
-
13mm
-
Standard:
-
EN12209:2003
-
Sample:
-
Free
-
Packing:
-
Ordinary Box, or custom Color Box
-
OEM/ODM:
-
Yes
-
LOGO:
-
Accept Customize LOGO
-
Certification:
-
ANSI/BHMA 156.13 Grade 1
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
UNITY
-
Product Name:
-
Fire Rated Grade 1 Mortise Door Lock in EN Lock Body
-
Backset Size:
-
60mm
-
Center to center:
-
72mm
-
Bolt Length:
-
20mm
-
Latch Length:
-
13mm
-
Standard:
-
EN12209:2003
-
Sample:
-
Free
-
Packing:
-
Ordinary Box, or custom Color Box
-
OEM/ODM:
-
Yes
-
LOGO:
-
Accept Customize LOGO
-
Certification:
-
ANSI/BHMA 156.13 Grade 1
Fire Rated Grade 1 Mortise Door Lock in EN Lock Body with ANSI BHMA Functions
General Specification
| Product Name | Fire Rated Grade 1 Mortise Door Lock in EN Lock Body with ANSI BHMA Fuctions |
| Forend Size | 235*24mm |
| Color | Silver |
|
Backset |
60mm |
| CDC | 72MM |
|
Function |
Entry mortise lock for entrance doors |
| Application | Public access buildings and schools |
|
If you want other customized mortice lock, just leave us messages with detailed requirement.
|
|

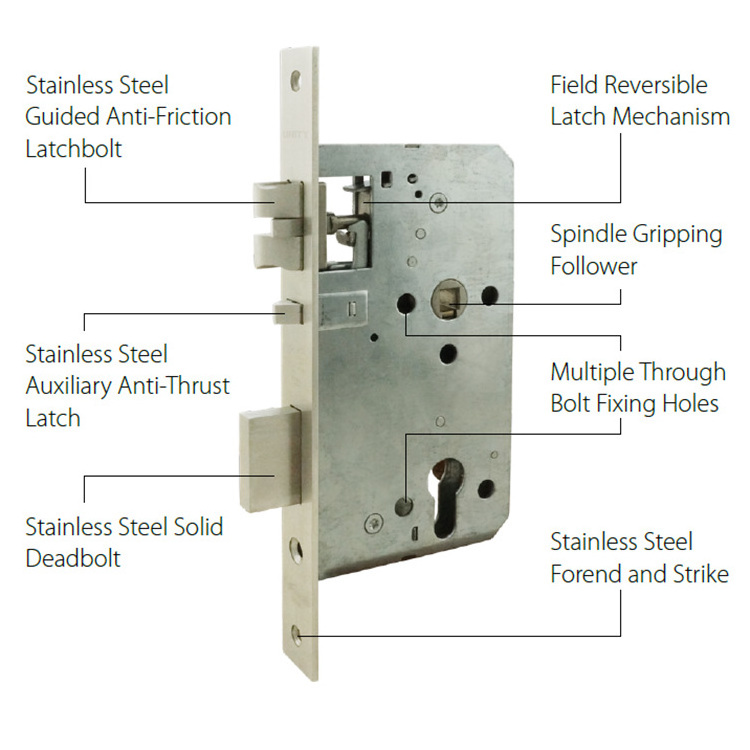

Specifications and Features
-Designed to meet and exceed ANSI/BHMA 156.13 Grade 1 m ortise lock requirement.
- Design for conformity to all of requirement of EN12209: 2003
- Hybrid design of ANSI Specification in a Euro mortise lock case
- Modular case across functions for rapid door prepping and installation
- 72mm centers, backset in 60mm
- 8mm follower
- Field reversible Anti-Friction latch bolt in solid stainless steel with 13 mm projection
- Single throw deadbolt in solid stainless steel with 20mm projection
- Stainless steel faceplate and strike plate
- Compatible with bolt through furniture and escutcheons of 38mm centers
- Compatible with standard cylinder with Euro compatible cam
- Covers various functions and applications
Standards and Certifications,
Application
UNITY Fire Rated Grade 1 entry mortise door lock in EN lock body with ANSI BHMA Fuctions MLC107201X is designed and built for very high frequency usage applications such as public access buildings and schools where deliberate abuse likely takes place.
Available ANSI Grade 1 Mortice Lock For Other Functions
Q: Are your company a factory or trading company?
A: UNITY started from a trade company, but now we have two factory plants to serve you.
As a manufacturer, we have more than 20 year's experiences and are confident to offer you with optimal manufacturing solution.
Q: What kinds of certificates do you have?
A: UNITY have CE and UL certificate, all our product design follows up the international standard, such as the
EN/CE, UL, ANSI
standard.
Q: Do you accept OEM or ODM?
A: Yes, UNITY is professional in
OEM
and
ODM
with more than 20 year's experiences. And UNITY has set up long-term cooperation with many famous brands home and abroad.
Q: How about your quality system?
A: As a factory, UNITY has been certified by
ISO9001
and
ISO14001
to well control our production and service quality, all steps under control are strictly processed according to these authoritative systems and standards.
Q: Can you send me a sample before placing an order? Is it free?
A: Yes, of course. UNITY will translate all your requirement into real products and then send you samples for your confirmation.
Sample is free, you just need to pay for the express cost.
Q: How many days do you need for prepare sample?
A: Usually 2-5 days.
Q: What’s stainless steel grade you are working now?
A: We are working mostly in
SUS304
and
SUS316
, some items can be
SUS201
as well.
Any more information of further questions, please just feel free to contact us.
