4-20mA and Relay output
Over-voltage protected
Reverse voltage protected
SS304 casing
IP65
The switch head allowed to route 330°
Switch point setting (separately for each)
OLED display
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Senyd
-
Model Number:
-
XDS200 series
-
Max. Current:
-
0.5A 120VAC or 1A 24VDC
-
Max. Working Pressure:
-
1000Bar(145000psi)
-
IP level:
-
IP65
-
Color:
-
stainless steel
-
Pressure Range:
-
0-0.07Bar(1psi)......1000bar(145000psi)
-
Power supply:
-
24VDC±5VDC
-
output signal:
-
Relay output and 4-20mA
-
Accuracy:
-
±1%FS /±0.5%F.S /± 0.25%FS
-
operating temperature:
-
-20....60℃
-
long time stability:
-
±0.25%FS/year
-
pressure connection:
-
G1/4(customizable)
-
electrical connection:
-
M12 connector(5pin)
-
housing material:
-
SSL304(customizable)
-
IP rating:
-
IP65
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
32VDC
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Senyd
-
Model Number:
-
XDS200 series
-
Max. Current:
-
0.5A 120VAC or 1A 24VDC
-
Max. Working Pressure:
-
1000Bar(145000psi)
-
IP level:
-
IP65
-
Color:
-
stainless steel
-
Pressure Range:
-
0-0.07Bar(1psi)......1000bar(145000psi)
-
Power supply:
-
24VDC±5VDC
-
output signal:
-
Relay output and 4-20mA
-
Accuracy:
-
±1%FS /±0.5%F.S /± 0.25%FS
-
operating temperature:
-
-20....60℃
-
long time stability:
-
±0.25%FS/year
-
pressure connection:
-
G1/4(customizable)
-
electrical connection:
-
M12 connector(5pin)
-
housing material:
-
SSL304(customizable)
-
IP rating:
-
IP65
Product Overview

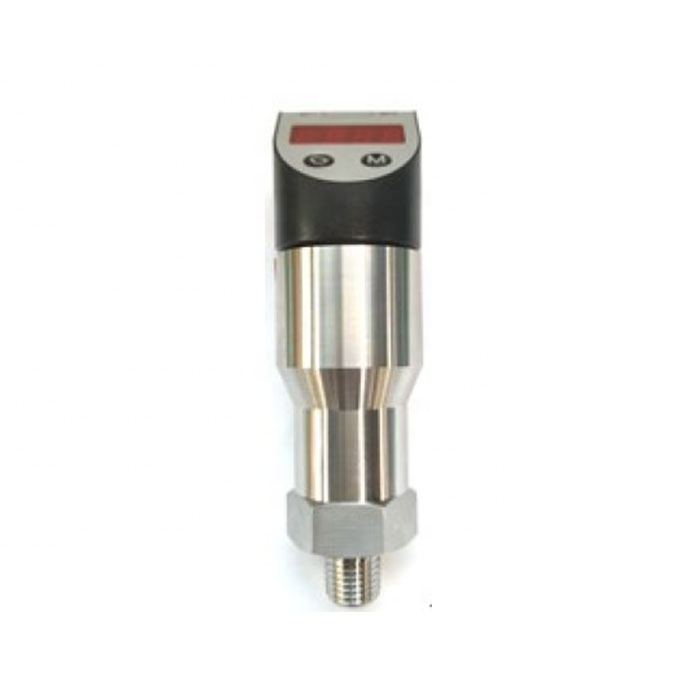

XDS2 series intelligent pressure switch with display
This is an intelligent pressure switch combining pressure measurement, local display and control together. It uses advanced ARM industrial-grade MCU as core and high quality pressure sensor as sensing element. With well-designation and adjustment, it has quick reaction and good electro-magnetic compatibility for pressure control at the premise of accuracy. It can be widely used for industrial site pressure control in pump, hydraulic and pneumatic equipment. It is able to visually process the process pressure and switch contacts status through switch output, analog output and display screen. It has various output signals for different application. OLED display is very clear to read.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
pressure range
|
0-0.07bar....1000bar
|
|
overload pressure
|
≥150%FS
|
|
accuracy
|
±1%，±0.5 ，±0.25%
|
|
response time
|
≤10ms
|
|
output signal
|
relay output
|
|
current without load
|
≤8mA
|
|
insulate resistance
|
≥100MΩ@100vdc
|
|
random vibration
|
10g.5-2000hz
|
|
shock
|
x,y,z 20g sine 11ms
|
|
pressure connection
|
G1/2,G1/4,M20*1.5,NPN1/2,NPT1/4,others
|
|
seal material
|
NBR O-ring default(-20...100℃）, FKM optional（-15....135℃）
|
