Quick Details
-
Brand Name:
-
HW
-
Weight:
-
6000 kg
-
Dimension(L*W*H):
-
4420*1920*4900mm
-
Product Name:
-
solar pile ramming machine
-
Pile length:
-
0-3000/6000mm
-
Hydraulic hammer model:
-
75/85/100 optional
Quick Details
-
Efficiency:
-
200pcs/day
-
Piling Speed(m/min):
-
1.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Weight:
-
6000 kg
-
Dimension(L*W*H):
-
4420*1920*4900mm
-
Product Name:
-
solar pile ramming machine
-
Pile length:
-
0-3000/6000mm
-
Hydraulic hammer model:
-
75/85/100 optional
Product Description
Note
The listing price just deposit price,please kindly note that,if you want to know the specific price,please contact us or send us inquiry,then we can give you detail quotation list
China supply hydraulic solar plant pile ramming machine post vibro hammer pile driver
|
Product model
|
HWL400R
|
|
Hydraulic hammer model (mm)
|
75/85/100 optional
|
|
Drill rod diameter (mm)
|
75/85/100
|
|
Pile height (mm)
|
According to the slide
|
|
Sliding guide frame inclination angle (°)
|
(Left) 5(Right) 5
|
|
Traveling speed (km/h)
|
3
|
|
Vehicle weight (kg)
|
6200
|
|
Track shoe width (mm)
|
350
|
|
Dimensions (mm)
|
4420*1920*4900-7900(working state)
4500-7500*1920*2800(transportation status)
|

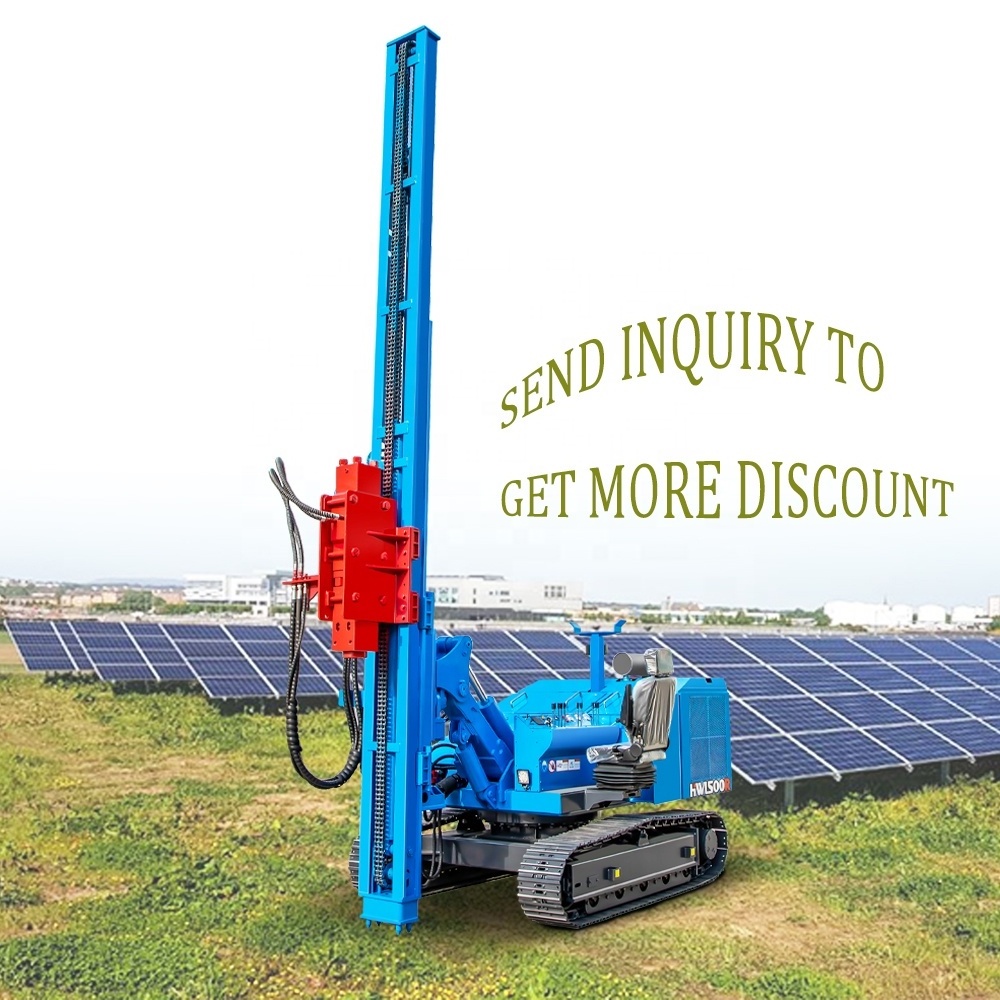

Hydraulic rotary press pile driver is multifunctional pile driving machine for solar pile project, with 360 degrees of freedom to rotate, multi angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.
Why choose pile driver from our company?
1.
Newly upgraded pile driver
2.
Factory direct supply, reducing middlemen earning price difference
3.
Flexible production, accept customization
4.
Can be exported to the EU, the machine has passed the CE certification
click "
chat now
" to know more service
Detailed Images
What are the features of our new pile driver? Please be patient with the introduction below, I believe you will like it.
1.
FULLY ENCLOSED HOUSE DESIGN
The fully enclosed house design is more beautiful, which can effectively prevent the damage to the inside of the machine caused by external dust and greatly reduce the maintenance cost.
2.
Suspension seat of this solar pile driver can reduce vibration, relieve the fatigue of the staff after sitting for a long time, and greatly improve the efficiency of the worker.
|
3
.The centralized operation control platform makes the operation more simple and convenient
|
4.
This pile driver equipped with a large power head, the size of the pile cap can be customized.
|
5.In addition to piling, this machine can also be connected to the air compressor for drilling hole
|
|
6.
The engineering steel crawler chassis makes pile driver walking and work more stable and reliable than the rubber crawler.
|
7.
For this pile driver, we specially added the anti-wear pulley of the chain, which increases the life of the chain and improves the working performance of the whole machine.
|
8.CUSTOMIZED HEIGHT
The height of the slide carriage is 7.5 meters, and the effective stroke is 6 meters (customized height is acceptable), which can achieve a certain angle of forward inclination, and can accurately positioning the pile without moving the machine, which saves positioning time and improves the piling efficiency.
Product Configuration
The solar pile driver is multifunction, with different configurations suitable for different geologies.Accept customization,any good ideas please contact us, our engineers will help you get what you want.
Customer Feedback
The following images of pile driver are from customer feedback (Vietnam, S
audi Arabia
,
Romania
, Mexico, South Africa, Philippines, Malaysia, Colombia,etc.), We also have a lot of
customer feedback
videos, if you are interested, please contact us to send you.
Packing & Delivery
This pile driver should be delivery by container,about loading details,please "
contact us
",then we can send you full set of l
oading
measure.
