Quick Details
-
Brand Name:
-
Mingyang
-
Raw material:
-
coal charcoal powder
-
Usage:
-
charcoal coal briquettes production
-
Feature:
-
Easy Operation
-
Diameter:
-
40-100-120mm
-
Keywords:
-
Hexagonal Charcoal Briquette Machine
-
Keywords1:
-
Coal Charcoal Powder Briquette Pressing Machine
-
Working type:
-
Vertical punching presssure
-
Briquette Shape:
-
Hexagonal Hollow Cylindrical
-
Capacity:
-
1-2t/h
Quick Details
-
Weight (KG):
-
1200
-
Production Capacity:
-
600-1000kg
-
Place of Origin:
-
China
-
Brand Name:
-
Mingyang
-
Raw material:
-
coal charcoal powder
-
Usage:
-
charcoal coal briquettes production
-
Feature:
-
Easy Operation
-
Diameter:
-
40-100-120mm
-
Keywords:
-
Hexagonal Charcoal Briquette Machine
-
Keywords1:
-
Coal Charcoal Powder Briquette Pressing Machine
-
Working type:
-
Vertical punching presssure
-
Briquette Shape:
-
Hexagonal Hollow Cylindrical
-
Capacity:
-
1-2t/h

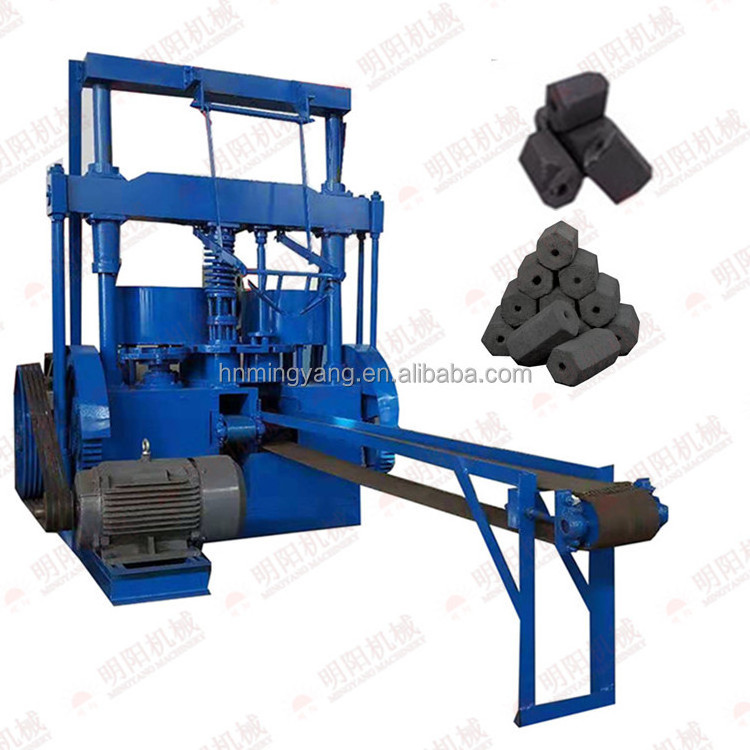

Factory Price Coal Honeycomb Pressing Machine Carbon Dust 7.5 kw Hexagonal Charcoal Briquette Machine for Greenhouse Heating
Product Application of Hexagonal Charcoal Briquette Machine
This
Hexagonal Charcoal Briquette Machine
can be used to punch charcoal coal honeycomb briquettes of different diameters (diameter range: 60-120 mm) in cylinder or square shape without hole through different moulds ,from charcoal dust or charcoal powder. It is widely used in equipment for large, medium and small smelting plant, Refractory plant, coal processing industry, fertilizer plant, chemical plant, boiler, blast furnace, gas producer, shaft kiln, cement plant,house heating etc. It can change the powder materials as charcoal or coal into regular shape with high density, so that it is easily to be transported even in a long distance and highly increase the heating value for user.
|
Main pop used Models of Hexagonal Charcoal Briquette Machine
|
|
|
|
|||
|
Model
|
CMBJ140
|
CMBJ160
|
CMBJ180
|
|||
|
Capacity ---Charcoal
|
500-800kg/h
|
800-1000kg/h
|
1000-1500kg/h
|
|||
|
Capacity ---Coal
|
1-2T/h
|
2-3t/h
|
4- 6t/h
|
|||
|
Diameter (mm)
|
20-40
|
20-60
|
20-80
|
|||
|
Motor power
|
7.5 KW
|
11KW
|
18.5kw
|
|||
|
Weight
|
0.85T
|
1.35T
|
2.25T
|
|||
|
Dimension
|
2000*1200*800mm
|
2200*1300*850mm
|
2300*1450*900mm
|
|||
Production line process of Hexagonal Charcoal Briquette Machine
Working Principles of
Hexagonal Charcoal Briquette Machine
: the motor transfers the power to the transmission through triangle belt, then the punching cylinder transfers the power to the pressing head, finally the Pressing head punching the coal or charcoal powder into briquettes.
Main Features of Hexagonal Charcoal Briquette Machine
1.Our
Hexagonal Charcoal Briquette Machine
absorbs the advanced technique at home and abroad.
2.Innovative design and reliable quality.
3.Key parts are processed by imported high quality materials.
4.High strength and toughness.
5.Durability, adaptability.
6.High production capacity.
