Quick Details
-
Voltage:
-
380V/50HZ
-
Power:
-
16kw
-
Dimension(L*W*H):
-
4400*3780*2000
-
Weight:
-
3000 kg
-
Scope of application:
-
Facial tissue/Napkin paper
-
Packaging style:
-
3D(Three Dimensional)
-
Production speed:
-
Max.70 packs/min
-
Tissue length:
-
125-300mm(can be customized)
-
Tissue width:
-
125-250mm(can be customized)
-
Tissue height:
-
60-170mm(can be customized)
-
Packaging material:
-
CPP, PE etc
-
Power consumption:
-
13kw
-
Iptional device:
-
Ink Printer
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Production Capacity:
-
60 Packs/Min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IMAKO
-
Voltage:
-
380V/50HZ
-
Power:
-
16kw
-
Dimension(L*W*H):
-
4400*3780*2000
-
Weight:
-
3000 kg
-
Scope of application:
-
Facial tissue/Napkin paper
-
Packaging style:
-
3D(Three Dimensional)
-
Production speed:
-
Max.70 packs/min
-
Tissue length:
-
125-300mm(can be customized)
-
Tissue width:
-
125-250mm(can be customized)
-
Tissue height:
-
60-170mm(can be customized)
-
Packaging material:
-
CPP, PE etc
-
Power consumption:
-
13kw
-
Iptional device:
-
Ink Printer
-
After-sales Service Provided:
-
Field installation, commissioning and training
Product Description

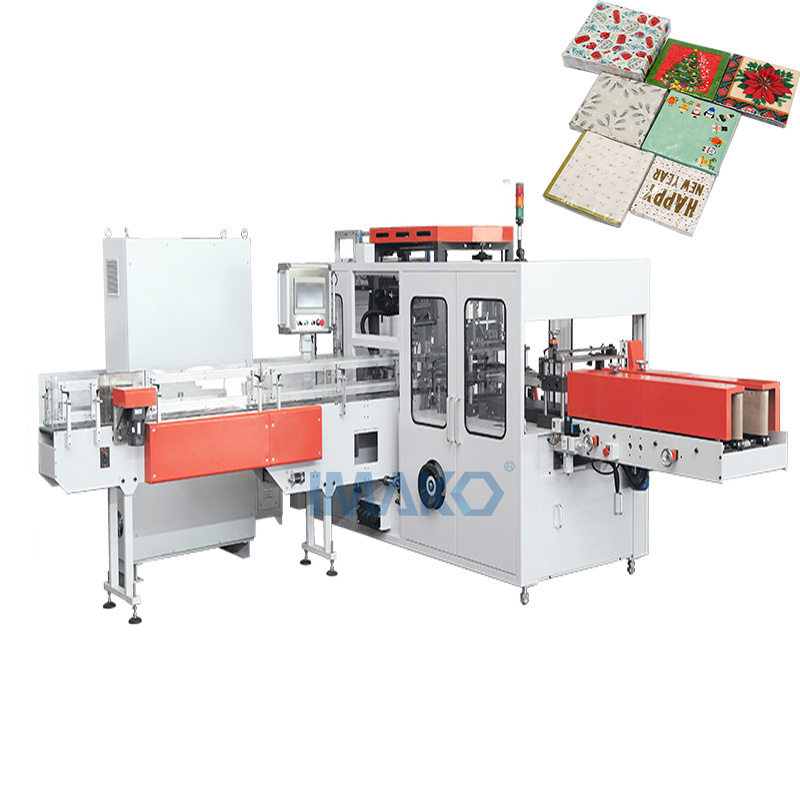

Automatic napkin tissue packing machine able to pack one stack and two stacks
TP-T200M automatic single wrapping machine is suitable for packaging napkin paper.
Adopts frequency drive control mode for paper arraying and feeding.Film hole punching,film pulling and position locating,film cutting,paper fill into bag,paper center sending etc. are controlled by servo motors.
This machine has the advantages of complete operation function,high use efficiency,easy to operation,wide range of suitable specification,quick size change over,convenient maintenance,low cost for maintenance etc..
Automatic tissue paper packing machine,the most suitable packing machine for packing big size napkin paper
|
SPECIFICATIONS OF TISSUE PAPER PACKING MACHINE
|
|
|
|
|||
|
Scope of application
|
Napkin paper
|
Packaging style
|
3D(Three dimensional)
|
|||
|
Design speed
|
70 packs/min
|
Production speed
|
30-60 packs/min
|
|||
|
Tissue length
|
125-300 mm
|
Tissue width
|
125-250 mm
|
|||
|
Tissue height
|
60-170mm(can be customized)
|
Size changing moulds
|
3sets
|
|||
|
Machine dimension
|
4400X3780X2000mm
|
Packaging material
|
CPP,PE
|
|||
|
Film thickness
|
0.035-0.05mm
|
Max.film diameter
|
≤500mm
|
|||
|
Film core diameter
|
76mm(international standard)
|
Max.film width
|
500 mm
|
|||
|
Compressed air
|
0.6mpa
|
Power supply
|
380V,50HZ(can be customized)
|
|||
|
Total power cunsumption
|
13kw
|
Electrical control system
|
Mitsubishi,Siemens
|
|||
|
Pneumatic system
|
FESTO
|
Optional device
|
Ink printer
|
|||
Detailed Images
Paper sorting and feeding
Adopts frequency drive control mode for paper arraying and feeding.
Sealing parts
Film hole punching,film pulling and position locating,film cutting,paper fill into bag,paper center sending etc. are controlled by servo motors.
Finished Product
Machine Parts
Machine Parts
Machine Parts
Packing & Delivery
Some of our customers
Whenever you buy our products, you are double secured with the reliable and life time after-sales services provided both by our materials suppliers and us.
FAQ
|
1.Are you manufacturer or trading company?
|
|
We are manufacture for automatic tissue packing machine,welcome you to visit our factory at anytime.
|
|
2.Where is your factory located?
|
|
Our factory is located in Shantou city,Guangdong province,China.Which is a beautiful coastal city in the South-eastern of China.The airport name in our city is
Jieyang Airport
,airport code
SWA
and high-speed railway station is
Chaoshan Station
.It's very convenient to come from Guangzhou city or Shenzhen city.
|
|
3.What is the warranty of your machines?
|
|
All the machines have one year's warranty.
|
|
4.How long is the delivery time?
|
|
It depends on the machine models and your requirement on packing sizes.Usually is 30-60 days.
|
