Quick Details
-
Model Number:
-
D88130
-
Material:
-
EPDM, FKM, NBR, NR
-
Feature:
-
Heat Resistance, waterproof
-
Application:
-
Hydraulic Pneumatic, Industrial Manufacturing
-
Hardness:
-
30~80 Shore A
-
Shape:
-
Square,round,irregular,etc
-
Quality:
-
C=0 AQL=0.65
-
Supporting:
-
FMEA Control Plan Test Report etc.
-
Temperature:
-
85°C
-
Tolerance:
-
ISO-3302-M2/per your drawing
-
Certification:
-
ISO9001/NSF/WRAS/KTW/ACS/Food grade/LFGB
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AI
-
Model Number:
-
D88130
-
Material:
-
EPDM, FKM, NBR, NR
-
Feature:
-
Heat Resistance, waterproof
-
Application:
-
Hydraulic Pneumatic, Industrial Manufacturing
-
Hardness:
-
30~80 Shore A
-
Shape:
-
Square,round,irregular,etc
-
Quality:
-
C=0 AQL=0.65
-
Supporting:
-
FMEA Control Plan Test Report etc.
-
Temperature:
-
85°C
-
Tolerance:
-
ISO-3302-M2/per your drawing
-
Certification:
-
ISO9001/NSF/WRAS/KTW/ACS/Food grade/LFGB
Product Description

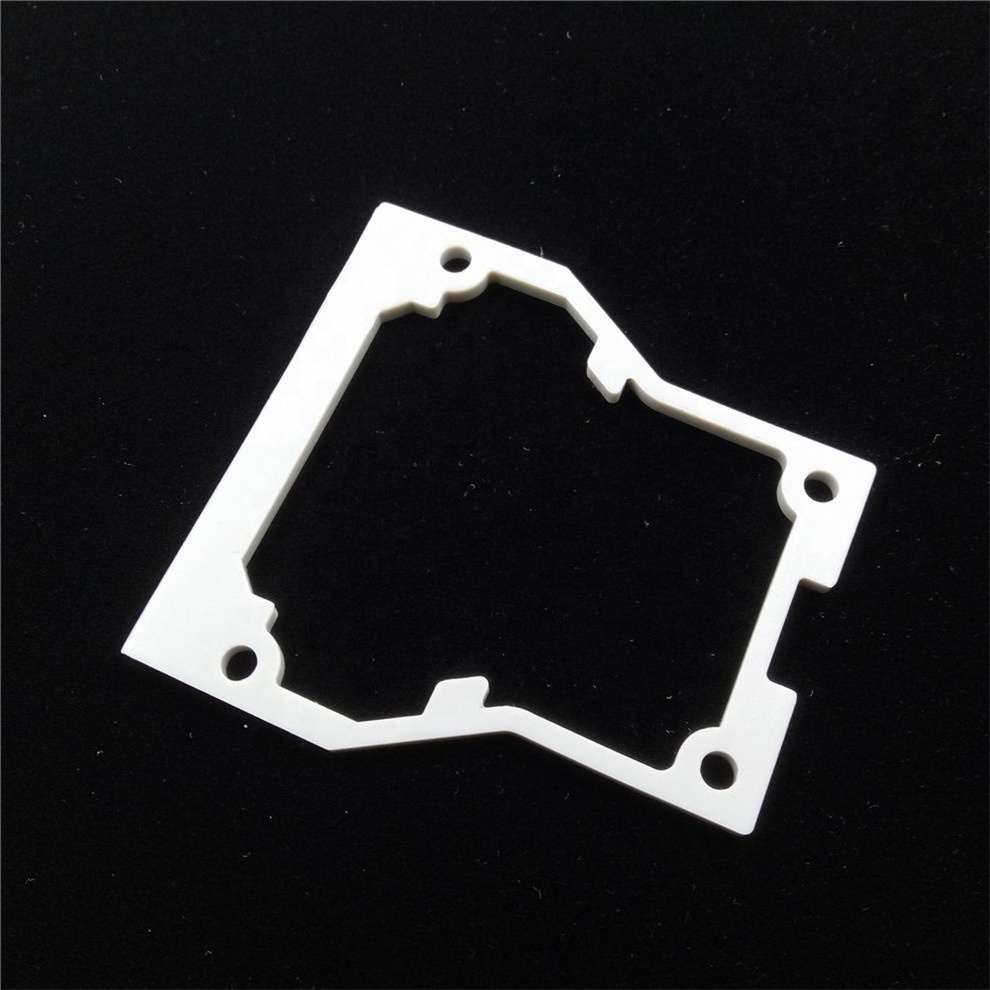

Custom Made NBR EPDM FKM Rubber Gasket Seal with NSF, KTW, W270 Certificate
|
Product Name
|
Custom Made NBR EPDM FKM Rubber Gasket Seal with NSF, KTW, W270 Certificate
|
|
Material
|
EPDM, FKM, NBR, NR
|
|
Color
|
White,black,red,blue,etc
|
|
Size Tolerance
|
ISO-3302-M2/per your drawing
|
|
Certificate
|
ISO9001/NSF/WRAS/KTW/ACS/Food grade/LFGB
|
|
Hardness
|
30~80 Shore A
|
|
Application
|
Hydraulic Pneumatic, Industrial Manufacturing
|
|
Resistance
|
Hydraulic Fluid, Engine Oil, Chemical, Ozone, Steam & Hot Water, Low Temperature, High Temperature
|
|
Sample
|
Free
|
|
MOQ
|
1 piece
|
|
Delivery Time
|
I
n stock: 3 working days, No stock: normally 7 working days, as per order quantity
|
|
Payment
|
T/T,PayPal(30% deposit after confirm the order, 70% balance paid before shipment )
|
|
Service
|
OEM/ODM
|
Products Show
Ai-Silicone
specializes in customized production of various silicone rubber products since 2014. The main products are O-rings, seals, all kinds of silicone rubber parts, including
molded parts, electronic parts, daily parts, industrial parts
and so on. Materials are: silicone, NBR, EPDM, NR, butyl rubber, fluorine rubber, neoprene, styrene butadiene rubber, etc.
We've made more than 3000 different kinds of molded products. The displayed products are non-standard products, so they cannot be sold. We can customize the dimensions and specifications according to your own design.
Customization process:
1. According to the 3D drawing in STEP, IGS or CAD format or product samples,
make sample tooling and produce 5PCS~10PCS samples.
2. After customer confirms the samples, make mass tooling and mass production will be carried out.
We've made more than 3000 different kinds of molded products. The displayed products are non-standard products, so they cannot be sold. We can customize the dimensions and specifications according to your own design.
Customization process:
1. According to the 3D drawing in STEP, IGS or CAD format or product samples,
make sample tooling and produce 5PCS~10PCS samples.
2. After customer confirms the samples, make mass tooling and mass production will be carried out.
Silicone Rubber
Good elasticity, ozone resistance, weather resistance, widely used in sealing gaskets needed in thermal mechanism, such as sealing
liner, valve gasket, oil seal, etc.
liner, valve gasket, oil seal, etc.
EPDM Rubber
It has excellent resistance to heat, aging, ozone and good stability, and good corrosion resistance to strong acid, strong alkali, salt and chloride solution, but not recommended for food use or exposure to aromatic hydrogen.
Nutrile Rubber(NBR)
one of the most common rubbers for oil seals and O-rings. It has excellent resistance to oil,water, solvent and high pressure and good compressibility, abrasion resistance and elongation.
Natural Rubber(NR)
Good wear resistance, high elasticity, breaking strength and elongation. It is easy to age in air, sticky when heated, easy to expand and dissolve in mineral oil and gasoline, alkali-resistant but not strong acid-resistant. It is not heat-resistant and oil-resistant (it can be resistant to vegetable oil). Widely used in rubber band, rubber hoses and rubber shoes,etc
Chloroprene Rubber(CR)
Good elasticity, abrasion-resistant and weather-resistant, not afraid of direct sunlight. It has good corrosion resistance to commercial oil and fuel, but poor corrosion resistance to aromatic hydrocarbon in strong oxidizing acid.
Styrene-butadiene rubber
Compared with NR, low-cost, better resistance to wear and aging, but the mechanical strength is weak and can be blended with natural rubber. It is not recommended to use in strong acids, ozone, oils, fats and hydrocarbons. Widely used in tire , shoe , cloth and conveyor belt.
