- Product Details
- {{item.text}}
Quick Details
-
Power:
-
75kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDLG
-
Maximum Digging Height:
-
5625mm
-
Maximum Digging Depth:
-
5060mm
-
Max Digging Radius:
-
7790mm
-
Rated Speed:
-
3.0 / 5.1km/hour
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
-
Product name:
-
hydraulic crawler small 13 ton excavator mini bagger for sale
-
Keywords:
-
Construction Equipment
-
Brand:
-
SDLG
-
Model:
-
6135F
-
Application:
-
Building
-
Color:
-
Customized
-
Engine model:
-
SD40B
-
Engine type:
-
four-stroke,turbocharged,inter-cooled
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
Certification:
-
ISO
Quick Details
-
Operating Weight:
-
12575kg
-
Bucket capacity:
-
1.9m3
-
Engine Brand:
-
Deutz
-
Power:
-
75kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDLG
-
Maximum Digging Height:
-
5625mm
-
Maximum Digging Depth:
-
5060mm
-
Max Digging Radius:
-
7790mm
-
Rated Speed:
-
3.0 / 5.1km/hour
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
-
Product name:
-
hydraulic crawler small 13 ton excavator mini bagger for sale
-
Keywords:
-
Construction Equipment
-
Brand:
-
SDLG
-
Model:
-
6135F
-
Application:
-
Building
-
Color:
-
Customized
-
Engine model:
-
SD40B
-
Engine type:
-
four-stroke,turbocharged,inter-cooled
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
Certification:
-
ISO
Product Description

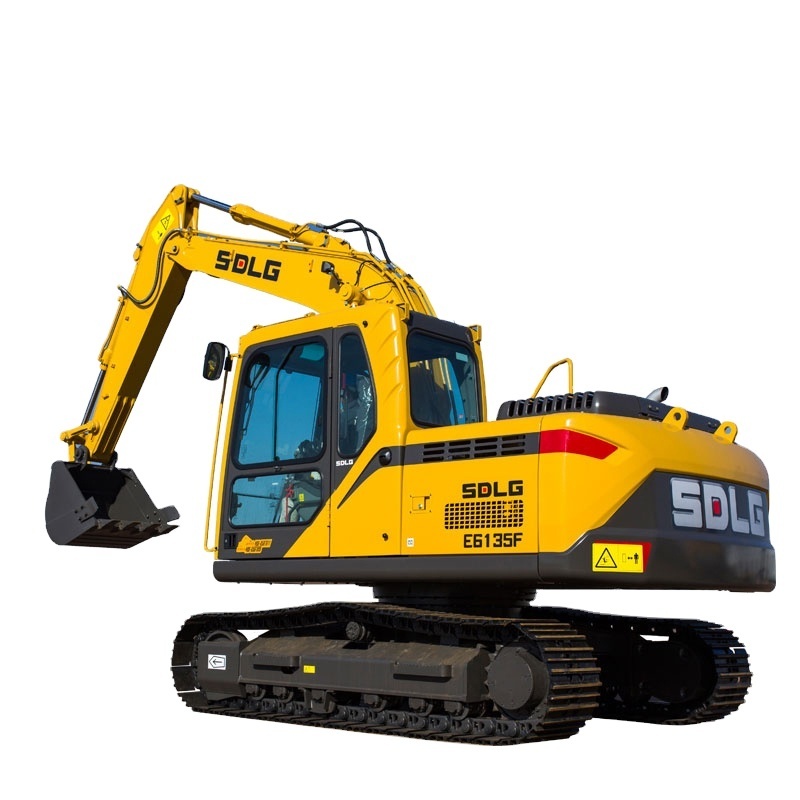

SDLG E6135F China compact hydraulic crawler small 13 ton excavator mini bagger for sale
Product Paramenters
|
|
|
|
|
|
||
|
Overall width of upper assembly
|
2450mm
|
|
|
|
|
|
|
Overall width
|
2490mm
|
|
|
|
|
|
|
Overall height
|
2830mm
|
|
|
|
|
|
|
Tail swing radius
|
2200mm
|
|
|
|
|
|
|
Overall height of engine hood
|
2080mm
|
|
|
|
|
|
|
Ground clearance of counterweight
|
900mm
|
|
|
|
|
|
|
Wheelbase
|
2700mm
|
|
|
|
|
|
|
Crawler length
|
3440mm
|
|
|
|
|
|
|
Crawler gauge
|
1990mm
|
|
|
|
|
|
|
Crawler pad width
|
500mm
|
|
|
|
|
|
|
Min. ground clearance
|
430mm
|
|
|
|
|
|
|
Overall length
|
7340mm
|
|
|
|
|
|
|
Overall height of boom
|
2830mm
|
|
|
|
|
|
|
Overall parameters
|
|
|
|
|
|
|
|
Bucket capacity
|
0.48m³
|
|
|
|
|
|
|
Overall operating weight
|
12300kg
|
|
|
|
|
|
|
Max. excavation force
|
85KN
|
|
|
|
|
|
|
Slew speed
|
11r/min
|
|
|
|
|
|
|
Traveling speed (low/high)
|
3.0/5.1km/h
|
|
|
|
|
|
|
Average ground pressure
|
40.9kPa
|
|
|
|
|
|
|
Max. digging radius
|
7790mm
|
|
|
|
|
|
|
Max. digging depth
|
5060mm
|
|
|
|
|
|
|
Max. digging height
|
7900mm
|
|
|
|
|
|
|
Max. dumping height
|
5625mm
|
|
|
|
|
|
|
Min. front slewing radius
|
2642mm
|
|
|
|
|
|
|
Engine
|
|
|
|
|
|
|
|
Model
|
BF4M2012
|
|
|
|
|
|
|
Type
|
Four-stroke,inter-cooled, supercharged
|
|
|
|
|
|
|
Rated Power@Revolution Speed
|
75kW
|
|
|
|
|
|
|
Displacement
|
4038mL
|
|
|
|
|
|
|
Cylinder bore × stroke
|
101*126mm
|
|
|
|
|
|
|
Emission standard
|
GB20891-2014 China Phase III
|
|
|
|
|
|
|
Rated fuel consumption
|
224g/kw.h
|
|
|
|
|
|
|
Max. torque
|
425N.m
|
|
|
|
|
|
|
Traveling/swing system
|
|
|
|
|
|
|
|
Qty. of carrier rollers (single side)
|
1
|
|
|
|
|
|
|
Qty. of track rollers (single side)
|
6
|
|
|
|
|
|
|
Traveling brake type
|
Wet disc brake
|
|
|
|
|
|
|
Swing mode
|
Hydraulic drive internal tooth
single-row ball-bearing |
|
|
|
|
|
|
Swing brake type
|
Wet disc brake
|
|
|
|
|
|
|
Hydraulic system
|
|
|
|
|
|
|
|
Hydraulic control type
|
Pilot proportional control valve
|
|
|
|
|
|
|
Hydraulic system type
|
Single pump load sensing system
|
|
|
|
|
|
|
Max. flow
|
220+20
|
|
|
|
|
|
|
Operating pressure
|
330kgf/cm2
|
|
|
|
|
|
|
Fill capacity
|
|
|
|
|
|
|
|
Fuel
|
260L
|
|
|
|
|
|
|
Engine oil
|
13L
|
|
|
|
|
|
|
Hydraulic oil
|
205L
|
|
|
|
|
|
|
Antifreeze
|
23L
|
|
|
|
|
|
Related Production To Choose
Online Service
Company Introduction
SDLG founded in 1972,is a world-famous manufacturer and service provider of loaders,excavators,rollers, backhoes and related parts in more than 130 countries and regions.
Our Advantages
Packing&Shipping
FAQ
yes,we SDLG are an official leading manufacture in construction machinery in China.
2、What kind terms of payment can be accepted?
Normally we can work on T/T or L/C term.
3、What about the delivery time?
7-30 days after receving the deposit.
4、what about the warranty time?
12 months after shipment or 2000 working hours.
