Large volume grp modular panel water tank

Large volume grp modular panel water tank

FOB Reference Price: Get Latest Price

≥1 Cubic meter

US $165

≥20 Cubic meter

US $160

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: /

Weight:: 120

Size:: 100*100*100

Power:: /

Productivity:: /

Weight (KG):: 120 kg

material:: FRP/GRP/SMC

process:: molded

Name:: Large volume grp modular panel water tank

Capacity:: 1-5000M3

panel size:: 0.5*0.5m,1*0.5m,1*1m,1*2m

Panel thickness:: 6mm-24mm

Quick Details

Core Components:: Panel

Place of Origin:: Shandong, China

Brand Name:: GRAD

Material:: /

Weight:: 120

Size:: 100*100*100

Power:: /

Productivity:: /

Weight (KG):: 120 kg

material:: FRP/GRP/SMC

process:: molded

Name:: Large volume grp modular panel water tank

Capacity:: 1-5000M3

panel size:: 0.5*0.5m,1*0.5m,1*1m,1*2m

Panel thickness:: 6mm-24mm

Product Description

Large volume grp modular panel water tank

GRP modular panel water tank is assembled by moulding single board, sealing , metallic structure, and plumbing. We can assemble the one with 0.125m³~5,000m³ according to your need. It is a new product used internationally . Assembled using FRP board possessing the advantages of non-pollution, light in weight, corrosion proofing, long service live and simple maintenance. High water quality is assured for the use of food grade resin. GRAD grp modular panel water tank had exported into Spain,Philippines, South Africa, Iran, Australia, Colombia, Lebanon, The united Arab emirates and so on.And it gained good honor with its high quality and good price.

Cautions

1. Please do not store water higher than 70°C or other liquid (chemicals, oil and so on).
2. Keep away from fire.
3. Prevent pollutants and plunges from outside.
4. Use soft apparatus to clean. As to the new water tank, clean twice before use.

Applications
(1) Life and fire fighting water supply system
(2) Architectural water storage tank, adjust the water tank, fire water tank, the expansion of the procurement system and
condensed to water tank
(3) Boiler system of the supplementary water tank, heat preservation water tank.
(4) It can be used in water purification, water treatment

STEP-BY-STEP ASSEMBLY
Step 1. Install steel footings on leveled concrete foundations.
Step 2. Align GRP panels to be pre-assembled.
Step 3. Place rubber sealant from ready-to-use roll between panels.
Step 4. Connect panels with bolts and nuts.
Step 5. Position bottom panel sections, and finish up base of tank.
Step 6. Position three sides of the tank.
Step 7. Position and fix roof panels and if required, roof support pipes and plates.
Step 8. Install reinforcement if required.
Step 9. Close up the tank with the fourth side.
Step 10. Finish the internal or external reinforcement.
Step 11. Fill and test.

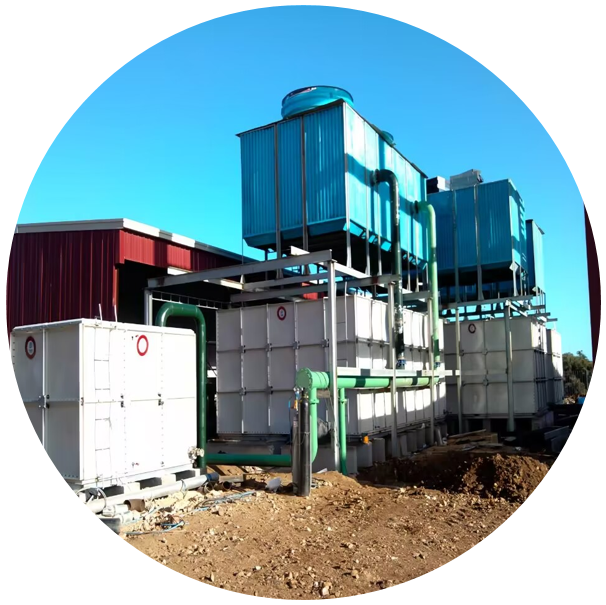

Project show

Project in Dubai

Project in Equatorial Guinea

Project in Columbia

Project in Bengal

Project in South Africa

Project in Samoa

Specification

parameter	GRAD water tank	Other water tank
Tensile strength(Mpa)	≥60	≥60
Bending strength(Mpa)	≥120	≥100
Bending modulus(Gpa)	≥7.0	-
Pap hardness	≥60	≥60
Bibulous rate(%)	≤0.5	≤1.0
Glass fiber content(%)	≥27	≥25
Maximum distortion of side wall	≤0.5%	≤0.5%
distortion of the bottom	≤8mm.	≤8mm.
