New Smart Self Service Freshly Ground Hot Coffee Vending machine

Introducing the new Brewi Eligo beverage solution. With its curved features, touch-screen interface and compact design, its elegant look will enhance any establishment. But it's what's inside that sets the Eligo apart from other beverage machines. Designed from the ground up to be easily accessed for servicing and maintenance, the Eligo brings together innovative features with premium components from some of Europe's most respected manufacturers, resulting in flexible and reliable machine operation that is easy to monitor and support.

Featuring high quality Italian pressure boiler and valve system, Swiss variable brewer and grinder, a configurable, modular platform that supports many beverage options, the Eligo delivers in quality of vended product and operational reliability.

End user operation of the Eligo is provided in either static capacitive or fully dynamic touch screen operation with the opportunity to present media advertising during beverage dispensing. For service operation the Eligo incorporates sophisticated control and monitoring features for remote, worry free operation including remote interface change, remote recipe adjustment and full telemetry of machine operation monitored from anywhere in the world.

Discover the Brewi Eligo today. Ask for a demonstration or download our brochure.

QUALITY

AND

ENJOYMENT

EVERYTIME

Additional Media Display while Dispensing

Designed from the ground up to be easily accessed for servicing and maintenance, the Eligo combines innovative features with premium components from some of Europe's most respected manufacturers. Bringing together flexible and reliable machine operation with unsurpassed beverage quality, the Eligo sets the standard for beverage vending solutions.

 Bean-to-cup configurations
 Modular platform
 Swiss/German manufactured, high quality,
 variable brewer & grinder
 Italian pressure boiler system
 High capacity bean hopper
 Up to 260 drinks per canister refill (2.5L unit)**( ** Milk based drinks with 8oz cup fill)
 Platinum cured piping throughout
 System capable of delivering up to 120¹/240² cups/hour (1:B2C single espresso ,2:Instant 8Oz cup fill)
 Accommodates large and small cup sizes
 Jug fill by removing the drip tray

HINGED ACCESS LID ⑴

Easy access to ingredient containers for

ease of refill, removal and cleaning, with an
integrated automatic interlock switch.

BEAN HOPPER ⑵

Large 1.7Kg capacity with removable lid to
keep bean aroma. A clear window and bean
illumination show the consumers the real
bean ground for their beverage.

CANISTERS ⑶

Modular design allows for small, medium
and large canisters to be used, with NSF food
grade approved material used throughout.

CONSTRUCTION ⑷

The internals of the machine are food grade
stainless steel and designed to be easy
access for service and maintenance.

SWISS GRINDER ⑸

Swiss manufactured ceramic burrs ensure
a consistent grind, and an analogue
adjustment mechanism means the grind
can be tailored to suit exacting tastes.

HINGED FRONT DOOR ⑹

The one piece injection moulded door fully
encapsulates the electronics of the machine,
while a locking mechanism prevents
tampering with all ingredients.

SIDE PANEL ⑺

Side panels are easily removed for access
to machine internals with just two screws for
rapid service and maintenance.

⑻ BREWER

Brewer allows full barista style adjustments
giving the highest quality drink tailored to
individual beans, with shot size variable from
5 - 15g of ground coffee.

⑼ MIX ING SYSTEM

Quick release system for easy cleaning, the
modular design allows for easy change from
one to two mixers. NSF food grade material
used throughout.

⑽ INTERNAL COVER

A removable injection moulded splash cover
has been integrated for easy cleaning of the
inside of the machine.

⑾ WASTE BIN

A one piece injection moulded part to
facilitate easy cleaning, the bin volume
allows a full bean hopper to be dispensed
before it needs emptying.

⑿ BOILER SYSTEM

High quality Italian boiler and solenoids
have been incorporated to give consistent
temperatures and economical power usage.

⒀  ADJUSTABLE FEET

Height adjustable feet allow the machine to be
levelled on uneven surfaces, and raised for easy
cleaning underneath.

⒁ DRIP TRAY

Easy removal and discarding of waste liquids.
Electronic level/presence sensors give on-
screen warnings. Chromed wire grille retains
quality appearance in volume usage.

Available in either static, or fully dynamic, capacitive touch screen operation; the Eligo incorporates sophisticated control and monitoring features for remote worry free operation including interface change, recipe adjustment and full telemetry of machine operation which can be monitored from anywhere in the world.

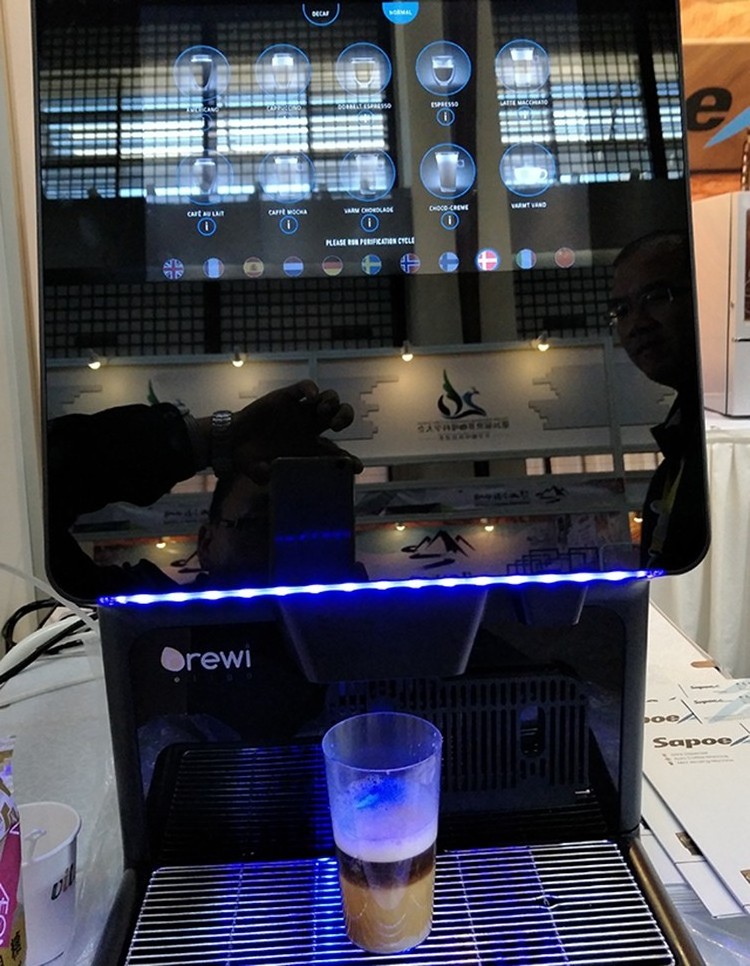

DYNAMIC TOUCH SCREEN

BEAN TO CUP CONFIGURATIONS
