Quick Details
-
Place of Origin:
-
Taiwan, China
-
COLOR:
-
GREEN
-
ANVIL:
-
1/2"
-
SPEED:
-
7500 RPM
-
TORQUE:
-
290NM
-
Certification:
-
ISO9001
Quick Details
-
Warranty:
-
1 YEAR
-
No-Load Speed:
-
7500 RPM
-
Model Number:
-
GWI-308LB
-
Place of Origin:
-
Taiwan, China
-
COLOR:
-
GREEN
-
ANVIL:
-
1/2"
-
SPEED:
-
7500 RPM
-
TORQUE:
-
290NM
-
Certification:
-
ISO9001

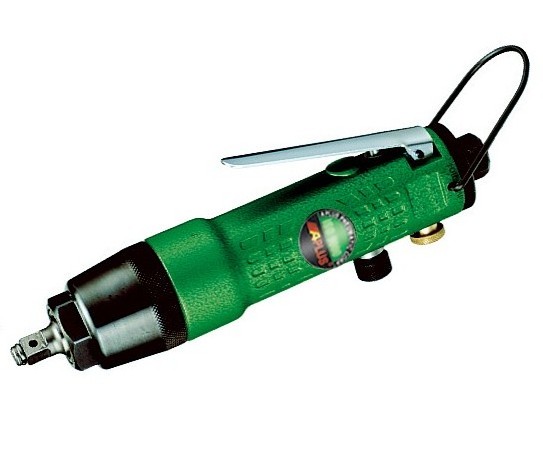

APLUS GWI-308LB AIR WRENCH, PIN HITTER TYPE
EVERY MOTOR ROTATION CAUSES TWO HAMMER
PIN IMPACTS AT THE SAME TIME TO KEEP BALANCE
LOW VIBRATION AND LARGER OUTPUT POWER
APLICATION:
APPLY TO HEAVY-PRODUCTIVE ASSEMBLY LINES SUCH
AS MOTOR- VEHICLES, BICYCLES AND MOTOR
Specification (air pressure at 90PSI, 6.2Bar, 6.3kg/cm2)
| Model |
Bolt Size Capacity |
Max. Torque | Free Speed | Air consumption | Overall Length | Air Inlet | Net Weight | ||||
| (mm) | (NM) | ft-lb) | RPM | l/min | cfm | mm | inch | (P.T) | kg | lb | |
| GWI-308B | M14 | 290 | 214 | 7500 | 240 | 8.5 | 230 | 9.06 | 1/4 | 1.3 | 2.87 |
