Quick Details
Quick Details
-
Brand Name:
-
CHINT
-
Place of Origin:
-
China
-
Model Number:
-
NQ2-15P/1 220V/13A

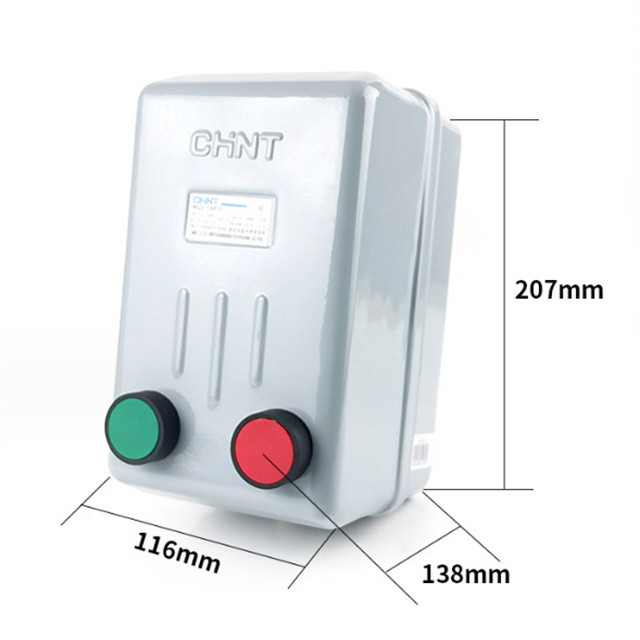

NQ2 series electromagnetic starter (hereinafter referred to as starter), mainly suitable for AC 50Hz(or 60Hz), rated operating voltage up to 690V, rated control power up to 15kW(current up to 32A) in AC-3, 380/400V use category. The starter is used to control the direct start, stop and forward and reverse operation of the motor. The starter with thermal overload relay can protect the motor from overload or phase break. The starter is ideal for use with air compressors, etc. Standard: GB/T 14048.4, IEC/EN 60947-4-1
Rated operating current: 12/18/25/32A
Coil control voltage: 36/110/220/380V
Coil suction voltage: 85%~110%Us
| Product model | Type of AC contactor fitted | Fitted thermal relay model |
| NQ2-15P/1 | NC1-12 | NR2-25 |
| NQ2-15P/2 | NC1-18 | NR2-25 |
| NQ2-15P/3 | NC1-25 | NR2-25 |
| NQ2-15P/4 | NC1-32 | NR2-25 |
| NR2-36 |
