Quick Details
-
Place of Origin:
-
shandong,china
-
Dimension(Long * Breadth * High):
-
2600x1240x2230mm
-
Marketing Type:
-
New Product
-
Warranty of core components:
-
1 year
-
Model Number::
-
DY840
-
Rated power/speed::
-
26.9 Kw/2800 r/min
-
Attachments:
-
Snow blower
-
Color:
-
Customer's Requiement
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
CE, EPA, FOPS ROPS
Quick Details
-
Engine Brand:
-
YANMAR
-
Power:
-
33HP
-
Brand Name:
-
TAIAN
-
Place of Origin:
-
shandong,china
-
Dimension(Long * Breadth * High):
-
2600x1240x2230mm
-
Marketing Type:
-
New Product
-
Warranty of core components:
-
1 year
-
Model Number::
-
DY840
-
Rated power/speed::
-
26.9 Kw/2800 r/min
-
Attachments:
-
Snow blower
-
Color:
-
Customer's Requiement
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
CE, EPA, FOPS ROPS

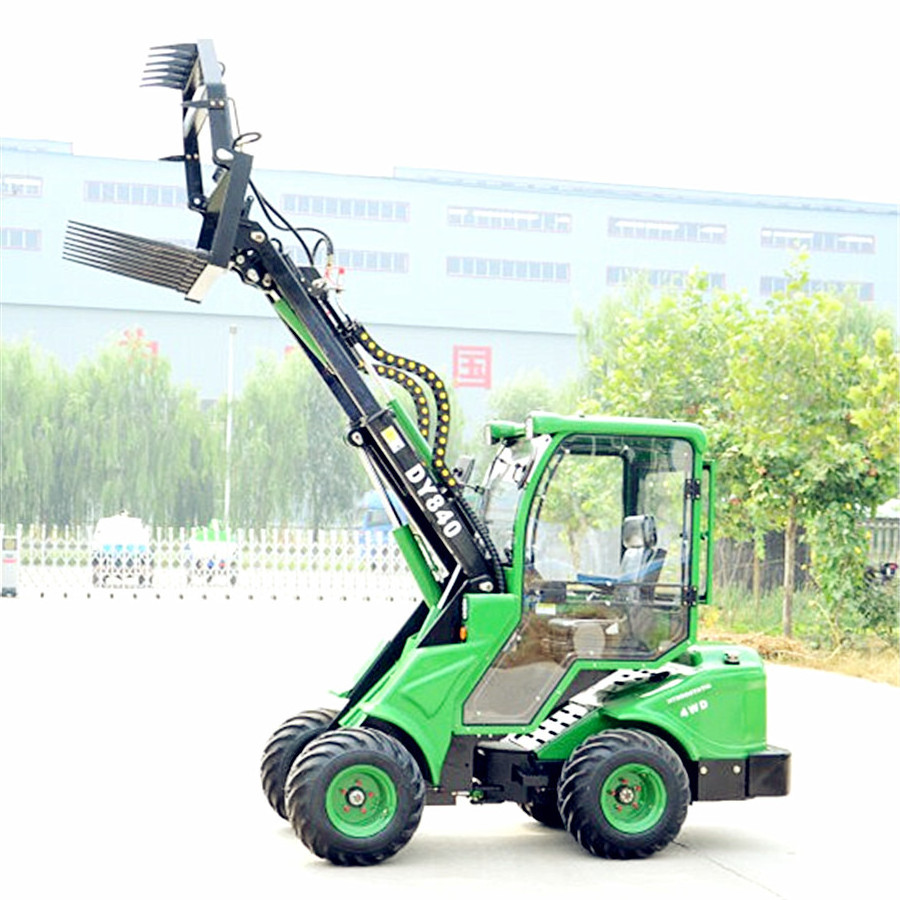

TAIAN DY840 Multi Functions Articulated Mini Wheel Loader
|
Model |
DY840 |
|
Dimension (LxWxH) |
2600 X1240 X 2 23 0mm |
|
Max. reach(boom extended) |
3000mm |
|
Max. reach(boom retracted) |
2480mm |
|
Bucket capacity |
450L |
|
Rated loading capacity |
850kg |
|
Tipping load |
1300kg |
|
Min. turning radius |
2065mm |
|
Turning angle |
45 Degree |
|
Speed |
0- 12 km/h |
|
Weight |
1 860 kg |
|
Standard tire |
26X12-12 |
|
Tire pressure |
2.8 bar |
|
Oil tank capacity |
40L |
|
Pressure |
190bar |
|
Working oil flow |
33.5 L/min x2 |
|
Tracking oil flow |
78L/min |
|
Oil model(mineral oil) |
L-HL46 |
|
Engine brand |
Kubota V1505-E3B |
|
Rated power /speed |
24.5 Kw / 2800 r/min |
|
Fuel tank capacity |
23L |
|
Battery |
60Ah, 12V |
DY840 Features:
* Compact design , Easy to handle .
* Drive speed as high as 12km/h
* Small turning radius .
* Telescopic B oom as standard .
* Self L evering.
* Differential L ock.
* Boom F loating.
* Optional R ear H ydraulic O utput .
* Convenient maintenance.
* Great maneuverability – works in tight situations as well.
* Sound alarm for maintenance and warnings.
* High-flow auxiliary hydraulics runs almost any attachment.
* European standard quick coupling plate .
*CE, FOPS & ROPS Certified.
*All Cab options available:Closed cab with door, Collapsible Roll Bar, and Steel Proof Canopy.
Color & Brand
Standard color is orange, but just with a reference color code, we can make it ideal appearance as you excepted.
Our brand name is "TAIAN", but OEM is acceptable and welcomed.
LCL: PLYWOOD BOX 1SET
FCL: NUDED PACKAGE 20'GP=2SETS / 40'GP=4SETS
1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
3.The repairation or replacement for the parts should not exceed the warranty period.
4.The warranty is valid on the condition of all the terms listed in the contract was observed.
