Quick Details
-
Brand Name:
-
P+F
-
Theory:
-
Inductive
-
Output:
-
NO
-
Description:
-
Slot Proximity Sensor switch
-
Detection distance:
-
3.5 mm
-
Reference target:
-
10 x 7 x 0.3 mm3, Al
-
Output type:
-
2-wire
-
Degree of protection:
-
IP67
-
Operational temperature:
-
-50 ~ +100 °C
-
Cable Length:
-
500 mm
-
Operating voltage UB:
-
5 ~ 25 V
Quick Details
-
Use:
-
Slot Sensor
-
Model Number:
-
SJ3,5-S1N
-
Place of Origin:
-
China
-
Brand Name:
-
P+F
-
Theory:
-
Inductive
-
Output:
-
NO
-
Description:
-
Slot Proximity Sensor switch
-
Detection distance:
-
3.5 mm
-
Reference target:
-
10 x 7 x 0.3 mm3, Al
-
Output type:
-
2-wire
-
Degree of protection:
-
IP67
-
Operational temperature:
-
-50 ~ +100 °C
-
Cable Length:
-
500 mm
-
Operating voltage UB:
-
5 ~ 25 V
Pepperl+Fuchs 5V SJ3,5-S1N SIL 3 Inductive Slot Proximity Sensor switch

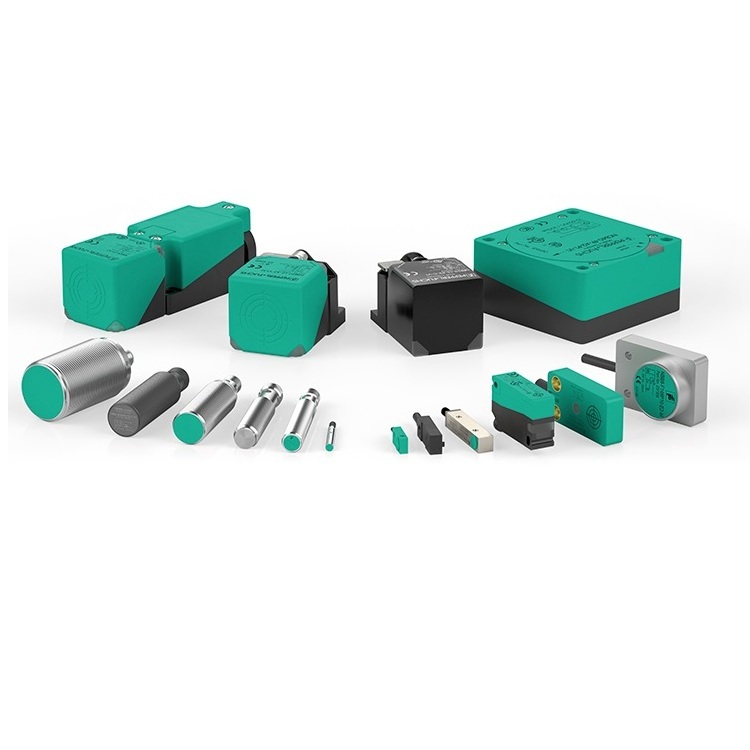

Pepperl+Fuchs offers innovative, high quality inductive sensors to meet the needs of the worldwide automation and process control markets
The inductive slot sensors are suitable for use in particularly tight installation spaces, e.g. for limit detection in pointer instruments. In addition to
the reference target, ferromagnetic metals can also be used as actuator elements. With a variety of approvals for use in hazardous areas, the
sensors are equipped for global use.
In combination with a safety switch amplifier from Pepperl+Fuchs, e.g. KFD2-SH-EX1, use in safety-related applications up to SIL 3 is possible.
The sensor can also be used in applications up to SIL 2 with safety-related NAMUR switch amplifiers.
Polarity reversal and short-circuit protected Proximity Sensor
LED status indication
Usable up to SIL 3 acc. to IEC 61508
Extended temperature range
Ferrous targets
Switching function : Normally closed (NC)
Output type : NAMUR with safety function
Slot width : 3.5 mm
Depth of immersion (lateral) : 5 ... 7 typ. 6 mm
Reference target : 10 x 7 x 0.3 mm3, Al
Output type : 2-wire
Nominal voltage Uo : 8.2 V (Ri approx. 1 kΩ)
Operating voltage UB : 5 ~ 25 V
Switching frequency f : 0 ~ 3000 Hz
Hysteresis : with NAMUR switch amplifier: 0.045 mm (e. g. Pepperl+Fuchs KCD2-SR-Ex1.LB)
with safety switch amplifier 0.025 mm (e. g. Pepperl+Fuchs KFD2-SH-Ex1)
Suitable for 2:1 technology : yes , with reverse polarity protection diode
Rate of current rise : -4.5 mA / mm
Current consumption :
Measuring plate not detected : ≥ 3 mA
Measuring plate detected : 0.2 ... 1 mA
Safety Integrity Level (SIL) : SIL 3
MTTFd : 11800 a
Mission Time (TM) : 20 a
Diagnostic Coverage (DC) : 0 %
Ambient temperature : -50 ~ +100 °C (-58 ... 212 °F)
Safety application: -40 ~ +100°C
Connection type : flexible leads LiY
Housing material : PBT
Degree of protection : IP67
Cable diameter : 1.1 mm ± 0.1 mm
Bending radius : > 10 x cable diameter
Cable Material : PVC
Core cross section : 0.14 mm2
Cable Length : 500 mm
