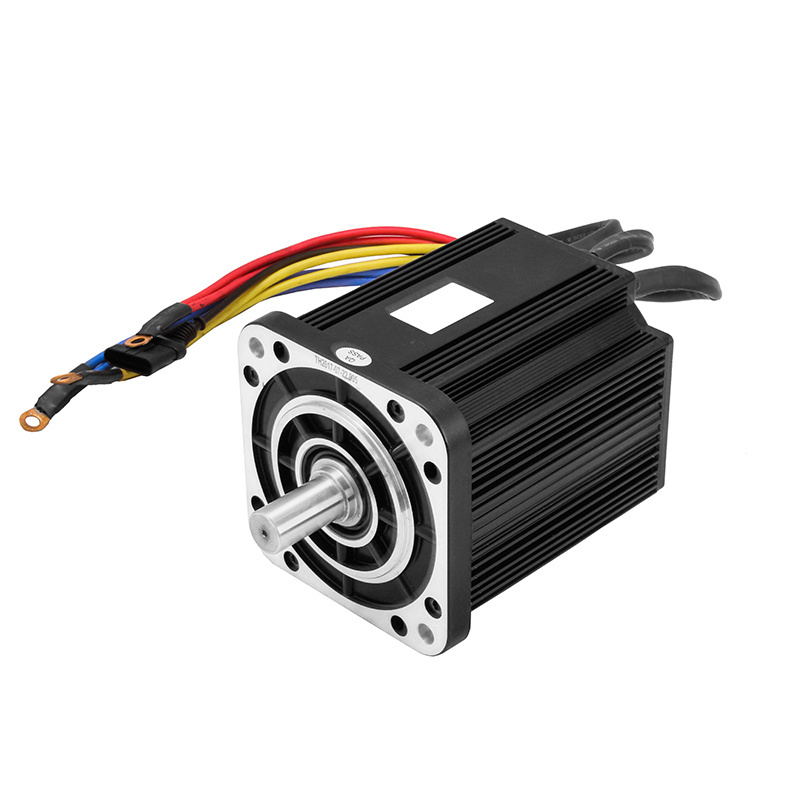

Quick Details
-
Warranty:
-
13 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DMKE
-
Model Number:
-
D180BLD5000-48A-30S
-
Torque:
-
16N.M
-
Direction of Rotation:
-
CW/CCW
-
Motor dimension:
-
180mm
-
Rated voltage(V):
-
48V
-
Rated Power:
-
5kw
-
Certificates:
-
CE, ROSH, LVD, EMC
-
Humity:
-
<90%
-
Sample delivery time:
-
20 days
-
Bulk delivery time:
-
30days
-
protection rank:
-
IP65
-
Customized:
-
Welcome
Quick Details
-
Speed(RPM):
-
3000RPM
-
Continuous Current(A):
-
130A
-
Efficiency:
-
IE 2
-
Warranty:
-
13 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DMKE
-
Model Number:
-
D180BLD5000-48A-30S
-
Torque:
-
16N.M
-
Direction of Rotation:
-
CW/CCW
-
Motor dimension:
-
180mm
-
Rated voltage(V):
-
48V
-
Rated Power:
-
5kw
-
Certificates:
-
CE, ROSH, LVD, EMC
-
Humity:
-
<90%
-
Sample delivery time:
-
20 days
-
Bulk delivery time:
-
30days
-
protection rank:
-
IP65
-
Customized:
-
Welcome
Click the each picture for more detail information.
For More Details Of Product Specifications,
Please Consult Customer Service To Obtain The Product Catalog.
Kindly remind:
As different customers may need different motor parameter for fitting your equipment. If below motor can't fit your need, please kindly send inquiry to us with information for rated power or torque,rated speed, and rated voltage for our new size drawing making for you. Thanks a lot!
Dimensions (Unit: mm )
Mounting screws are included with gearhead，please ontact us for motor size -L length based on different specifictaion.
Dimensions (Unit: mm )
Mounting screws are included with gearhead，please ontact us for motor size -L length based on different specifictaion.
|
Model
|
D180BLD5000-48A-30S
|
D180BLD5000-72A-30S
|
|
|
Power W
|
5000w
|
5000w
|
|
|
Voltage V
|
48V
|
72V
|
|
|
Rated current A
|
130.22A
|
86.82A
|
|
|
Rated speed (rpm/min)
|
3000
|
3000
|
|
|
No-load speed(rpm/min)
|
3300
|
3300
|
|
|
Rated torque N.m
|
16
|
16
|
|
|
Motor Weight(KG)
|
26
|
26
|
|
|
Poles
|
8 poles
|
8 poles
|
|
|
protection rank
|
IP65
|
IP65
|
|
|
Shaft diamter(mm)
|
35mm
|
35mm
|
|
|
L length(mm)
|
273mm
|
273mm
|
|
|
Warm remind
|
Contact us now for L length based on different power, speed and rated torque.
|
|
|
Click the each picture for more detail information.
Customizable accessories:motor length, shaft, voltage,power,rated speed and so on.
Feature :
A. High power range from 5W to 20KW for bldc brushless dc motor&controller
B. Rich stock and fast shipping time in 10-20 working days
C. Easy for speed & direction adjustment
D. 16mm to 220mm size range with low noisy
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
J. Permanent magnet brushless dc motor
K.High-performance and stable matching driver and controller
Notice for Usage:
Feature :
A. High power range from 5W to 20KW for bldc brushless dc motor&controller
B. Rich stock and fast shipping time in 10-20 working days
C. Easy for speed & direction adjustment
D. 16mm to 220mm size range with low noisy
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
J. Permanent magnet brushless dc motor
K.High-performance and stable matching driver and controller
Notice for Usage:
1).Please don't use motor out of the range of nameplate of gear box and motor and the specification of product
catalogue, avoiding getting an electric shock, hurting or damaging the device.
catalogue, avoiding getting an electric shock, hurting or damaging the device.
2).Please do not put your fingers and things into
the opening part of gear or motor ,in order to prevent getting and electric shock,hurting,catching a fire of damaging device etc.
3).Please do not use the Injured gear head of motor, in prder to orevent hurting,catching a fire etc.
the opening part of gear or motor ,in order to prevent getting and electric shock,hurting,catching a fire of damaging device etc.
3).Please do not use the Injured gear head of motor, in prder to orevent hurting,catching a fire etc.
4).Please do not put off the
nameolate.
nameolate.
5) If the products are reformed by the customers personally, it no longer belongs to the guarantee scope, and our
company doesn’t undertake any responsibility.
company doesn’t undertake any responsibility.
6) When you move it, if it shed off or tilt to one side, it is very dangerous,
please pay more attention.
please pay more attention.
7) Please must not put the flammable thing near the gear head and motor, in order to prevent catching a
fire.
fire.
DMKE motor is a specialized motor company founded in Y2009 by Haibing Jian,who boats 18 years of experience in the motor and controller industry. Our company located in Panyu,Guangzhou,China.
Our main products are brushless dc motor, brushless controller, dc servo motor and controller, planetary gear motors, worm gear motors, brush dc motor and AC motor. They are widely used in AGV,RGV,robots, barrier gate, lifting equipment, cleaning machines,
medical equipment, cafe machinery, packing machinery, amusement game machines, automobiles, industrial equipment etc.
With a plant area of 4000 square meters, we have the independent design and development capabilities and strong technical
force,with an annual output of more than 1 million units. We can accept OEM motor and controller based on customers’ need.
DMKE motors were exported to 20 countries, including the United States, Germany, Italy, the United Kingdom, Poland,
Australia,Saudi Abrabia,Switzerland, Sweden, Singapore, Korea etc.
We are looking forward to establishing long-term business relationships together with you for mutual business success.success.
Our main products are brushless dc motor, brushless controller, dc servo motor and controller, planetary gear motors, worm gear motors, brush dc motor and AC motor. They are widely used in AGV,RGV,robots, barrier gate, lifting equipment, cleaning machines,
medical equipment, cafe machinery, packing machinery, amusement game machines, automobiles, industrial equipment etc.
With a plant area of 4000 square meters, we have the independent design and development capabilities and strong technical
force,with an annual output of more than 1 million units. We can accept OEM motor and controller based on customers’ need.
DMKE motors were exported to 20 countries, including the United States, Germany, Italy, the United Kingdom, Poland,
Australia,Saudi Abrabia,Switzerland, Sweden, Singapore, Korea etc.
We are looking forward to establishing long-term business relationships together with you for mutual business success.success.
Q1: What kind motors you can provide?
A1: For now, we mainly provide permanent magnet brushless dc motor, dc gear motor, micro dc motor, planetary gear motor, dc servo
motor, brush dc motors, with diameter range from 16 to 220mm,and power range from 5W to 20KW.
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 10% to 30% difference
than bulk price based on different style.
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and
shaft diameter etc. The price also varies according to different order qty. So it’s difficult for us to provide a price list. If
you can share your detailed specification and order qty, we’ll see what offer we can provide.
Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different
wire connection.
Q5: Is it possible for you to develop new motors if we provide the tooling cost?
A5: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make
our evaluation to see if we can arrange or not.
Q6:How about your delivery time?
A6: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the
order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales
confirmation for final reference.
Q7:What's your warranty terms?
A6: One year
A1: For now, we mainly provide permanent magnet brushless dc motor, dc gear motor, micro dc motor, planetary gear motor, dc servo
motor, brush dc motors, with diameter range from 16 to 220mm,and power range from 5W to 20KW.
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 10% to 30% difference
than bulk price based on different style.
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and
shaft diameter etc. The price also varies according to different order qty. So it’s difficult for us to provide a price list. If
you can share your detailed specification and order qty, we’ll see what offer we can provide.
Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different
wire connection.
Q5: Is it possible for you to develop new motors if we provide the tooling cost?
A5: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make
our evaluation to see if we can arrange or not.
Q6:How about your delivery time?
A6: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the
order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales
confirmation for final reference.
Q7:What's your warranty terms?
A6: One year
