Quick Details
-
Function:
-
All kinds of battery charger
-
Brand Name:
-
XYM
-
Model Number:
-
QA2000A
-
Input voltage and current:
-
90-264V/14A
-
output voltage and current:
-
24V/50A, 36V/40A, 48V/35A, 60V/30A, 72V/25A
-
Maximum Output Power:
-
2000W
-
Place of Origin:
-
Anhui, China
-
Certification:
-
CE, FCC, ETL, ROHS
Quick Details
-
Type:
-
Electric, CAR CHARGER, Fast Charger, Plug-In Charger
-
Port:
-
DC, AC
-
Material:
-
Aluminum Alloy
-
Function:
-
All kinds of battery charger
-
Brand Name:
-
XYM
-
Model Number:
-
QA2000A
-
Input voltage and current:
-
90-264V/14A
-
output voltage and current:
-
24V/50A, 36V/40A, 48V/35A, 60V/30A, 72V/25A
-
Maximum Output Power:
-
2000W
-
Place of Origin:
-
Anhui, China
-
Certification:
-
CE, FCC, ETL, ROHS
Product Description
|
Item
|

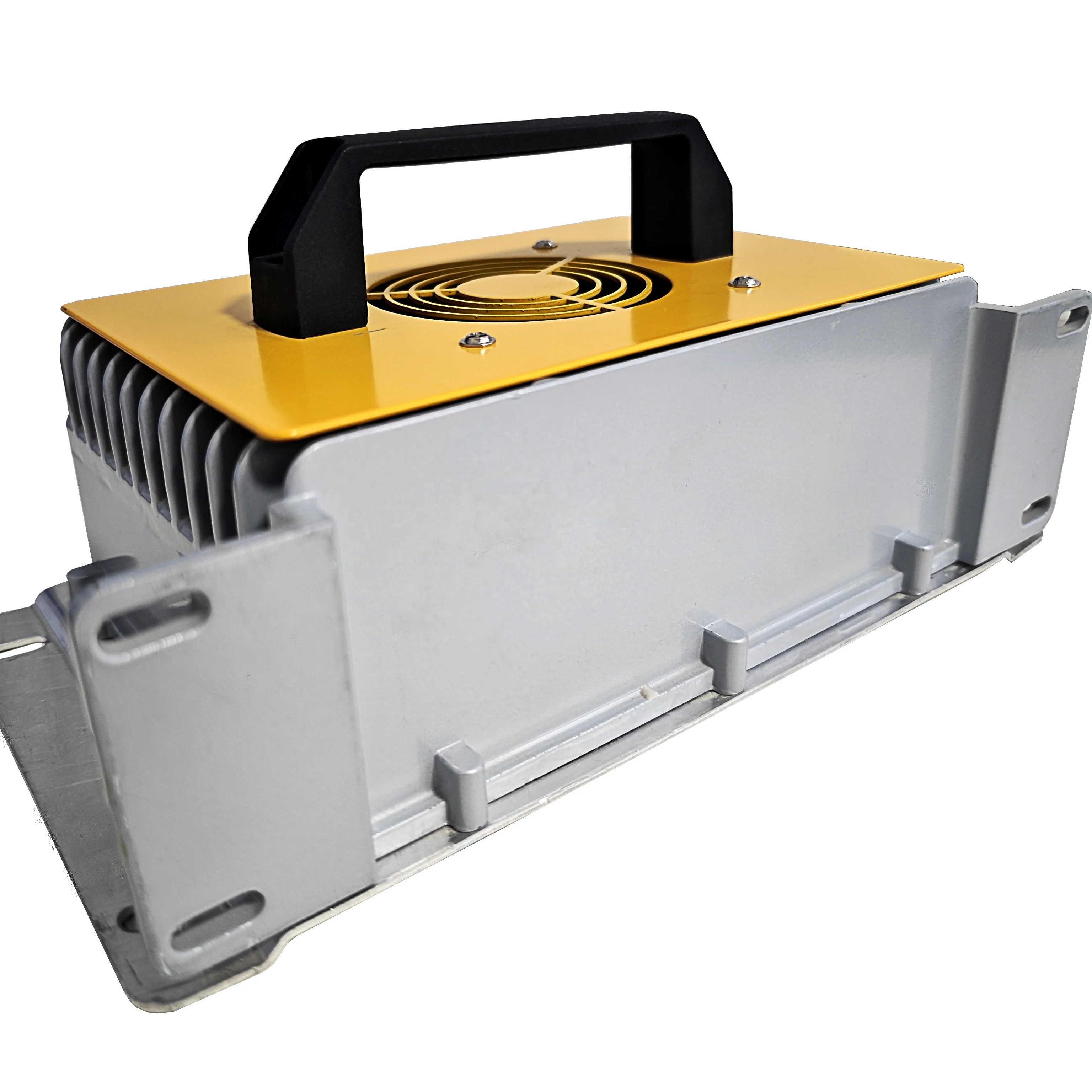

Smart Battery Charger
|
|
Brand
|
XYM
|
|
Model
|
QA2000A
|
|
Place of Origin
|
China
|
|
Material
|
Aluminum Alloy
|
|
Size
|
287x168x89mm/ 11.3x6.62x3.5 inches (not including the controller size)
|
|
Weight
|
4.5KG
|
|
Output Power
|
2000W
|
|
Input
|
24V/50A, 36V/40A, 48V/35A, 60V/30A, 72V/25A
|
|
Plug
|
According to client's country or other requirements
|
|
Waterproof Grade
|
IP67
|
|
Operating Temperature
|
-30~65℃
|
|
Storage Temperature
|
-40~95℃
|
|
Noise
|
≤45dB
|
|
Efficiency
|
≥93.0%
|
|
Power Factor
|
≥0.99
|
|
Certification
|
CE, FCC, ETL, ROHS
|
|
Warranty
|
2 Years
|
6 Protections Details:
1.Overheat Protection:
When the internal temperature of the charger exceeds the internal set value, the charging current
automatically decreases; When the ambient temperature exceeds 65C°, the charging machine protection: When the temperature recovers, the charging will be resumed automatically.
automatically decreases; When the ambient temperature exceeds 65C°, the charging machine protection: When the temperature recovers, the charging will be resumed automatically.
2.Battery Reverse Connection Protection:
When the battery is reversed, the internal circuit of the charger is disconnected from the battery, which will not damage the charger.
3.
No-load Protection:
No output when no battery is connected.
4.Short Circuit Protection:
When the output is short circuit, the internal circuit of the charger is disconnected from the battery, and the charge can be restored only when the battery is re-connected after the fault is removed.
5.Over Voltage Protection:
C
harging can still be done normally even when the mains power is as high as 250VAC.
6.Full Automatic Shutdown Protection:
When there is an abnormality in charging, the charger will automatically cut off power after 15 hours.
|
Models
|
Rated Voltage for Battery Pack
|
Max Output Voltage
|
Max Output current
|
CV
|
|
|
Transition/cut-off Current
|
||
|
|
|
|
|
Lead Acid
|
Li-ion
|
LiFePO4
|
Li
|
||
|
QA2000A-24V50A
|
24V
|
34V
|
50A
|
29.4V
|
29.4V
|
29.2V
|
5.0A
|
||
|
QA2000A-36V30A
|
36V
|
48V
|
40A
|
44.1V
|
42.0V
|
43.8V
|
4.0A
|
||
|
QA2000A-48V30A
|
48V
|
68V
|
35A
|
58.8V
|
54.6V
|
58.4V
|
3.0A
|
||
|
QA2000A-60V25A
|
60V
|
85V
|
30A
|
73.5V
|
67.2V
|
73.0V
|
2.5A
|
||
|
QA2000A-72V20A
|
72V
|
102V
|
25A
|
88.2V
|
84.0V
|
87.6V
|
2.5A
|
||
Production Flow
Packing&Shipping
This is the whole process from packing to delivery
Company Introduction
PowerForever is a state-level high-tech private enterprise established in 2011, focusing on the R & D, production and sales of battery charger and related power electronics components. Before officially registering PowerForever, we already widely engaged in the Lead acid batteries and Uninterruptable Power Supply manufacture since 2005. We emerged a German charger company and absorbed their advanced technology, then registered PowerForever in 2003. This background benefits us with a better understanding on how to design and manufacture qualified chargers.
PowerForever chargers have been widely used for Electric Wheelchairs, Scooters, Golf Trolley, Golf Carts, Electric Bikes, Motorcycles, Electric Truck, Light Electric Vehicles (LEVs), Electric Cars, Electric Forklifts, Automated Guided Vehicles and Carts (AGVs and AGCs), autonomous mobile platform (AMP), Battery Powered Electric Tug, Electric Aerial Work Platforms, Battery Powered excavator, Battery Powered Mining Equipment, Autonomous mobile robots (AMRs), MiR (Mobile Industry Robots), Electric Patrol Robot, Electric Yachts, Electric Surfboards, Electric Watercraft, Grounding Supporting Equipment, Battery Powered Trolleys, Electric Scrubbers, Electric Sweepers, Electric lawn movers, TURF CARE, robotic lawn mower, Snow Blowers, Electric Sled (sleigh) snow mobile, Electric Tools, Electric chainsaw (battery powered), Plant Protection UAVs (Unmanned Aerial Vehicle), Agricultural robotics platform, Military UAVs (Unmanned Aerial Vehicle), Military patrol aircraft, The Heavy Duty portable traffic signal and other battery powered vehicles & equipment.
PowerForever promise global leading quality with 2-year repair or replacement warranty as well as more reasonable price and better customized service, as a result, we have cooperated successfully with customers from more than 20 countries.
FAQ
1. What is your delivery time?
3. What is the operating & storage temperature range for the charger?
The delivery time is depends on the production time and the shipping methods.
For sample orders, the production time is around5-7 days, and shipping time by express is 3-5working days.
For orders of more than 100-500 pcs, the production time is around 10-15 days generally, the shipping time by sea around 15-30days, please well noted.
2. How to proceed an order?
2. How to proceed an order?
First, we need to know your battery type and series, battery nominal voltage , battery full charged
voltage, battery capacity. Second about the batteries. According to your battery capacity, we will recommend you the current matching your battery. Then we will suggest the most suitable charger for your reference. Base on the chargers you choose and your address, we will provide you a quotation for total cost.
voltage, battery capacity. Second about the batteries. According to your battery capacity, we will recommend you the current matching your battery. Then we will suggest the most suitable charger for your reference. Base on the chargers you choose and your address, we will provide you a quotation for total cost.
Lastly, we will draft your order on Alibaba or send you our bank account details as you required.
3. What is the operating & storage temperature range for the charger?
The operating temperature is -30℃ ~ 65℃, storage temperature is -40℃ ~ 95℃.
4. Can you also do OEM or ODM products for customers?
Yes, we could do OEM and ODM services for our customers around the world. You could forward your details demands to us via email.
5. Do you offer guarantee for the charger? If could, how long the warranty period can you offer？
4. Can you also do OEM or ODM products for customers?
Yes, we could do OEM and ODM services for our customers around the world. You could forward your details demands to us via email.
5. Do you offer guarantee for the charger? If could, how long the warranty period can you offer？
We offer 2 years warranty for our charger.
6. Are you a manufacturer/factory or trade company?
6. Are you a manufacturer/factory or trade company?
We are 100% battery charger manufacturer, and we now also doing our oversea business.
7. Do you have any certification of your battery charger products?
Yes, sure
We have ETL certification which is very suitable for North American market.
We also have CE certification which is quite suitable for European market.
By the way, we have ROHS as well.
For more information or questions, please feel free to contact us as below:
