Quick Details
-
Charging Port:
-
no
-
Connection:
-
ac
-
Voltage:
-
220v/380v
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Khons
-
Model Number:
-
G2
-
EV Charger Type:
-

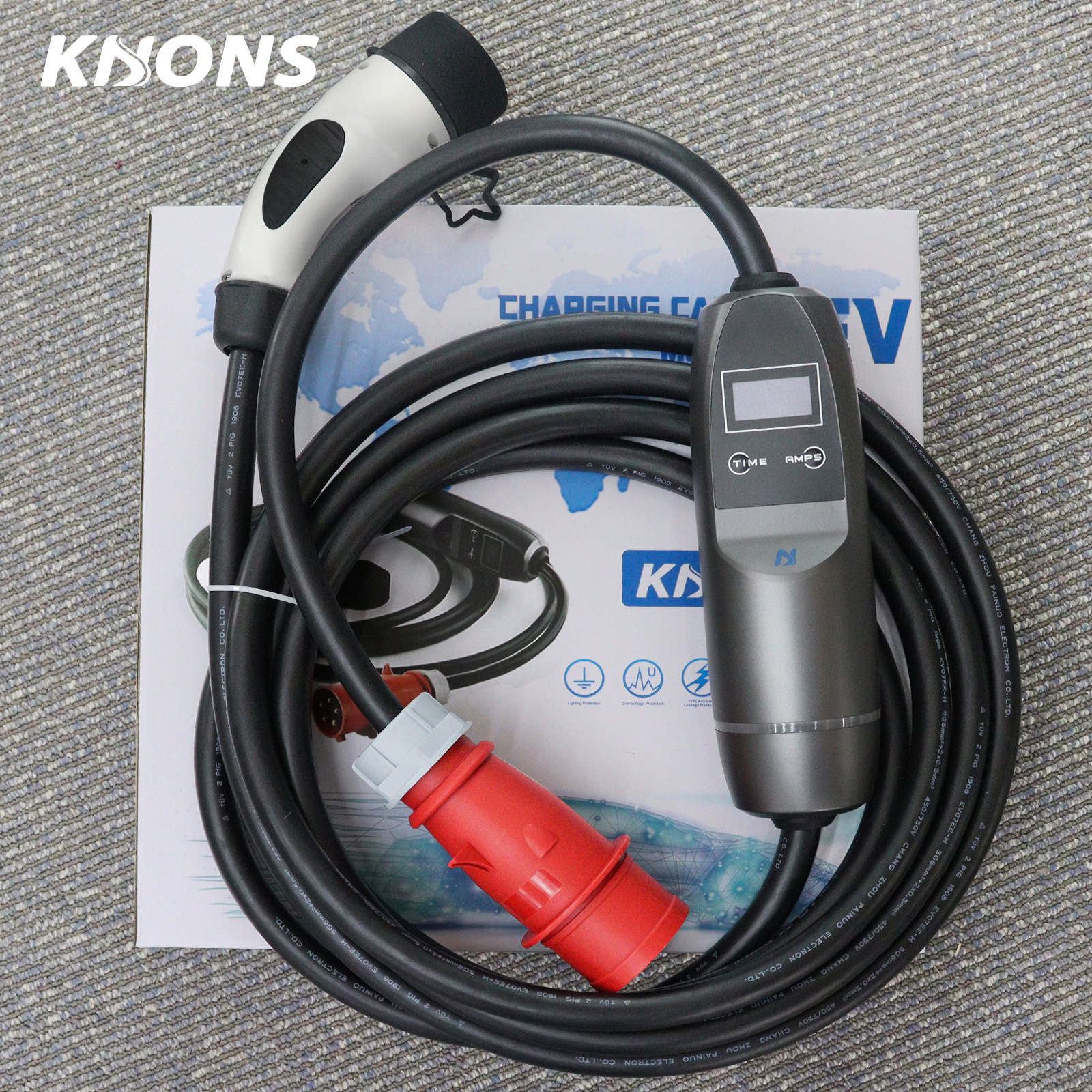

Portable EV charger 22kw type 2 EV charging cable
-
Application:
-
Home Use and public use charging cable EV charger
-
Rated Volt Input:
-
Single Phase: 110v-250v ; Three Phase: 110v-415v(380v)
-
Current Adjustable:
-
6A, 8A, 10A, 13A, 16A, 24A, 32A all amps adjustable
-
EV Connector/Plug Type:
-
J1772 Type 1; Mennekes Type 2 Connector
-
IP Protection:
-
IP65 for indoor and outdoor ev charging
-
Cable Length:
-
Standard 5m cable, 7.5m,10m and customize length available
-
Certificate:
-
CE; ROHS; TUV
-
Power:
-
3.3kw, 3.5kw, 7kw, 11kw, 22kw
-
Wall Side Plug Available:
-
Red CEE 3 phase 32a, 16A. blue CEE 32a, 16a. Other plugs available
Quick Details
-
Function:
-
screen display
-
Car Fitment:
-
Tesla
-
Type:
-
wired charger
-
Charging Port:
-
no
-
Connection:
-
ac
-
Voltage:
-
220v/380v
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Khons
-
Model Number:
-
G2
-
EV Charger Type:
-
Portable EV charger 22kw type 2 EV charging cable
-
Application:
-
Home Use and public use charging cable EV charger
-
Rated Volt Input:
-
Single Phase: 110v-250v ; Three Phase: 110v-415v(380v)
-
Current Adjustable:
-
6A, 8A, 10A, 13A, 16A, 24A, 32A all amps adjustable
-
EV Connector/Plug Type:
-
J1772 Type 1; Mennekes Type 2 Connector
-
IP Protection:
-
IP65 for indoor and outdoor ev charging
-
Cable Length:
-
Standard 5m cable, 7.5m,10m and customize length available
-
Certificate:
-
CE; ROHS; TUV
-
Power:
-
3.3kw, 3.5kw, 7kw, 11kw, 22kw
-
Wall Side Plug Available:
-
Red CEE 3 phase 32a, 16A. blue CEE 32a, 16a. Other plugs available
Products Description
|
Phase
|
Single phase
|
Three phase
|
|
Input/Output voltage
|
110~250Va.c.
|
110~450Va.c.
|
|
Frequency
|
50Hz/60Hz
|
50Hz/60Hz
|
|
Max. current
|
16A/32A
|
16A/32A
|
|
EV connector
|
Type 1 & Type 2
|
Type 2
|
|
RCD
|
Type A
|
Type A+6mA d.c.
|
|
IP degree
|
IP65
|
IP65
|
|
Operating temperature
|
-25°C~+50°C
|
-25°C~+50°C
|
|
Relative humidity
|
5%RH~95%RH
|
5%RH~95%RH
|
|
Altitude
|
<2000m
|
<2000m
|
|
Static Power
|
<2W
|
<2W
|
|
Dimension
|
278mm(L)x81mm(D)
|
278mm(L)x81mm(D)
|
|
Standards
|
IEC/EN 62752
|
IEC/EN 62752
|
