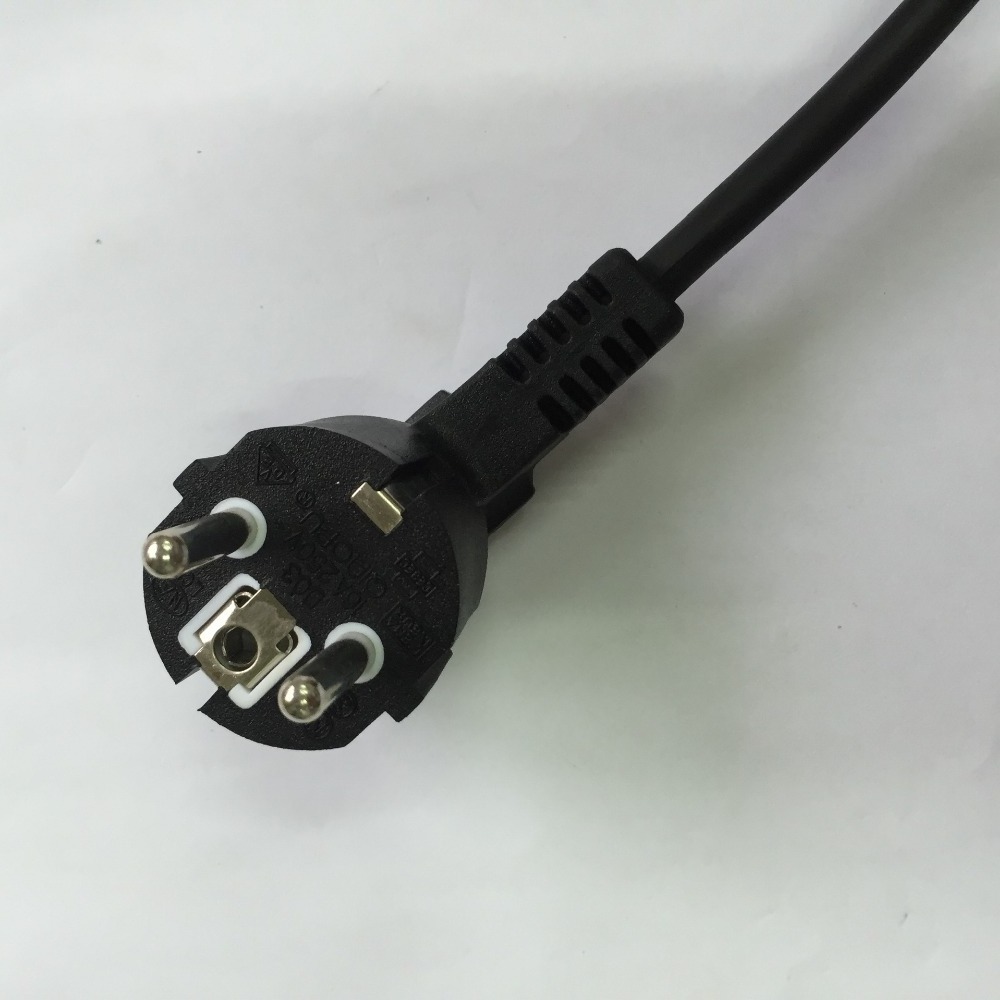

CEE 7/7 plug
To bridge the differences between German and French standards, the CEE 7/7 plug was developed. It is polarised to prevent the line and neutral connections from being reversed when used with a French CEE 7/5 socket, but allows polarity reversal when inserted into a German CEE 7/3 socket. The plug is rated at 16 A.
It has earthing clips on both sides to connect with the CEE 7/3 socket and a female contact to accept the earthing pin of the CEE 7/5 socket. Currently, appliances in many countries are sold with non-rewireable CEE 7/7 plugs attached, enabling use in all countries whose socket standards are based on either CEE 7/3 or CEE 7/5.
Specifications
|
Plug Standard
|
Indonesia 3P plug
|
|
Maximum Current rating
|
16A
|
|
Maximum Voltage
|
250V
|
|
Number of Poles and Wires
|
2 poles, 3 wires
|
|
Outer Mold Material
|
50P PVC
|
|
Blade Material
|
Nickel coated Brass
|
|
Flamability Rating
|
UL 94V-0
|
|
Color
|
Any color available
|
|
Cable length
|
Any length available
|
|
Temperature Rating
|
minus 40C though plus 75C
|
|
Approvals
|
Indonesia SNI/VDE
|
|
Environmental Certifications
|
RoHS, REACH
|
|
Testing
|
Hi-Pot (Dielectric Withstanding Voltage), Polarity (pinout) and Continuity
|
|
MOQ
|
2000pcs
|
|
Samples
|
Free samples
|
Available Opposite End Connectors
Available Wire Styles
|
Cord Type
|
Electrical Rating (Amps/Volts)
|
H03VV-F 3x0.5mm2
H03VV-F 3x0.75mm2
H05VV-F 3x0.75mm2
H05VV-F 3xl.0mm2
H05VV-F 3x1.5mm2
H05RR-F 3x0.75mm2
H05RR-F 3xl.0mm2
H05RR-F 3x1.5mm2
H05RN-F 3x0.75mm2
H05RN-F 3xl.0mm2
H07RN-F 3xl.0mm2
H07RN-F 3x1.5mm2
H03RT-H 3x0.75mm2
H03RT-H 3xl.0mm2
H03RT-H 3x1.5mm2
|
16/250
|
|
