Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Willita
-
Weight (KG):
-
6.8 KG
-
Marking Area:
-
60*60mm/100*100mm
-
Touch screen:
-
8-inch full color touch screen
-
Type:
-
Fiber laser marking machine
-
Voltage:
-
500W-1.2KW, AC220V 50HZ
-
Cooling way:
-
Air cooling
-
Marking speed:
-
<=7000mm/s
-
Repeat accuracy:
-
0.01mm
-
Marking depth:
-
<=2mm
-
Wavelength:
-
1064nm
-
Marking range:
-
60mm*60mm/100mm*100mm
-
Power:
-
20w/30w
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, LAS, PLT, JPG CAD CDR DWGPCX, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Willita
-
Weight (KG):
-
6.8 KG
-
Marking Area:
-
60*60mm/100*100mm
-
Touch screen:
-
8-inch full color touch screen
-
Type:
-
Fiber laser marking machine
-
Voltage:
-
500W-1.2KW, AC220V 50HZ
-
Cooling way:
-
Air cooling
-
Marking speed:
-
<=7000mm/s
-
Repeat accuracy:
-
0.01mm
-
Marking depth:
-
<=2mm
-
Wavelength:
-
1064nm
-
Marking range:
-
60mm*60mm/100mm*100mm
-
Power:
-
20w/30w
Product Description

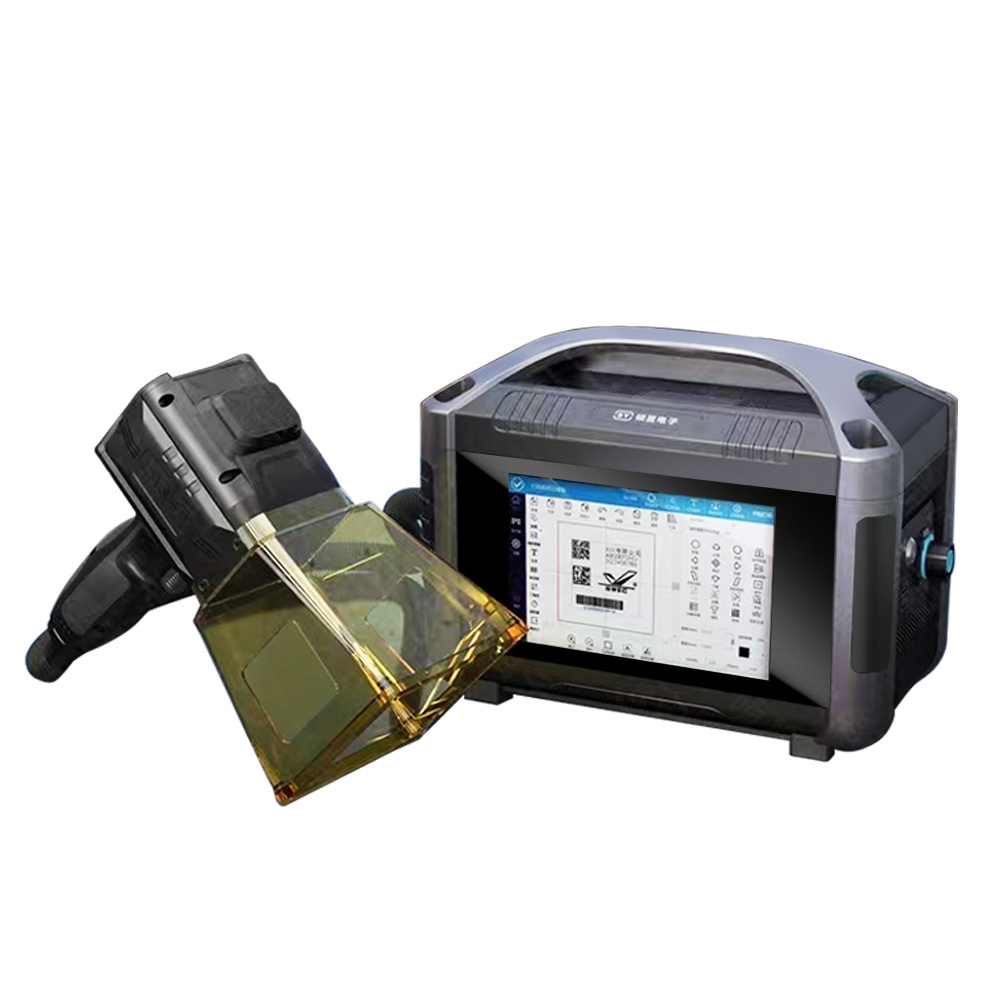

Handheld Portable Mini Fiber Laser Marking Machine For Metal Laser Etcher Printer 20w 30w Deep Engraving Laser Etching
Specification
|
Type
|
Hand-held Fiber Laser Marking Machine
|
|
Laser Power
|
20W/30W
|
|
Marking Speed
|
<=7000mm/min
|
|
Marking Range
|
60*60mm/100*100mm
|
|
Laser Wavelength
|
1064nm
|
|
Operation System
|
Linux
|
|
Accuracy
|
0.01mm
|
|
Line Width
|
0.03mm
|
|
Postioning mode
|
Red Light Focusing
|
|
Marking Line Type
|
Dot-matrix & vectorall-in-one machine
|
|
Languages
|
Chinese,English,Russia,Spanish,Korean,Japanese,Portuguese,Arabic，Turkish , etc
|
|
File Format
|
BMP,DXF,HPGL,JPEG,PLT
|
|
Barcode
|
ODE39,CODE128,CODE126,QR
|
|
Voltage
|
110V/220V AC
|
|
Working temperature
|
0-40℃
|
