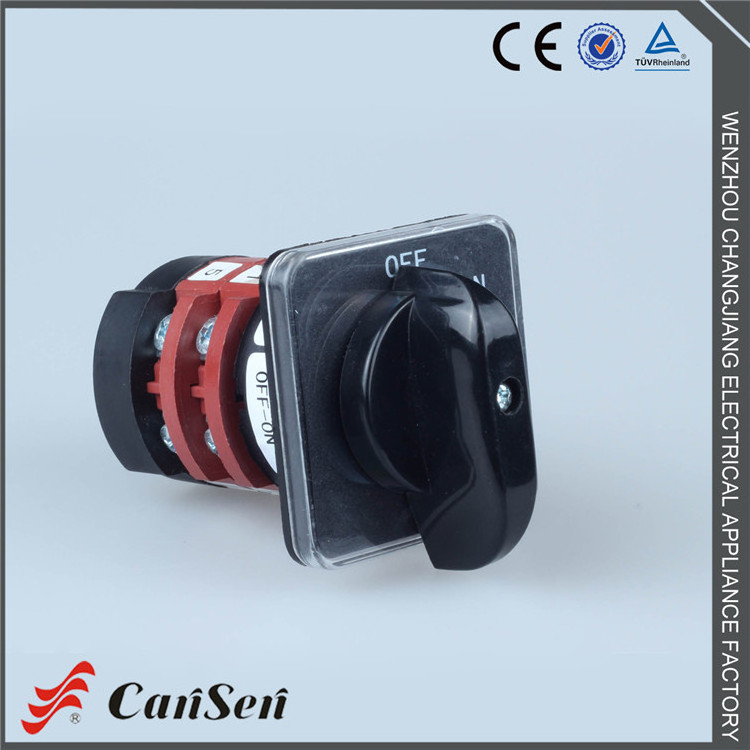

Cansen switch LW31B-16 OFF-ON 4Pole rotary cam switch control switchgear motor change the main circuit and the auxiliary circuit
Cansen switch LW31B-16 OFF-ON 4Pole rotary cam switch control switchgear motor change the main circuit and the auxiliary circuit
Cansen switch LW31B-16 OFF-ON 4Pole rotary cam switch control switchgear motor change the main circuit and the auxiliary circuit
Cansen switch LW31B-16 OFF-ON 4Pole rotary cam switch control switchgear motor change the main circuit and the auxiliary circuit
Cansen switch LW31B-16 OFF-ON 4Pole rotary cam switch control switchgear motor change the main circuit and the auxiliary circuit
Cansen switch LW31B-16 OFF-ON 4Pole rotary cam switch control switchgear motor change the main circuit and the auxiliary circuit
Cansen switch LW31B-16 OFF-ON 4Pole rotary cam switch control switchgear motor change the main circuit and the auxiliary circuit
Cansen switch LW31B-16 OFF-ON 4Pole rotary cam switch control switchgear motor change the main circuit and the auxiliary circuit

Cansen switch LW31B-16 OFF-ON 4Pole rotary cam switch control switchgear motor change the main circuit and the auxiliary circuit

FOB Reference Price: Get Latest Price
≥100 Pieces
US $2.02
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Cansen/OEM
Model Number:
LW31B-16
Max. Current:
16A
Mechanical Life:
100000,120/hour
Handle:
31B handle
Layer:
2
Pole:
4
Installation:
Plate
Certification:
ce

Quick Details

Whether the smart:
NO
Max. Voltage:
690V
Place of Origin:
Zhejiang, China
Brand Name:
Cansen/OEM
Model Number:
LW31B-16
Max. Current:
16A
Mechanical Life:
100000,120/hour
Handle:
31B handle
Layer:
2
Pole:
4
Installation:
Plate
Certification:
ce

Specification LW3-20
Rated thermal current   Ith A 20
Rated working voltage    Ue V 110 220 440
Rated working current      le / / /
AC-21A    A / / 20
AC-22A    A / / 16
DC-20    A / 20 /
Power
AC-23A    KW / 5 7.5
AC-3    KW / 4 5.5
AC-4    KW / 2.2 3
DC-23   KW 0.77 1.2 /

1.Products Introduction

LW31 sereies rotary switches applied to switchgeear and control of electric motors as well aw to change over of electric circuits,it is a good substitution for other cam switches.

2.Working Conditions

a. Ambient temperature DO NOT exceed 40℃, and the average temperature,measured over a period of 24 hours,

DO NOT exceed 35℃.

b.Ambient temperature should not be below -25℃.

c.Should not be isstalled above 2000m above sea level.

d.The humidity should not exceed 50% when the ambient temperature is 40℃ and higher humidity is allowed for lower temperature.

3.Installation Conditions

a. A clean environment is required

b.Please follow our manual

4.Order Procedure

When placing an order please specify the contact diagram of the product you require.The LW26 series rotary switch have the similar contact diagram as the other rotary switches like LW2D,LW5D,LW6D,LW8D,LW12,LW15,HZ5D and HZ25D.Our factory have published<The General Contact Diagram for Cansen Rotary Switches >Which will help you to specify the contact diagram.

In addition,please specify the current rating, mounting plate,handle type,color and quantityas well.

For instance:

When ordering 20A,rotary angle 60°, character code C,contact diagram code 5391, M1 plate, black R handle 20 unites. The order can be: LW26-20.6C5391/2A11R(M1R)20units.

Due to the update of the technologies, we reserve the righting of updating the catalogue without further notices.
