Quick Details
-
Brand Name:
-
Snow-Sea
-
Use:
-
FTTH
-
Warranty Time:
-
2 years
-
Network:
-
FTTH
-
Core capacity:
-
12 Port
-
Adpator:
-
SC FC ST LC
-
Size:
-
330*220*25(mm)
-
Material:
-
PC Plastic
-
Application:
-
for patch panel, ODF, rack and so on
-
Accessories:
-
12 core pigtail and adapter
Quick Details
-
Type:
-
Racks & Enclosure
-
Model Number:
-
Fiber Optic Splice Tray
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Snow-Sea
-
Use:
-
FTTH
-
Warranty Time:
-
2 years
-
Network:
-
FTTH
-
Core capacity:
-
12 Port
-
Adpator:
-
SC FC ST LC
-
Size:
-
330*220*25(mm)
-
Material:
-
PC Plastic
-
Application:
-
for patch panel, ODF, rack and so on
-
Accessories:
-
12 core pigtail and adapter

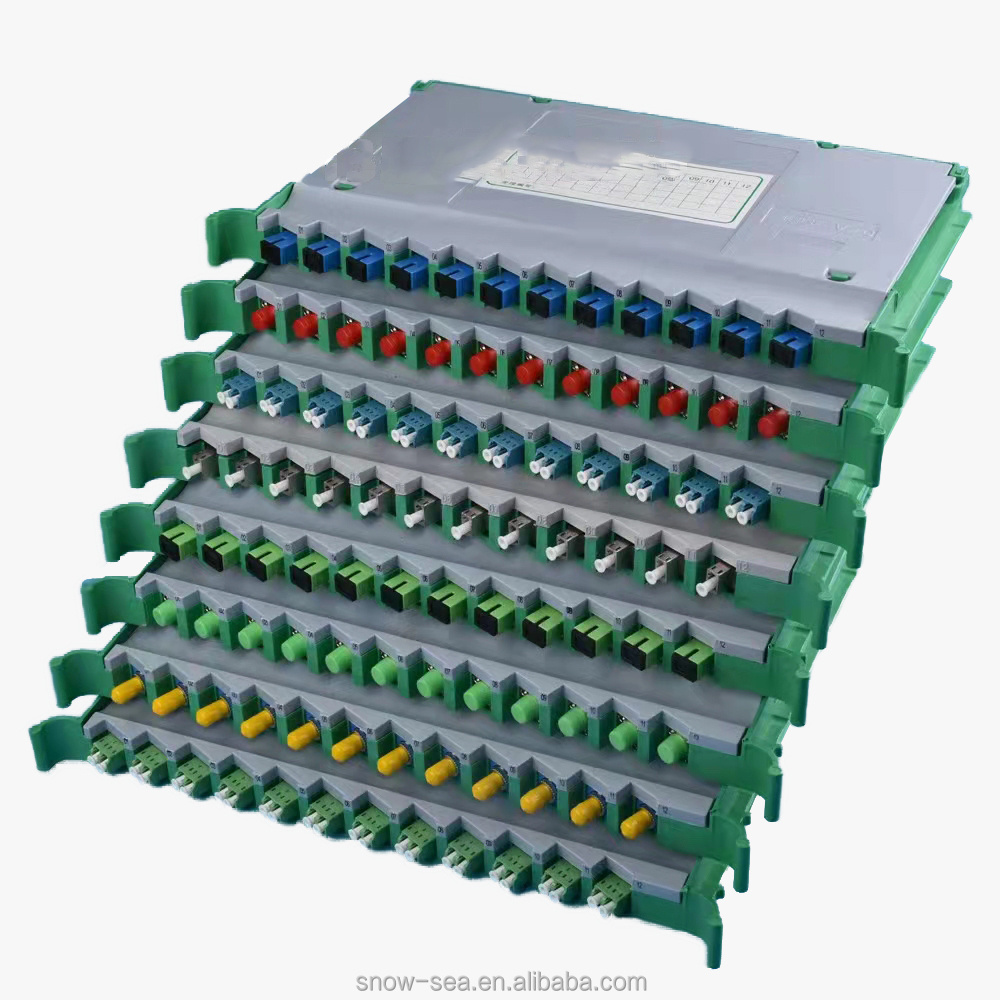

12 Port Fiber Optic Splice Tray with Pigtail and Adapter for 19'' Rack Wall Mount ODF
Description
ODF includes fiber distribution devices, fiber splicing devices and fiber storage devices. It connects fiber cables and fiber telecom equipment. It has the functions of protecting fiber cables, splicing fiber and storing extra pigtails.
Features
Used for patch panel, ODF, rack and so on.
19 inches 1/2/3/4U standard installation.
Two-layer structure (under layer is for pigtails connection with adaptor and storage.)
Several capacity: 12, 24, 36, 48, 72, 96, splices.
Several adapters can be installed: FC, SC, ST, duplex LC
Suitable for ribbon and bunchy fiber optic cable.
Specification
|
Optical Performance |
Single Mode |
Multi Mode |
|||
|
Insertion Loss(dB) |
≤0.2 |
≤0.3 |
|||
|
Return Loss(dB) |
≥50 (PC) |
N/A |
|||
|
≥60 (APC) |
|||||
|
Repeatability(dB) |
≤0.1dB |
||||
|
Durability(dB) |
≤0.2dB Typical Change, 1000 Matings |
||||
|
Tensile Strength(N) |
100 |
||||
|
Operating Temperature(°C) |
-40~+80 |
||||
|
Storage Temperature(°C) |
-40~+85 |
||||
|
Endface Geometry |
|||||
|
Parameter |
2.5um Ferrule |
1.25 um Ferrule |
|||
|
PC |
APC |
PC |
APC |
||
|
Radius of Curvature(mm) |
10~25 |
5~15 |
7~15 |
5~15 |
|
|
Apex Offset(mm) |
0~50 |
0~50 |
0~50 |
0~50 |
|
|
Fiber Height(nm) |
±50 |
±50 |
±50 |
±50 |
|
|
Angle(°) |
---- |
7.7-8.3 |
---- |
7.7-8.3 |
|
Application
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
