Quick Details
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
Liteputer
-
Product name:
-
DX-1227
-
Input Voltage:
-
AC 100-240V
-
Output:
-
12 channel leading-edge dimming
-
DMX channel:
-
12
-
Capacity:
-
20A per channel, total 240A
-
Features:
-
Output can be limited from 50-100% for overload protection
-
Dimension:
-
482(W) X 132 (H) X 315 (D) mm
-
Weight:
-
13.5kg
-
Color:
-
Black
-
Protocol:
-
DMX
Quick Details
-
Warranty(Year):
-
1
-
Type:
-
MANUAL SWITCH
-
Max. Load Power:
-
57600W
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
Liteputer
-
Product name:
-
DX-1227
-
Input Voltage:
-
AC 100-240V
-
Output:
-
12 channel leading-edge dimming
-
DMX channel:
-
12
-
Capacity:
-
20A per channel, total 240A
-
Features:
-
Output can be limited from 50-100% for overload protection
-
Dimension:
-
482(W) X 132 (H) X 315 (D) mm
-
Weight:
-
13.5kg
-
Color:
-
Black
-
Protocol:
-
DMX

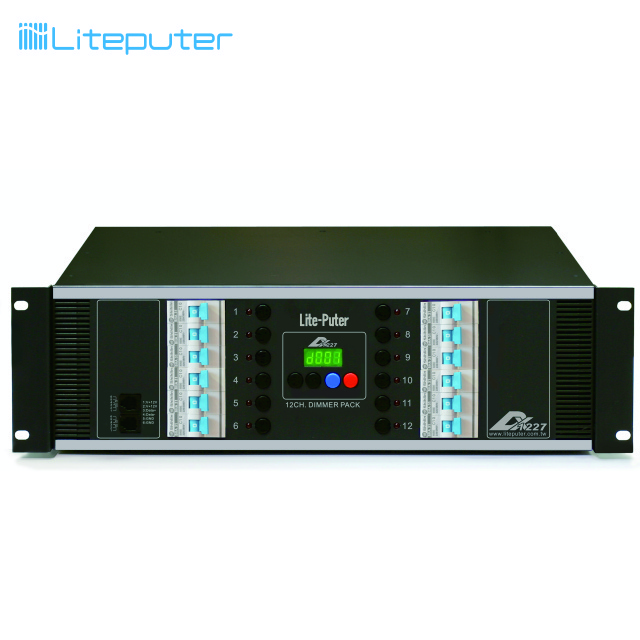

12 Channels DMX Dimmer Pack (terminal type and harting type are available)
Features:
- Automatic frequency sensor can detect power frequency (45Hz ~ 63Hz) in different areas and stabilizes the dimming output.
- Output can be limited from 50% to 100% for overload protection.
- The thermo-controlled fan will be activated automatically when the temperature is over 45°C.
- The intelligent thermo-protection will cease the output when over 85°C and restart output when below 65°C.
- Self-testing function to test without a console.
- Each channel can be set as dimming or non-dimming.
- Dimming level and internal temperature monitor.
- Warm up function to protect the loads. (warm up setting from 0~6%)
- Each channel is equipped with a N.F.B. to protect the loads.
Specifications:
|
Power |
AC 90 -240V, 3ψ4w, 45-63Hz |
|
Protocol |
DMX-512 |
|
Capacity |
DX-1227: 12CH, 20A per channel, total: 240A |
|
Signal Connector |
XLR 5PIN/ 6P4C RJ11 |
|
Installation |
19’’3U standard rack |
|
Dimension |
482(W)*132(H)*315(D)mm |
|
Weight |
13.5Kg |
Lite-Puter designs various lighting controller, driver and dimmer pack for you.
With cutting-edged technology, R&D team and 40-year knowhow in professional stage and architectural lighting control field, Lite-Puter can meet your special order request in the most efficient way.
We can provide the following services:
n System design
n Customized circuit diagrams planning
n PCB layout
n Software design
n Small-scale production
n Reliable test for all manufactured item
n Mass production
