- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
WNK
-
Model Number:
-
WNK-SlS
-
Product name:
-
304 Stainless Steel 0-10V Smart Water Level Switch With RS485
-
Output signal:
-
0/4-20mA or20-4/0mA,0-5/10V or10/5-0V
-
Supply voltage:
-
12-30V DC
-
Applicable media:
-
Liquid, Gas, Steam
-
Housing material:
-
304 stainless steel
-
Pressure range:
-
0-100M H2O
-
Accuracy:
-
0.5%FS
-
Switch type:
-
NO/NC
-
Keywords:
-
0-10V RS485 Level Switch For Oil Liquid Support Modbus Communication
-
Protection class:
-
IP65
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WNK
-
Model Number:
-
WNK-SlS
-
Product name:
-
304 Stainless Steel 0-10V Smart Water Level Switch With RS485
-
Output signal:
-
0/4-20mA or20-4/0mA,0-5/10V or10/5-0V
-
Supply voltage:
-
12-30V DC
-
Applicable media:
-
Liquid, Gas, Steam
-
Housing material:
-
304 stainless steel
-
Pressure range:
-
0-100M H2O
-
Accuracy:
-
0.5%FS
-
Switch type:
-
NO/NC
-
Keywords:
-
0-10V RS485 Level Switch For Oil Liquid Support Modbus Communication
-
Protection class:
-
IP65
Product Description

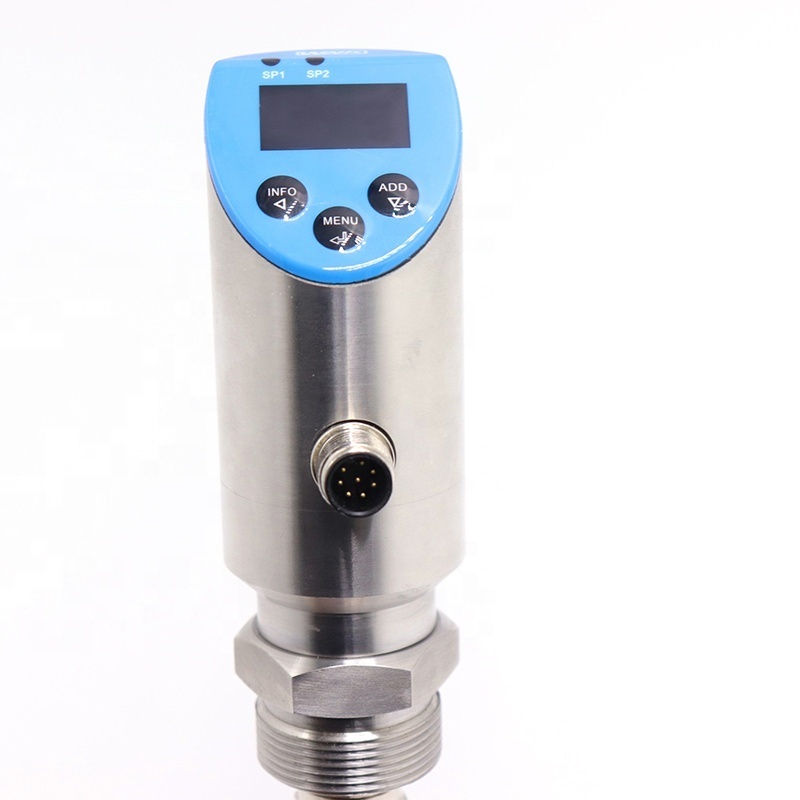

304 Stainless Steel 0-10V Smart Water Level Switch With RS485
Introduction -NO NC electronic level transmitter switch with PNP/NPN Switching
The level switch SLS is designed for level monitoring and measurement of liquid and oil media. It is applied to general industry such as tank, case, liquid cell and deep well. It is level switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.
Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display
1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.Product Spec
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.Product Spec
|
0-10V RS485 Level Switch For Oil Liquid Support Modbus Communication
|
|
|
|
Applicable media
|
Liquid, Oil
|
|
|
Measuring
|
0-200M
|
|
|
Output Singal
|
2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
|
|
|
|
2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
|
|
|
Accuracy
|
0.5%FS
|
|
|
Stability
|
±0.3% FS/year
|
|
|
Switch current
|
1.0A(Max.)
|
|
|
Switching type
|
Normally open / closed (settable)
|
|
|
Display
|
OLED (Optional)
|
|
|
Housing material
|
304 stainless steel
|
|
|
Mechanical connection
|
M20×1.5; 1/2-18NPT, 1/4NPT, Customize
|
|
|
Storge temperature
|
-40~80℃
|
|
|
Process temperature
|
-30~80℃
|
|
|
Protection class
|
IP65
|
|
